HTCSEMIDatasheet (PDF)

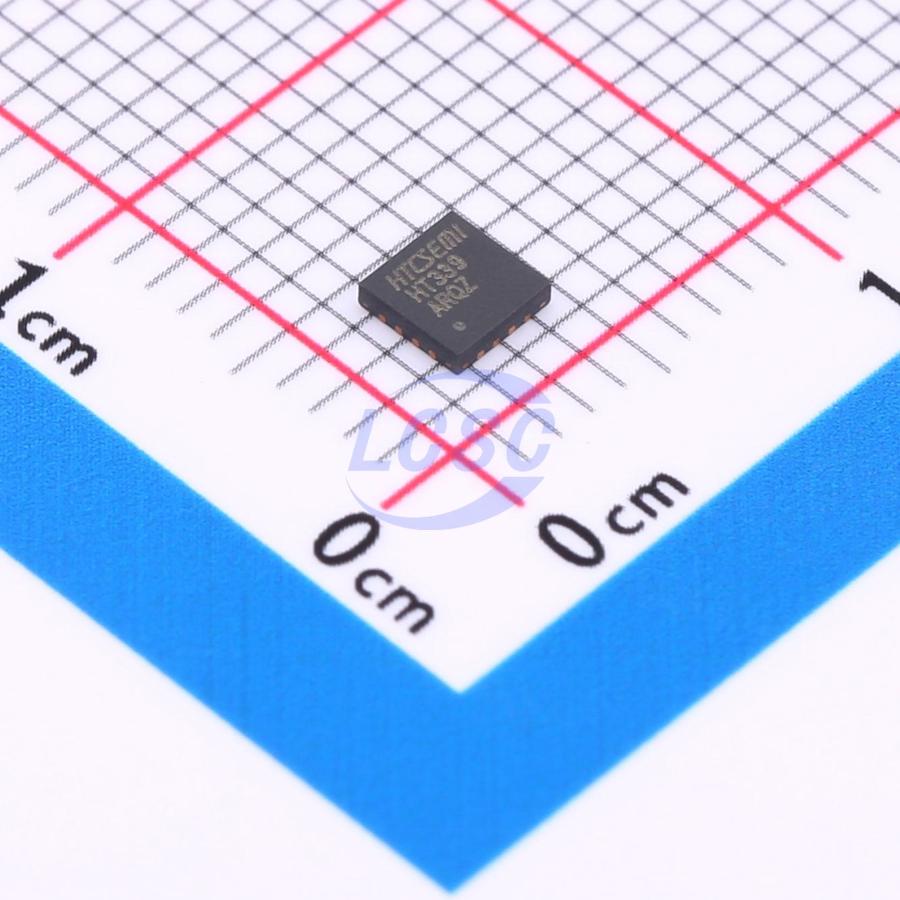

HT339ARQZ
2mV 25nA 4 QFN16(3x3) Linear Comparators RoHS
QFN16(3x3)ROHS CompliantActive
Single Supply Quad Comparators
- Manufacturer
- HTCSEMI
- Manufacturer part #
- HT339ARQZ
- Store part #
- C7431208
- Package / case
- QFN16(3x3)
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C7431208
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.05 | ₹110.25 |
| 50+ | ₹17.32 | ₹866.00 |
| 150+ | ₹15.29 | ₹2,293.50 |
| 500+ | ₹12.75 | ₹6,375.00 |
| 3,000+ | ₹11.63 | ₹34,890.00 |
| 6,000+ | ₹10.95 | ₹65,700.00 |
5 × ₹22.05
₹110.25
excl. GST
₹130.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT339ARQZ
₹110.25 for 5 + GST
Specifications
- Features
- ESD protection
- Dual Supply
- 1.5V~18V;-18V~-1.5V
- Vos - Input Offset Voltage
- 2mV
- Quiescent Current
- 800uA
- Ib - Input Bias Current
- 25nA
- Output Mode
- TTL;CMOS
- Number of Channels
- 4
- Propagation Delay Time
- 300ns
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- 0℃~+70℃
- Single Supply
- 3V~36V
- Response Time (tr)
- 1300us
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.168 g
Overview
These comparators are designed for use in level detection, low- level sensing and memory applications in consumer, automotive, and industrial electronic applications.
Applications
- level detection
- low- level sensing
- memory applications in consumer, automotive, and industrial electronic applications
Key features
- Single Supply Operation: 3.0V to 36V
- Split Supply Operation: ±1.5V to ±18V
- Low Input Bias Current: 25nA (Typ)
- Low Input Offset Current: ±5.0nA (Typ)
- Low Input Offset Voltage
- Input Common Mode Voltage Range to GND
- Low Output Saturation Voltage: 130mV (Typ) @ 4.0mA
- TTL and CMOS Compatible
- ESD Clamps on the Inputs Increase Reliability without Affecting Device Operation
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q100 Qualified and PPAP Capable
- These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant
