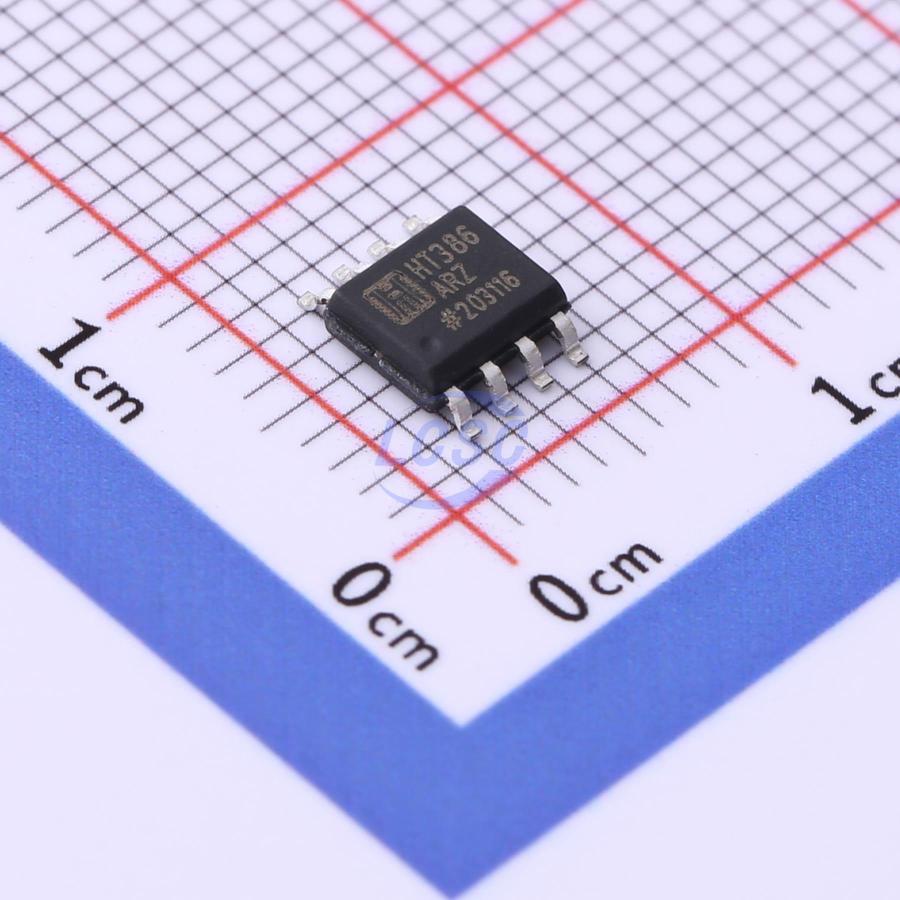

HT386ARZ
8mA 4V~12V 1-Channel SOP-8 Audio Amplifiers
Low Voltage Audio Power Amplifier
- Manufacturer
- HTCSEMI
- Manufacturer part #
- HT386ARZ
- Store part #
- C3019551
- Package / case
- SOP-8
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,595 in stock
#C3019551
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹28.25 | ₹28.25 |
| 10+ | ₹22.97 | ₹229.70 |
| 30+ | ₹20.69 | ₹620.70 |
| 100+ | ₹17.87 | ₹1,787.00 |
| 500+ | ₹16.60 | ₹8,300.00 |
| 1,000+ | ₹15.23 | ₹15,230.00 |
1 × ₹28.25
₹28.25
excl. GST
₹33.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HT386ARZ
₹28.25 for 1 + GST
Specifications
- Quiescent Current
- 8mA
- Voltage - Supply
- 4V~12V
- Features
- ESD protection
- Operating Temperature
- 0℃~+70℃
- Number of Inputs
- 2 Single-Ended Inputs
- Speaker Channels
- 1-Channel
- Power Supply Rejection Ratio (PSRR)
- 45dB
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
The HT386A is a power amplifier designed for use in low voltage consumer applications. The gain is internally set to 20 to keep external part count low, but the addition of an external resistor and capacitor between pins 1 and 8 will increase the gain to any value up to 200. The inputs are ground referenced while the output is automatically biased to one half the supply voltage. The quiescent power drain is only 24 milliwatts when operating from a 6 volt supply, making the HT386A ideal for battery operation.
Key features
- Battery Operation
- Minimum External Parts
- Wide Supply Voltage Range: 4 V - 12 V
- Low Quiescent Current Drain: 4 mA
- Voltage Gains from 20 to 200
- Ground Referenced Input
- Self-Centering Output Quiescent Voltage
- Low Distortion
- Eight Pin Dual-In-Line Package
