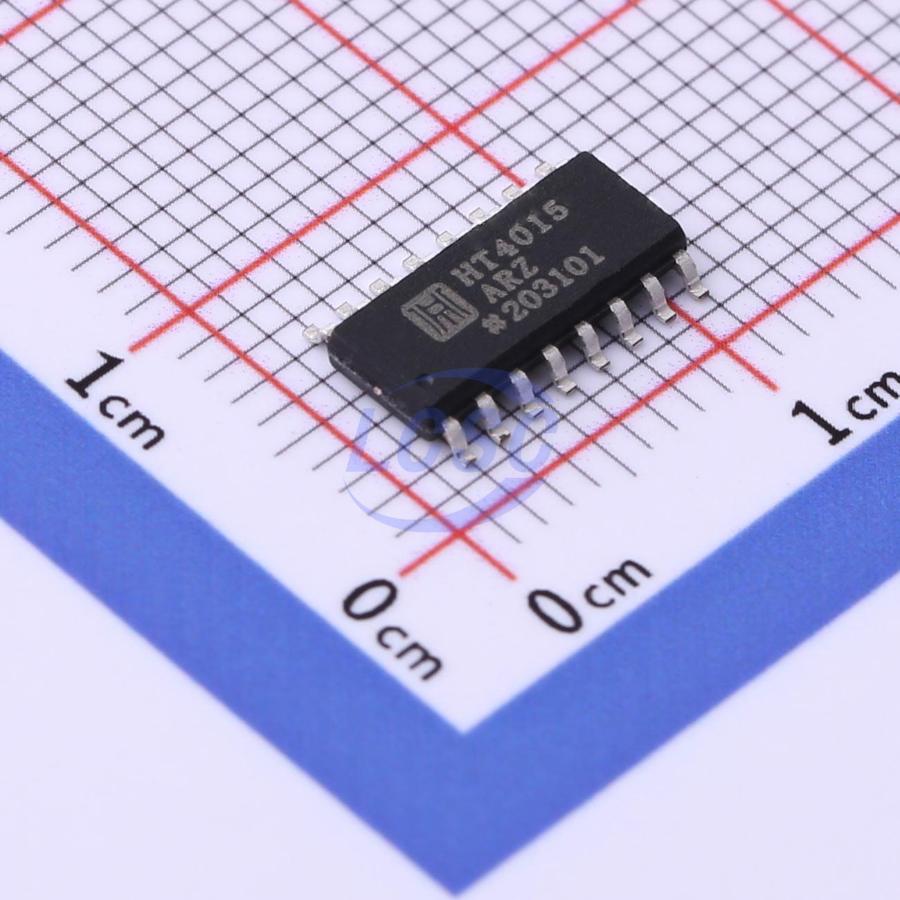

HT4015ARZ

The HT4015A dual 4−bit static shift register is constructed with MOS P−Channel and N−Channel enhancement mode devices in a single monolithic structure. It consists of two identical, independent 4−state serial−input/parallel−output registers. Each register has independent Clock and Reset inputs with a single serial Data input. The register states are type D master−slave flip−flops. Data is shifted from one stage to the next during the positive−going clock transition. Each register can be cleared when a high level is applied on the Reset line. These complementary MOS shift registers find primary use in buffer storage and serial−to−parallel conversion where low power dissipation and/or noise immunity is desired.

Key features

• Diode Protection on All Inputs
• Supply Voltage Range = 3.0 Vdc to 18 Vdc
• Logic Edge−Clocked Flip−Flop Design
• Logic State is Retained Indefinitely with Clock Level either High or Low; Information is Transferred to the Output only on the Positivegoing Edge of the Clock Pulse
• Capable of Driving Two Low−power TTL Loads or One Low−power Schottky TTL Load Over the Rated Temperature Range
• NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• This Device is Pb−Free and is RoHS Compliant
