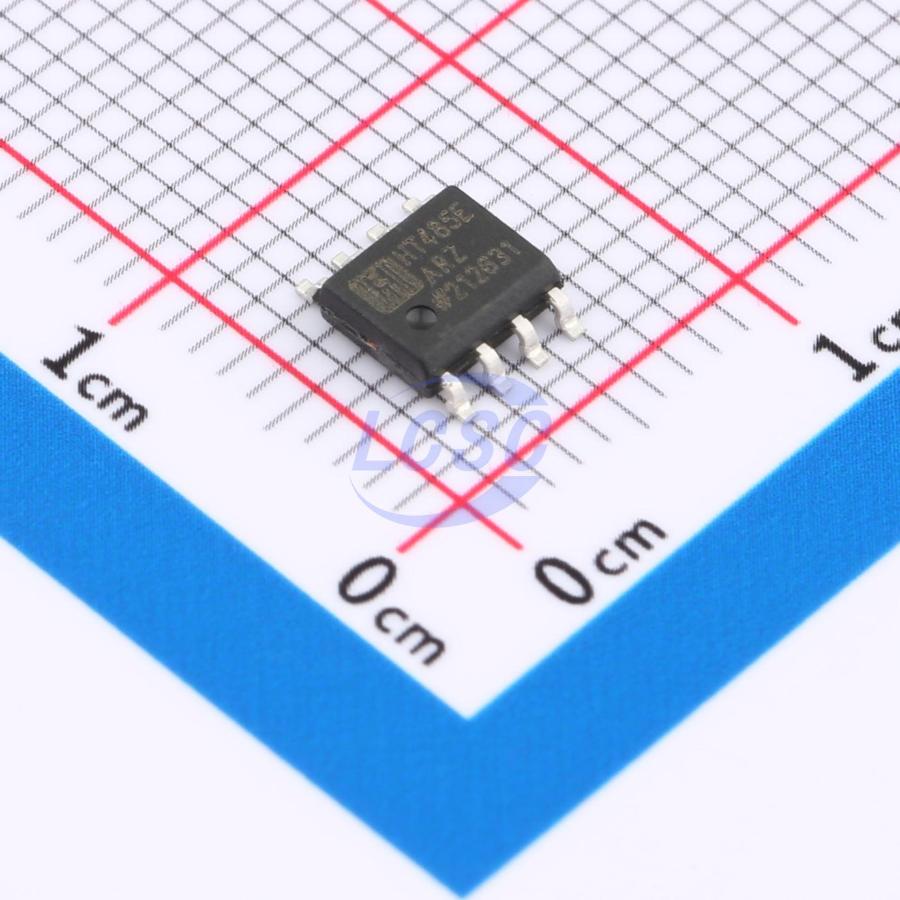

HT485EARZ
5V Transceiver 2.5Mbps 32 SOP-8 Drivers, Receivers, Transceivers
SOP-8RoHSActive
Low-Power, Slew-Rate-Limited RS-485/RS-422 Transceivers
- Manufacturer
- HTCSEMI
- Manufacturer part #
- HT485EARZ
- Store part #
- C2834462
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,350 in stock
#C2834462
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹44.94 | ₹44.94 |
| 10+ | ₹35.58 | ₹355.80 |
| 30+ | ₹31.55 | ₹946.50 |
| 100+ | ₹26.55 | ₹2,655.00 |
| 500+ | ₹24.32 | ₹12,160.00 |
| 1,000+ | ₹19.71 | ₹19,710.00 |
1 × ₹44.94
₹44.94
excl. GST
₹53.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HT485EARZ
₹44.94 for 1 + GST
Specifications
- Voltage - Supply
- 5V
- Type
- Transceiver
- Data Rate
- 2.5Mbps
- Number of Nodes
- 32
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Overcurrent Protection;Thermal shutdown protection
- Number of Receivers
- 1
- Quiescent Supply Current
- 300uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.241 g
Overview
HT485E is a low-power transceiver for RS-485 and RS-422 communications. The IC contains one driver and one receiver. The MAX485 driver slew rate is not limited, allowing data transmission at up to 2.5Mbps. These transceivers consume 120μA to 500μA of supply current when unloaded or fully loaded with the driver disabled. All devices operate from a single 5V supply. The driver features short-circuit current limiting and is protected against excessive power dissipation by a thermal shutdown circuit that places the driver outputs in a high-impedance state. The receiver inputs feature a failsafe design that guarantees a logic-high output if the inputs are open-circuited. The HT485E is designed for half-duplex applications.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT485ARZ#C2834461HTCSEMI · SOP-8 | HTCSEMI | SOP-8 | 902 | ₹36.95 · 902 in stock | View |
 | HT485EBRZ#C2937061HTCSEMI · SOP-8 | HTCSEMI | SOP-8 | 35 | ₹51.87 · 35 in stock | View |
 | HT8483EARZ#C2937064HTCSEMI · SOP-8 | HTCSEMI | SOP-8 | 973 | ₹95.84 · 973 in stock | View |
 | HT8481EARZ#C2937066HTCSEMI · SOP-8 | HTCSEMI | SOP-8 | 910 | ₹33.59 · 910 in stock | View |
 | HT3082EARZ#C2960963HTCSEMI · SOP-8 | HTCSEMI | SOP-8 | 335 | ₹40.29 · 335 in stock | View |
