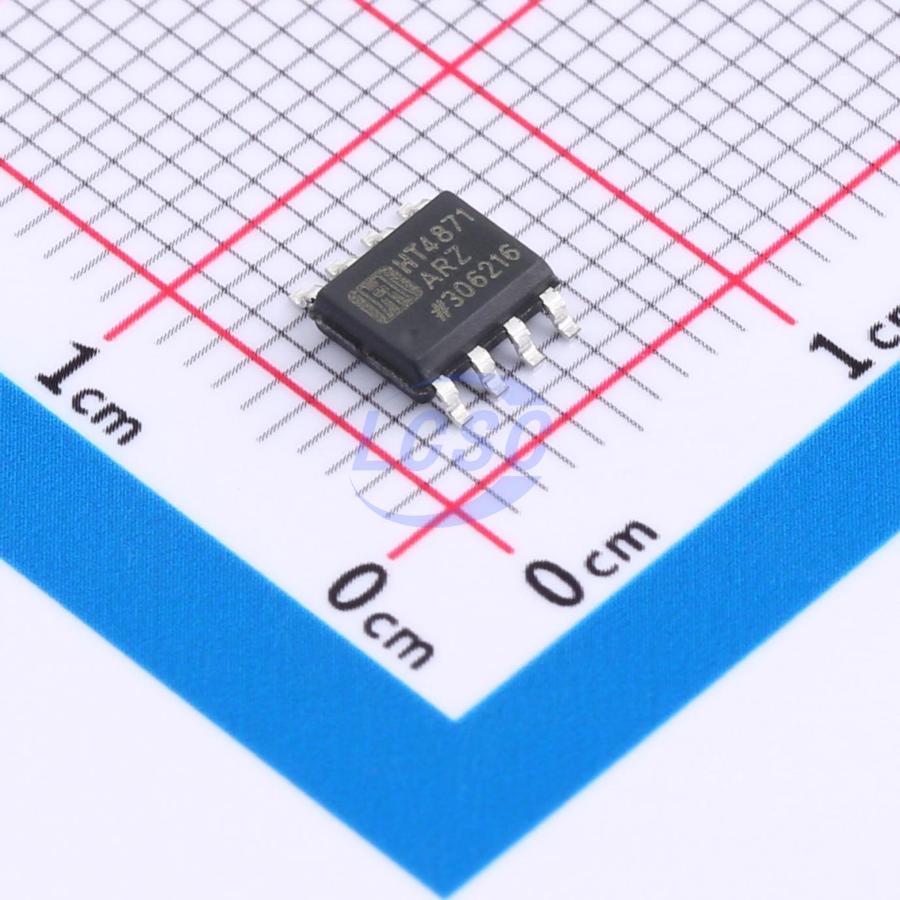

HT4871ARZ
6.5mA 2V~5.5V 1-Channel 1.5Wx1@8Ω SOP-8 Audio Amplifiers
3W Audio Power Amplifier with Shutdown Mode
- Manufacturer
- HTCSEMI
- Manufacturer part #
- HT4871ARZ
- Store part #
- C2898741
- Package / case
- SOP-8
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,390 in stock
#C2898741
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.62 | ₹143.10 |
| 50+ | ₹22.61 | ₹1,130.50 |
| 150+ | ₹20.03 | ₹3,004.50 |
| 500+ | ₹16.82 | ₹8,410.00 |
| 2,500+ | ₹15.39 | ₹38,475.00 |
| 5,000+ | ₹14.53 | ₹72,650.00 |
5 × ₹28.62
₹143.10
excl. GST
₹168.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HT4871ARZ
₹143.10 for 5 + GST
Specifications
- Quiescent Current
- 6.5mA
- Voltage - Supply
- 2V~5.5V
- Features
- Analog voltage gain;Enable/shutdown function;ESD protection
- Total Harmonic Distortion + Noise (THD+N)
- 0.25%
- Operating Temperature
- -40℃~+85℃
- Speaker Channels
- 1-Channel
- Output Power
- 1.5Wx1@8Ω
- Power Supply Rejection Ratio (PSRR)
- 60dB
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.198 g
Overview
The HT4871 is a mono bridged audio power amplifier capable of delivering 3W of continuous average power into a 3Ω load with less than 10% THD when powered by a 5V power supply. To conserve power in portable applications, the HT4871's micropower shutdown mode (Δ[lQ = 0.6μA, typ) is activated when VDD is applied to the SHUTDOWN pin. Boomer audio power amplifiers are designed specifically to provide high power, high fidelity audio output. They require few external components and operate on low supply voltages from 2.0V to 5.5V. Since the HT4871 does not require output coupling capacitors, bootstrap capacitors, or snubber networks, it is ideally suited for low-power portable systems that require minimum volume and weight. Additional HT4871 features include thermal shutdown protection, unity-gain stability, and external gain set.
Applications
- Portable Computers
- Desktop Computers
- Low Voltage Audio Systems
Key features
- No Output Coupling Capacitors, Bootstrap Capacitors, or Snubber Circuits Required
- Unity-gain Stable
- WSON, VSSOP, SOIC, or PDIP Packaging
- External Gain Configuration Capability
- Pin Compatible with the LM4861
