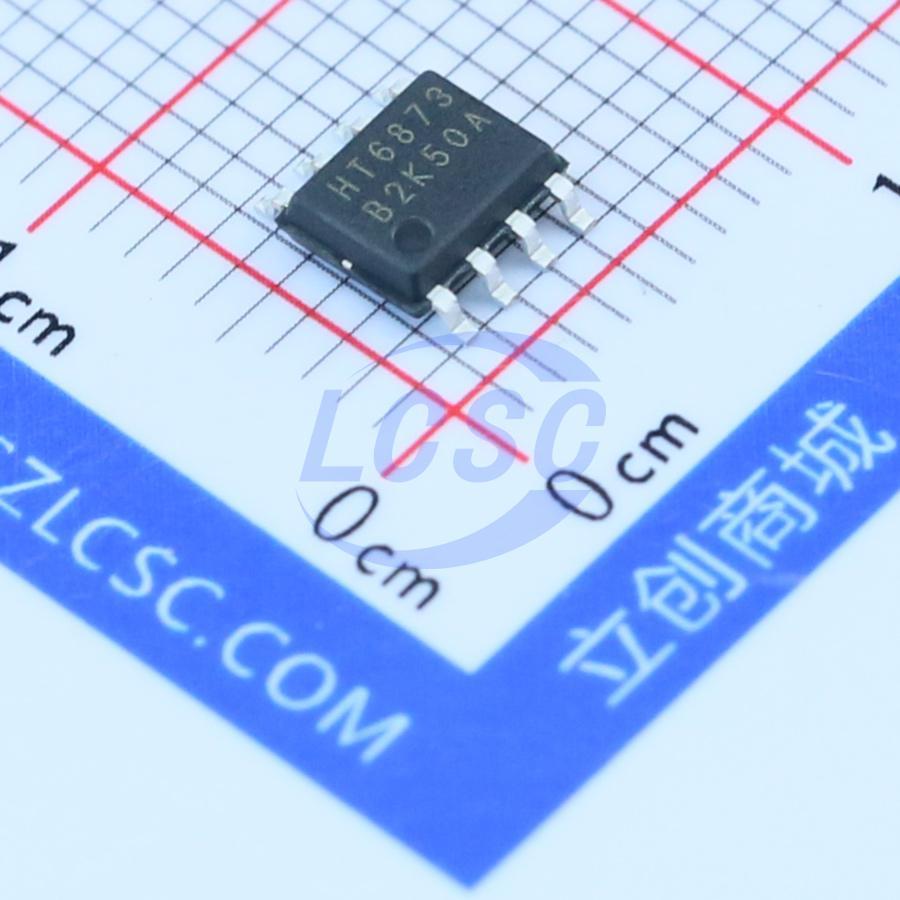

HT6873B5SPNR

HT6873 is a high-fidelity, ultra-low-EMI, monaural filter-less Class D audio power amplifier with Anti-Clipping Function. Under 5V supply, 10% THD+N, and 4Ω load conditions, it delivers 3.5W output power, maintaining high efficiency across various audio terminal applications while providing the high-fidelity, low-noise performance of a Class AB amplifier. The AROC radiation and conducted interference suppression circuit gives HT6873 excellent full-bandwidth low-EMI performance. With no auxiliary filter design and a 20cm speaker output cable, the radiation level is well below FCC Part15 Class B standards. HT6873's Anti-Clipping Function detects and suppresses output clipping distortion (audio breakup) caused by excessive music or voice signal levels or battery voltage drops, significantly improving audio quality, delivering a comfortable listening experience, and protecting speakers from overload damage. To address different requirements, the Anti-Clipping Function offers two modes — ACF-1 and ACF-2 — corresponding to approximately 3% and 10% maximum THD+N respectively, and the IC also supports ACF-Off mode. HT6873 requires no output filter network. The minimal external component count saves system space and cost, making it an ideal choice for portable applications. In addition, HT6873's built-in shutdown function minimizes standby current, and it integrates over-current protection, over-temperature protection, and under-voltage fault protection.

Applications

• Bluetooth/Wi-Fi Speakers
• Portable Speakers
• Smart Speakers
• Smart Home
• Sound Bars
• Docking Stations
• PC Audio
• Bluetooth/Wi-Fi Speakers
• Portable/USB Speakers
• Smart Speakers
• Smart Home
• iPad/iPhone/iPod Docking
• Sound Bars

Key features

• Patented technology (EDMA) to reduce the internal Rdson and heat loss, increase the output power
• Excellent EMI Suppression Performance
• Using Patented technology (AROC, Active edge Ringing and Overshoot Control circuitry)
• The emission level is highly lower than FCC Part15 Class B standard
• Without interference to FM radio, CMMB, GSM, CDMA, Bluetooth and any other sensitive modules with different bands
• The difficulty of system design is reduced
• THD + N = 0.1%, RL = 4Ω, P0 = 1W, f = 1kHz
• Low noise, High SNR
• Anti-Clipping Function (ACF)
• Excellent Click-Pop Noise reduction function
• Low Shutdown Current, 0.1μA
• Filter-less Modulation, Eliminating Output Filter
• Over Current Protection, Thermal Protection, Low voltage malfunction prevention function included
• Pb-Free Packages, SOP8, ESOP8
• Patented EDMA technology to reduce internal Rdson and heat loss, significantly improving output power and product reliability
• Excellent full-bandwidth EMI suppression performance
• Proprietary active edge control patent (AROC, Active edge Ringing and Overshoot Control circuitry)
• Emission level well below FCC Part15 Class B standard
• No interference to sensitive wireless communication modules across different frequency bands, including FM, CMMB, GSM, CDMA, and Bluetooth
• Reduced radiated and conducted interference, lowering system design complexity
• THD + N = 0.1%, RL = 4Ω, P0 = 1W, f = 1kHz
• Ultra-low noise, High SNR
• Anti-Clipping Function (ACF)
• Excellent Click-Pop noise suppression
• Low Shutdown Current: 0.1μA
• Filter-less digital modulation, direct speaker drive
• Over-current, over-temperature, and under-voltage protection
• Pb-free and halogen-free green packages, SOP8, ESOP8
