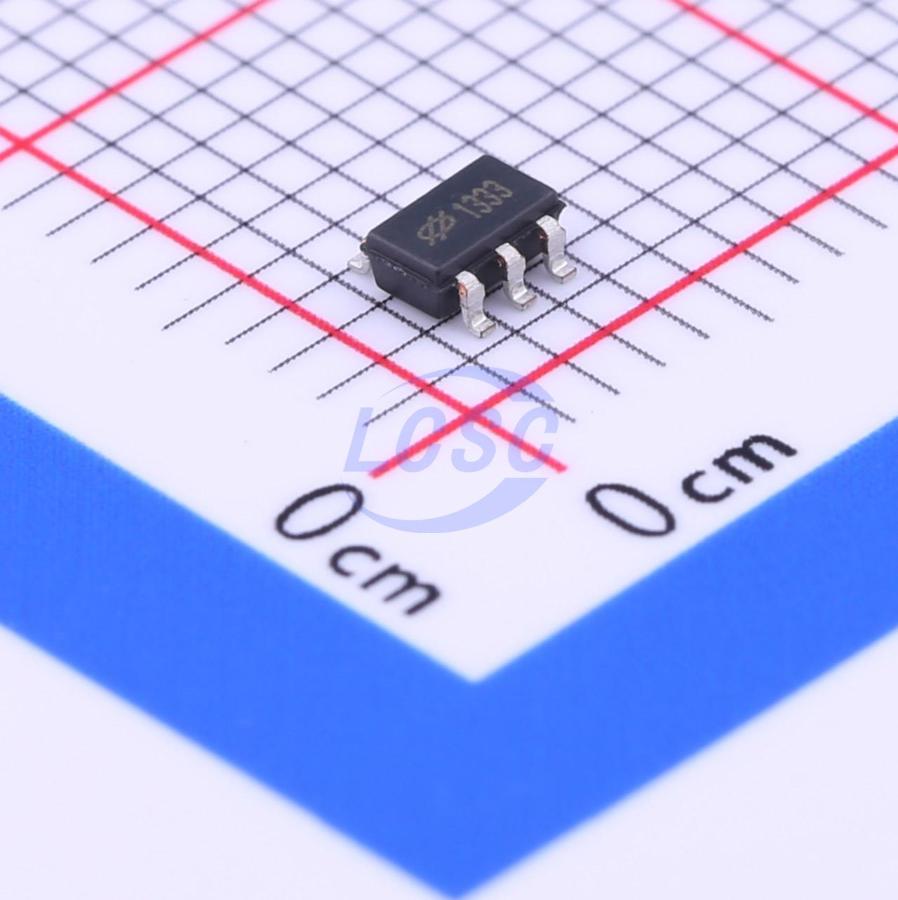

HT7133-3
Linear Voltage Regulator IC Positive Fixed 1 Output 30mA SOT-23-5
SOT-23-5RoHSActive
30mA low-power LDO
- Manufacturer
- HOLTEK
- Manufacturer part #
- HT7133-3
- Store part #
- C259595
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,680 in stock
#C259595
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.76 | ₹93.80 |
| 50+ | ₹14.80 | ₹740.00 |
| 150+ | ₹12.82 | ₹1,923.00 |
| 500+ | ₹11.34 | ₹5,670.00 |
| 3,000+ | ₹10.15 | ₹30,450.00 |
| 6,000+ | ₹9.55 | ₹57,300.00 |
5 × ₹18.76
₹93.80
excl. GST
₹110.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT7133-3
₹93.80 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 30mA
- Features
- Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
The HT71xx-3 series is a group of three-terminal, low-power, high-voltage regulators implemented in CMOS technology. The allowable input voltage can be as high as 30V. Several fixed output voltages are available, ranging from 2.1V to 5.0V. CMOS technology ensures low dropout voltage and low quiescent current characteristics. Although primarily designed as fixed voltage regulators, these ICs can be combined with external components to achieve variable voltage and current outputs.
Applications
- Battery-powered devices
- Communication equipment
- Audio/video devices
Key features
- Low power consumption
- Low dropout voltage
- Low temperature coefficient
- Quiescent current 1μA
- High input voltage (up to 30V)
- Output voltage accuracy: ±2%
- Package types: 3-pin SOT89, 5-pin SOT23
