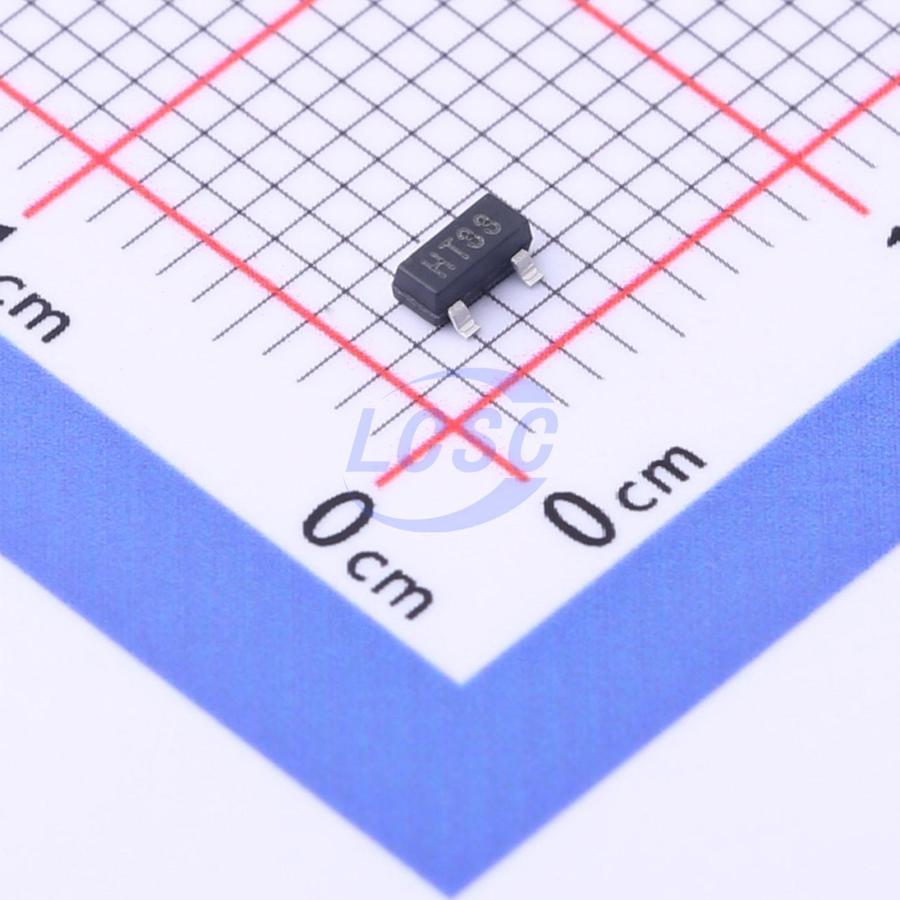

HT7133H23
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-23-3
SOT-23-3ROHS CompliantActive
100mA LOW POWER LDO
- Manufacturer
- hengjiaxing
- Manufacturer part #
- HT7133H23
- Store part #
- C2984957
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,340 in stock
#C2984957
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.78 | ₹87.80 |
| 100+ | ₹7.06 | ₹706.00 |
| 300+ | ₹6.20 | ₹1,860.00 |
| 3,000+ | ₹5.00 | ₹15,000.00 |
| 6,000+ | ₹4.48 | ₹26,880.00 |
| 9,000+ | ₹4.23 | ₹38,070.00 |
10 × ₹8.78
₹87.80
excl. GST
₹103.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT7133H23
₹87.80 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 30V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.033 g
Overview
HX 71xx(H) is a low dropout linear regulator using CMOS technology. Maximum output current is 100mA with a maximum allowable input voltage of 30V. Several fixed output voltage options are available, ranging from 2.5V to 5.0V. CMOS technology ensures low dropout voltage and low quiescent current characteristics.
Applications
- Battery-powered devices
- Communication equipment
- Audio/video devices
Key features
- Low power consumption
- Low dropout voltage
- Low temperature coefficient
- Maximum input voltage: 30V
- Typical quiescent current: 2uA
- Maximum output current: 100mA
- Output voltage accuracy: ±2%
- Package types: SOT23-3, TO92, SOT89
