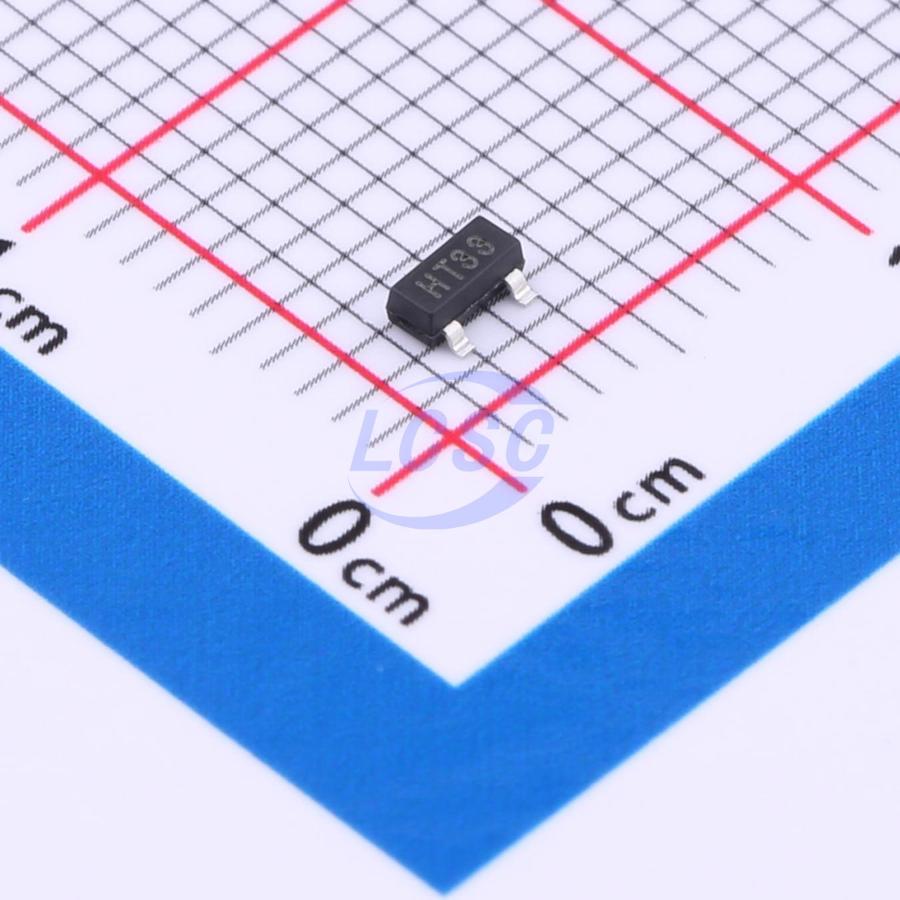

HT7533H23
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-23-3
SOT-23-3ROHS CompliantActive
IC REG LINEAR 3.3V 100mA SOT-23-3
- Manufacturer
- hengjiaxing
- Manufacturer part #
- HT7533H23
- Store part #
- C2984959
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,520 in stock
#C2984959
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.10 | ₹81.00 |
| 100+ | ₹6.44 | ₹644.00 |
| 300+ | ₹5.62 | ₹1,686.00 |
| 3,000+ | ₹4.80 | ₹14,400.00 |
| 6,000+ | ₹4.30 | ₹25,800.00 |
| 9,000+ | ₹4.05 | ₹36,450.00 |
10 × ₹8.10
₹81.00
excl. GST
₹95.58 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT7533H23
₹81.00 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 30V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
HT75XX-1(H) is a low dropout linear regulator fabricated using CMOS technology. It supports a maximum operating voltage of 30V, offers several fixed output voltage options ranging from 2.8V to 9.0V, and features low quiescent current consumption. It is widely used in power supply applications for audio, video, and communication equipment.
Applications
- Power supply equipment
- Communication equipment
- Audio and video equipment
Key features
- Low power consumption
- Low input/output voltage differential
- Low temperature drift coefficient
- Maximum operating voltage up to 30V
- Quiescent current 1.5μA
- Output voltage accuracy: ±2%
- High output current: 100mA
