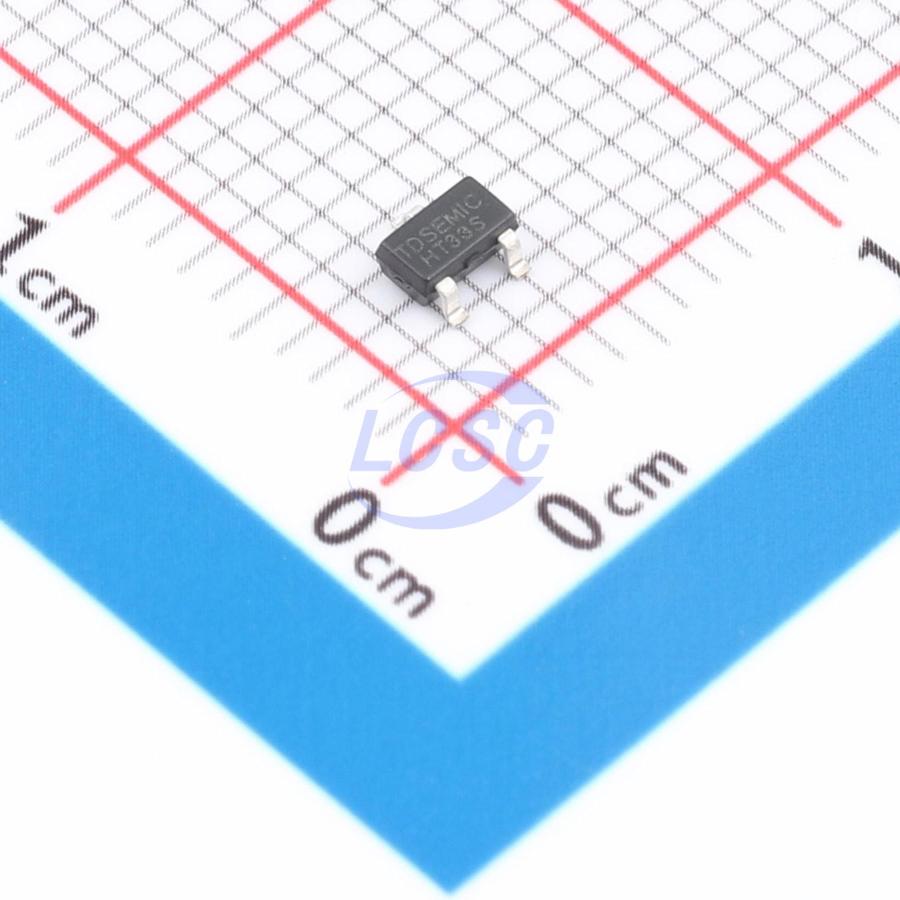

HT7133S/H-TD(55V)
3.3V Positive Fixed SOT-23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-3RoHSActive
- Manufacturer
- TDSEMIC
- Manufacturer part #
- HT7133S/H-TD(55V)
- Store part #
- C52195504
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,890 in stock
#C52195504
Stock & price checked 33 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.29 | ₹51.45 |
| 50+ | ₹8.16 | ₹408.00 |
| 150+ | ₹7.09 | ₹1,063.50 |
| 500+ | ₹6.30 | ₹3,150.00 |
| 3,000+ | ₹5.65 | ₹16,950.00 |
| 6,000+ | ₹5.33 | ₹31,980.00 |
5 × ₹10.29
₹51.45
excl. GST
₹60.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT7133S/H-TD(55V)
₹51.45 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -45℃~+120℃
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Output Current
- 150mA
- Operating Voltage
- 55V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
This device is a CMOS low-dropout linear regulator with a 150mA output current and a maximum input voltage of 55V. It offers multiple fixed output voltages ranging from 2.5V to 5.0V. Featuring low dropout voltage and low quiescent current, it is widely used in power supply applications for audio, video, and communication equipment.
Applications
- Various power supply equipment
- Communication equipment
- Audio and video equipment
Key features
- Low power consumption, low dropout
- Low temperature coefficient
- Maximum input voltage: 55V
- Typical quiescent current: 2.5uA
- Output current: 150mA
- Output voltage accuracy: ±2%
- Package types: SOT23-3, SOT23-5, TO92, SOT89
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7133S-TD(55V)#C49023489TDSEMIC · SOT-23-3 | TDSEMIC | SOT-23-3 | 23,930 | ₹9.95 · 23,930 in stock | View |
 | HT7533S-TD(55V)#C49023493TDSEMIC · SOT-23-3 | TDSEMIC | SOT-23-3 | 6,380 | ₹10.49 · 6,380 in stock | View |
 | HT7533S/H-TD(55V)#C52195503TDSEMIC · SOT-23-3 | TDSEMIC | SOT-23-3 | 5,740 | ₹10.29 · 5,740 in stock | View |
