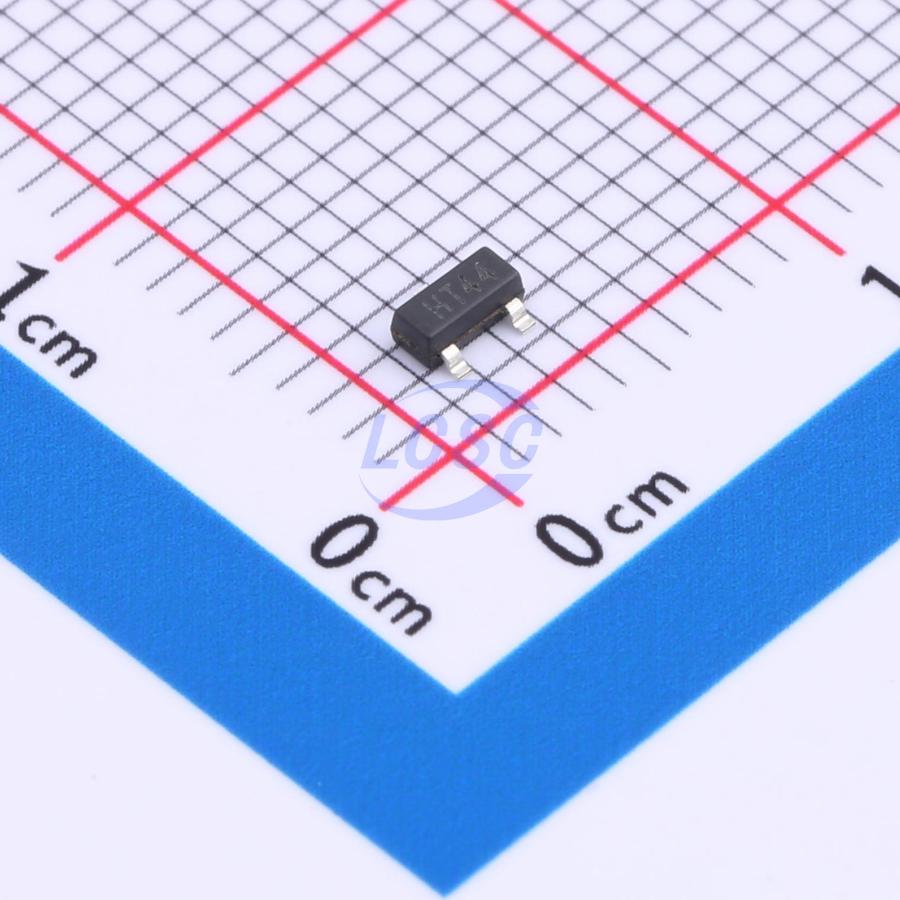

HT7144
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-23-3
SOT-23-3ROHS CompliantActive
IC REG LINEAR 4.4V 100mA SOT-23-3
- Manufacturer
- hengjiaxing
- Manufacturer part #
- HT7144
- Store part #
- C2984879
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,080 in stock
#C2984879
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.86 | ₹58.60 |
| 100+ | ₹4.71 | ₹471.00 |
| 300+ | ₹4.14 | ₹1,242.00 |
| 3,000+ | ₹3.33 | ₹9,990.00 |
| 6,000+ | ₹2.99 | ₹17,940.00 |
| 9,000+ | ₹2.82 | ₹25,380.00 |
10 × ₹5.86
₹58.60
excl. GST
₹69.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT7144
₹58.60 for 10 + GST
Specifications
- Output Voltage
- 4.4V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+70℃@(Ta)
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 18V
- Features
- Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
The HT71XX series are low-power, high-voltage regulators fabricated using CMOS technology, supporting input voltages up to 18V with an output voltage range of 2–5V. Key features include high-accuracy output voltage, ultra-low supply current, and ultra-low dropout voltage.
Applications
- Battery and other power supply equipment
- Various communication devices
- Audio/video equipment
- Security surveillance devices
Key features
- Low power consumption: 3μA
- Low dropout voltage: 0.1V typical
- Low temperature drift: 50ppm/℃ typical
- Wide input voltage range: up to 18V
- High-accuracy output voltage: ±3% tolerance
- Package types: TO-92, SOT89-3, SOT23-3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7544#C2984882hengjiaxing · SOT-23-3 | hengjiaxing | SOT-23-3 | 780 | ₹6.02 · 780 in stock | View |
 | HX7544#C296149hengjiaxing · SOT-23 | hengjiaxing | SOT-23 | 1,160 | ₹8.02 · 1,160 in stock | View |
 | HX7144#C296181hengjiaxing · SOT-23 | hengjiaxing | SOT-23 | 2,200 | ₹9.53 · 2,200 in stock | View |
