hengjiaxingDatasheet (PDF)

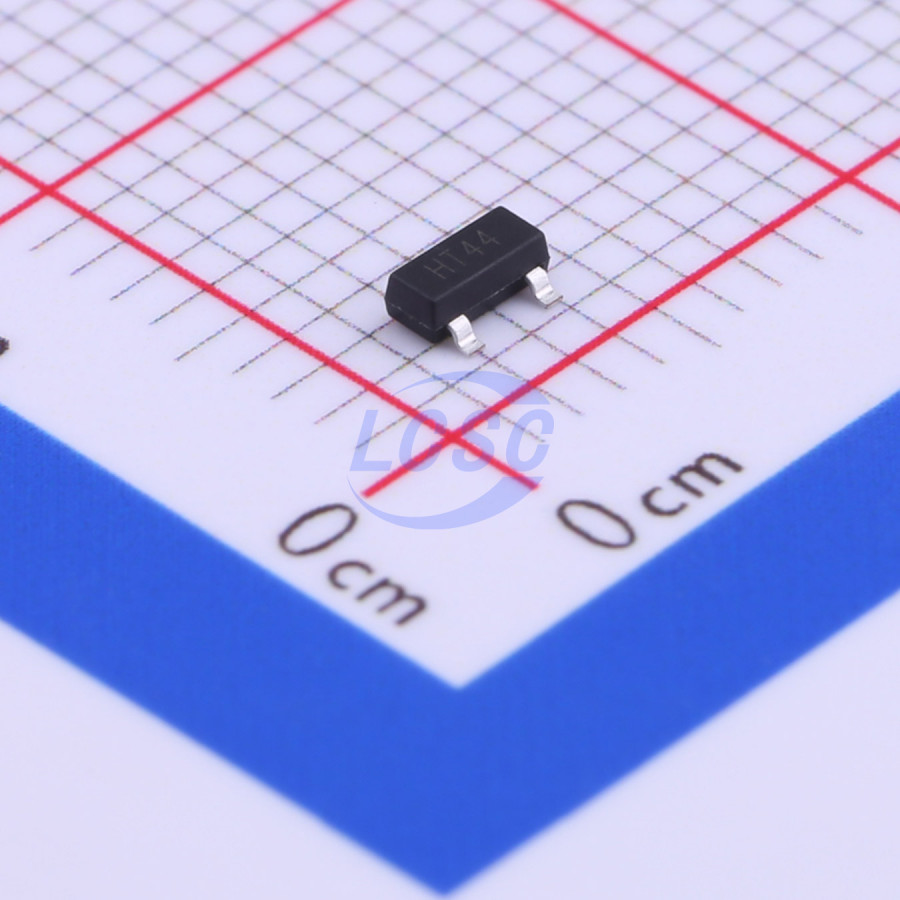

HX7544
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-23
SOT-23ROHS CompliantActive
IC REG LINEAR 4.4V 100mA SOT-23
- Manufacturer
- hengjiaxing
- Manufacturer part #
- HX7544
- Store part #
- C296149
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,160 in stock
#C296149
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.02 | ₹80.20 |
| 100+ | ₹6.38 | ₹638.00 |
| 300+ | ₹5.54 | ₹1,662.00 |
| 3,000+ | ₹4.93 | ₹14,790.00 |
| 6,000+ | ₹4.43 | ₹26,580.00 |
| 9,000+ | ₹4.19 | ₹37,710.00 |
10 × ₹8.02
₹80.20
excl. GST
₹94.64 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HX7544
₹80.20 for 10 + GST
Specifications
- Output Voltage
- 4.4V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+70℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 18V
- Output Current
- 100mA
- Features
- Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
The HX75XX series are low-power, high-voltage regulators fabricated using CMOS process technology, supporting a maximum input voltage of 18V and an output voltage range of 2.0V ~ 5.0V. They feature high-accuracy output voltage, ultra-low supply current, and ultra-low dropout voltage.
Applications
- Battery and other power supply equipment
- Various communication devices
- Audio/video equipment
- Security surveillance equipment
Key features
- Low power consumption: 3μA
- Low dropout voltage: typical 0.1V
- Low temperature drift: typical 50 ppm/℃
- High input voltage: up to 18V
- High-accuracy output voltage: ±3% tolerance
- Package types: TO-92, SOT89-3, SOT23-3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7144#C2984879hengjiaxing · SOT-23-3 | hengjiaxing | SOT-23-3 | 2,080 | ₹5.86 · 2,080 in stock | View |
 | HT7544#C2984882hengjiaxing · SOT-23-3 | hengjiaxing | SOT-23-3 | 780 | ₹6.02 · 780 in stock | View |
 | HX7144#C296181hengjiaxing · SOT-23 | hengjiaxing | SOT-23 | 2,200 | ₹9.53 · 2,200 in stock | View |
