TECH PUBLICDatasheet (PDF)

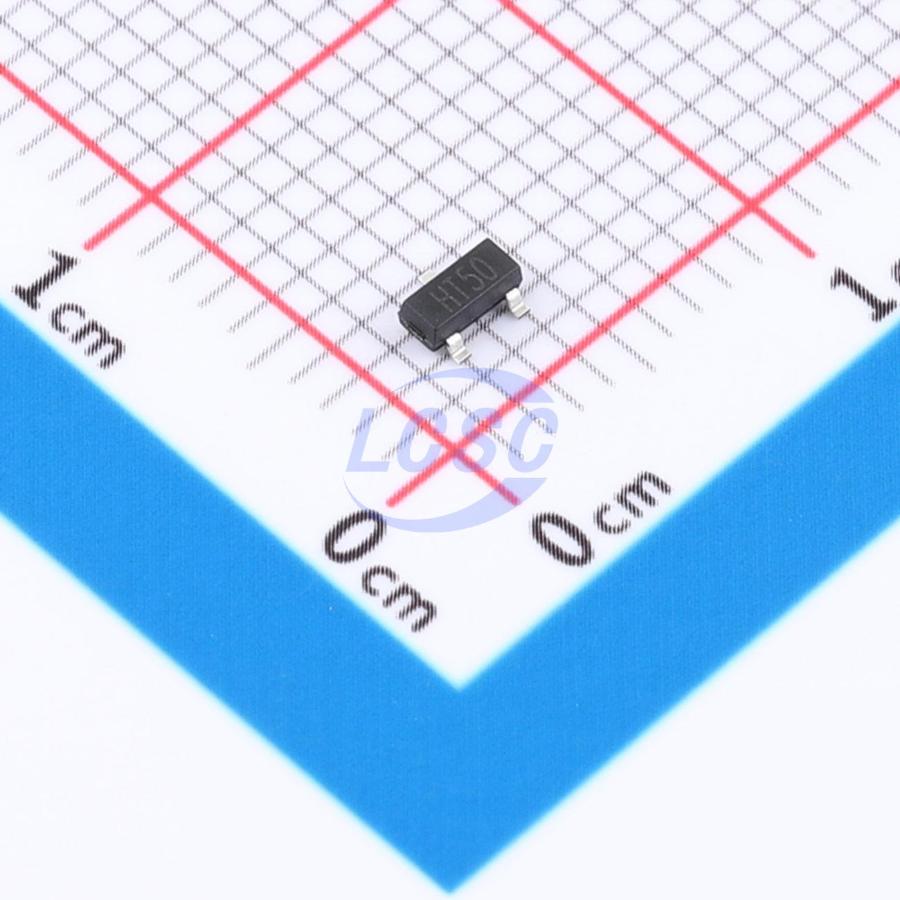

HT7150S
5V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- HT7150S
- Store part #
- C53340886
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
560 in stock
#C53340886
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.47 | ₹89.40 |
| 200+ | ₹3.47 | ₹694.00 |
| 1,000+ | ₹2.91 | ₹2,910.00 |
| 2,000+ | ₹2.58 | ₹5,160.00 |
| 10,000+ | ₹2.29 | ₹22,900.00 |
| 20,000+ | ₹2.13 | ₹42,600.00 |
20 × ₹4.47
₹89.40
excl. GST
₹105.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT7150S
₹89.40 for 20 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 36V
- Features
- Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.032 g
Overview
The HT71 series are micropower low-dropout regulators available in multiple output voltages. These devices feature very low quiescent current, thermal limiting protection during output short-circuit conditions, and an internal thermal shutdown circuit. Due to their low input-to-output voltage differential and bias current specifications, these devices are ideal for battery-powered computing, consumer, and industrial equipment to extend battery life.
Applications
- Handheld instruments
- Battery-powered consumer products
- Test and measurement equipment
- Industrial power supplies
Key features
- Input voltage up to 36V
- Output current up to 100mA (typical)
- No-load current 3μA (typical)
- Output accuracy ±2.5%
- Compact packages: SOT89-3 and SOT23
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP375C50S3#C3021140TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,500 | ₹17.44 · 1,500 in stock | View |
 | HT7550HS#C52817108TECH PUBLIC · SOT-23-3L | TECH PUBLIC | SOT-23-3L | 830 | ₹10.82 · 830 in stock | View |
