TDSEMICDatasheet (PDF)

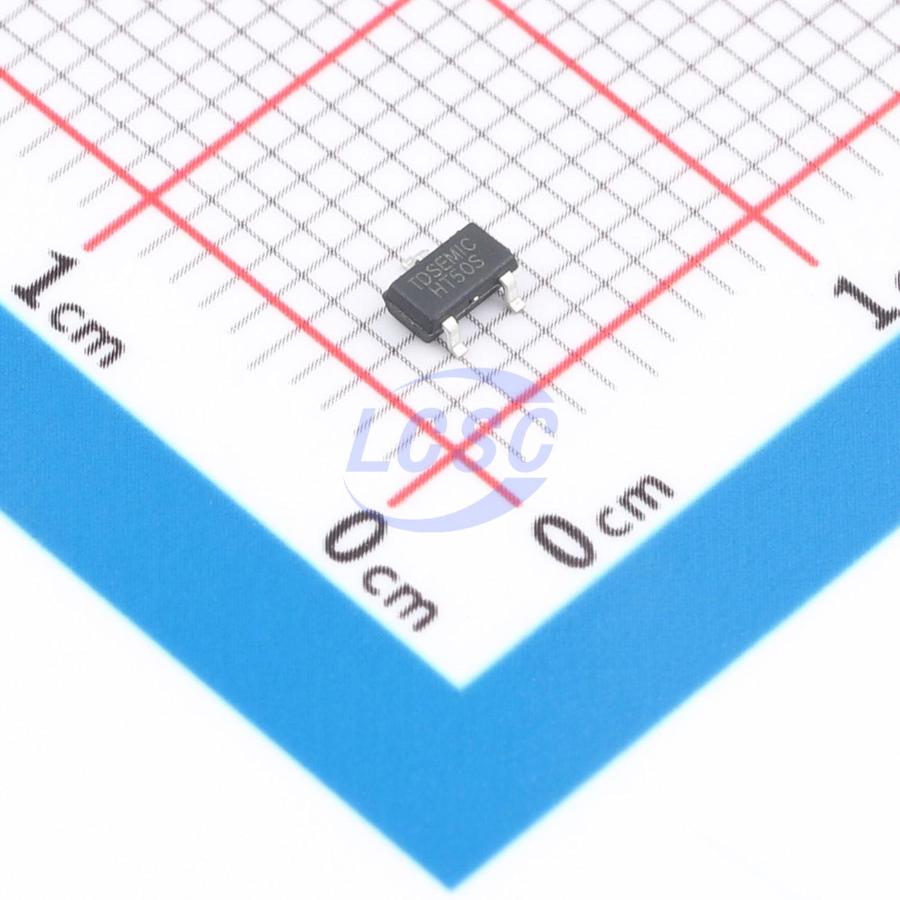

HT7150S/H-TD(55V)
5V Positive Fixed SOT-23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-3RoHSActive
- Manufacturer
- TDSEMIC
- Manufacturer part #
- HT7150S/H-TD(55V)
- Store part #
- C52195502
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,990 in stock
#C52195502
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.29 | ₹51.45 |
| 50+ | ₹8.16 | ₹408.00 |
| 150+ | ₹7.09 | ₹1,063.50 |
| 500+ | ₹6.30 | ₹3,150.00 |
| 3,000+ | ₹5.65 | ₹16,950.00 |
| 6,000+ | ₹5.33 | ₹31,980.00 |
5 × ₹10.29
₹51.45
excl. GST
₹60.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT7150S/H-TD(55V)
₹51.45 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -45℃~+120℃
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Output Current
- 150mA
- Operating Voltage
- 55V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The 75xx series is a low-dropout linear regulator based on CMOS technology, with an output current of 150mA and a maximum allowable input voltage of 55V. The series offers multiple fixed output voltage options ranging from 2.5V to 5.0V. With low dropout voltage and low quiescent current characteristics, these devices are widely used in power supply applications for various audio, video, and communications equipment.
Applications
- Various power supply equipment
- Communication equipment
- Audio and video equipment
Key features
- Low power consumption, low dropout
- Low temperature coefficient
- Maximum input voltage: 55V
- Typical quiescent current: 2.5uA
- Output current: 150mA
- Output voltage accuracy: ±2%
- Package types: SOT23-3, SOT23-5, TO92, SOT89
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7150S-TD(55V)#C49023491TDSEMIC · SOT-23-3 | TDSEMIC | SOT-23-3 | 29,560 | ₹9.95 · 29,560 in stock | View |
 | HT7550S-TD(55V)#C49023495TDSEMIC · SOT-23-3 | TDSEMIC | SOT-23-3 | 14,500 | ₹9.10 · 14,500 in stock | View |
 | HT7550S/H-TD(55V)#C52195501TDSEMIC · SOT-23-3 | TDSEMIC | SOT-23-3 | 2,460 | ₹10.29 · 2,460 in stock | View |
