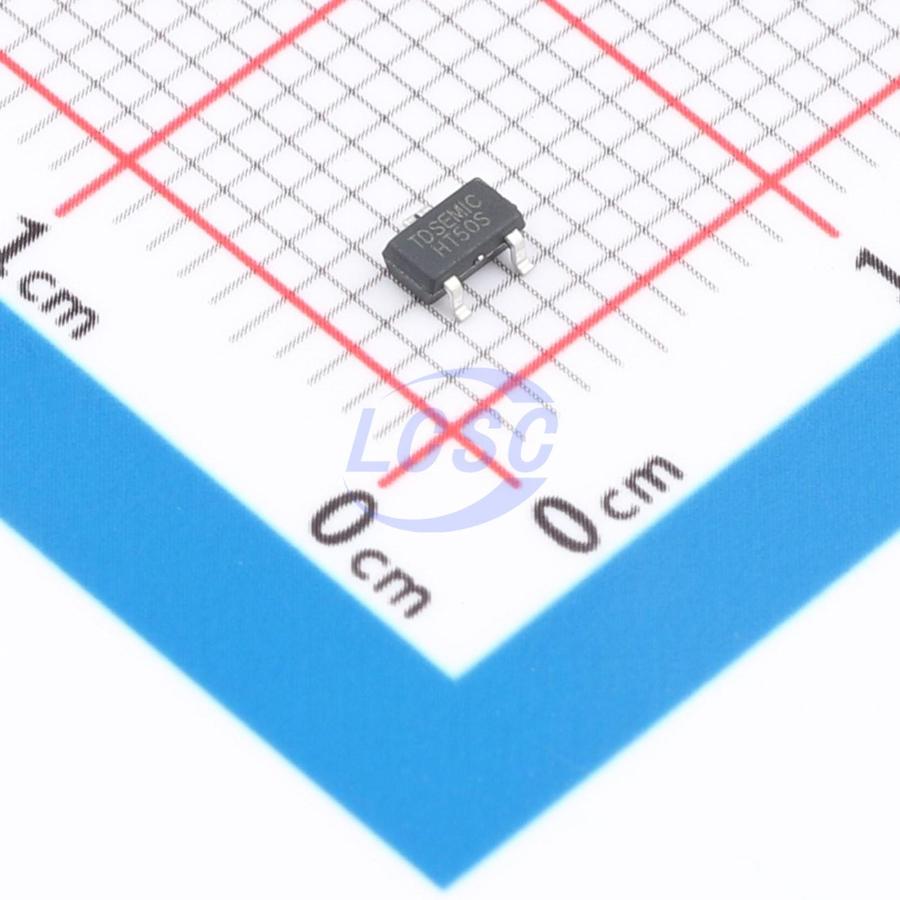

HT7550S/H-TD(55V)
5V Positive Fixed SOT-23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-3RoHSActive
- Manufacturer
- TDSEMIC
- Manufacturer part #
- HT7550S/H-TD(55V)
- Store part #
- C52195501
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,460 in stock
#C52195501
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.29 | ₹51.45 |
| 50+ | ₹8.16 | ₹408.00 |
| 150+ | ₹7.09 | ₹1,063.50 |
| 500+ | ₹6.30 | ₹3,150.00 |
| 3,000+ | ₹5.65 | ₹16,950.00 |
| 6,000+ | ₹5.33 | ₹31,980.00 |
5 × ₹10.29
₹51.45
excl. GST
₹60.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT7550S/H-TD(55V)
₹51.45 for 5 + GST
Specifications
- Output Voltage
- 5V
- Operating Temperature
- -45℃~+120℃
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Output Current
- 150mA
- Operating Voltage
- 55V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The 75xx series is a low-dropout linear regulator utilizing CMOS technology, featuring a 150mA output current and a maximum input voltage of 55V. The series offers multiple fixed output voltage options ranging from 2.5V to 5.0V. With low dropout voltage and low quiescent current characteristics, it is well-suited for powering a wide range of audio, video, and communication equipment.
Applications
- Various power supply equipment
- Communication equipment
- Audio and video equipment
Key features
- Low power consumption, low dropout
- Low temperature coefficient
- Maximum input voltage: 55V
- Typical quiescent current: 2.5uA
- Output current: 150mA
- Output voltage accuracy: ±2%
- Package types: SOT23-3, SOT23-5, TO92, SOT89
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7150S/H-TD(55V)#C52195502TDSEMIC · SOT-23-3 | TDSEMIC | SOT-23-3 | 2,990 | ₹10.29 · 2,990 in stock | View |
 | HT7150S-TD(55V)#C49023491TDSEMIC · SOT-23-3 | TDSEMIC | SOT-23-3 | 29,500 | ₹9.95 · 29,500 in stock | View |
 | HT7550S-TD(55V)#C49023495TDSEMIC · SOT-23-3 | TDSEMIC | SOT-23-3 | 14,150 | ₹9.10 · 14,150 in stock | View |
