TECH PUBLICDatasheet (PDF)

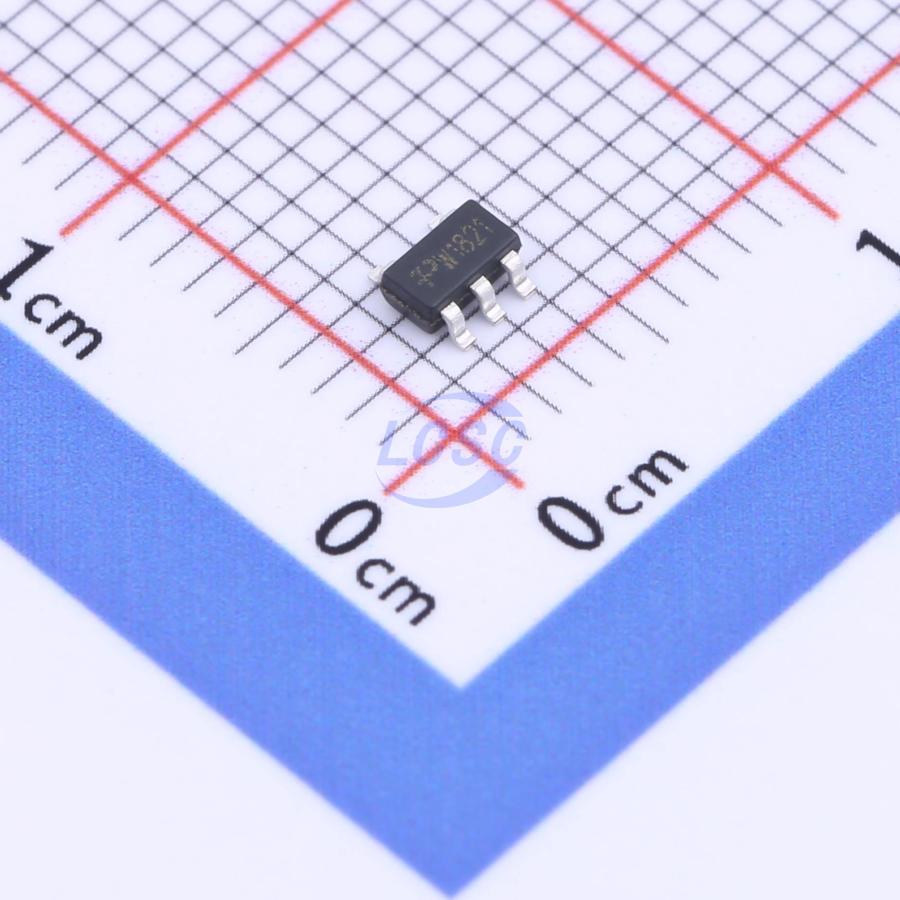

HT7218
1.8V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
400mA 2uA High PSRR Voltage Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- HT7218
- Store part #
- C3021125
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,619 in stock
#C3021125
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹15.20 | ₹15.20 |
| 10+ | ₹13.22 | ₹132.20 |
| 30+ | ₹12.37 | ₹371.10 |
| 100+ | ₹11.31 | ₹1,131.00 |
| 500+ | ₹10.84 | ₹5,420.00 |
| 1,000+ | ₹10.56 | ₹10,560.00 |
1 × ₹15.20
₹15.20
excl. GST
₹17.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT7218
₹15.20 for 1 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 400mA
- Operating Voltage
- 5.5V
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.033 g
Overview
The HT72XX is a low-dropout (LDO) voltage regulator with enable function that operates from a 1.2V to 5.5V supply. It provides up to 400mA of output current in miniaturized packaging. The feature of 2μA low quiescent current and 0.5μA shutdown current are ideal for the battery application with long service life. The other features include current limit function, over temperature protection and output discharge function.
Applications
- Portable, Battery Powered Equipment
- Low Power Microcontrollers
- Laptop, Palmtops and PDAs
- Wireless Communication Equipment
- Audio/Video Equipment
Key features
- 2μA Ground Current at no Load
- ±2% Output Accuracy
- 400mA Output Current
- 10nA Disable Current (by option)
- Wide Operating Input Voltage Range: 1.2V to 5.5V
- Dropout Voltage: 0.18V at 300mA (Vout = 3.3V)
- Support Fixed Output Voltage 1.2V, 1.5V, 1.6V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
- Stable with Ceramic or Tantalum Capacitor
- Current Limit Protection
- Over-Temperature Protection
- SOT23-5, SOT89-3 Packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPRT9078-18GJ5#C3021122TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,985 | ₹17.03 · 1,985 in stock | View |
 | TP142C18S5#C3021124TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,318 | ₹21.06 · 1,318 in stock | View |
 | TP2803E18-5#C2987077TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,350 | ₹13.60 · 2,350 in stock | View |
 | TP2036-1.8YN5#C2987079TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,950 | ₹12.73 · 1,950 in stock | View |
 | TPAP2125K-1.8TRG1#C2937007TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,830 | ₹13.89 · 1,830 in stock | View |
