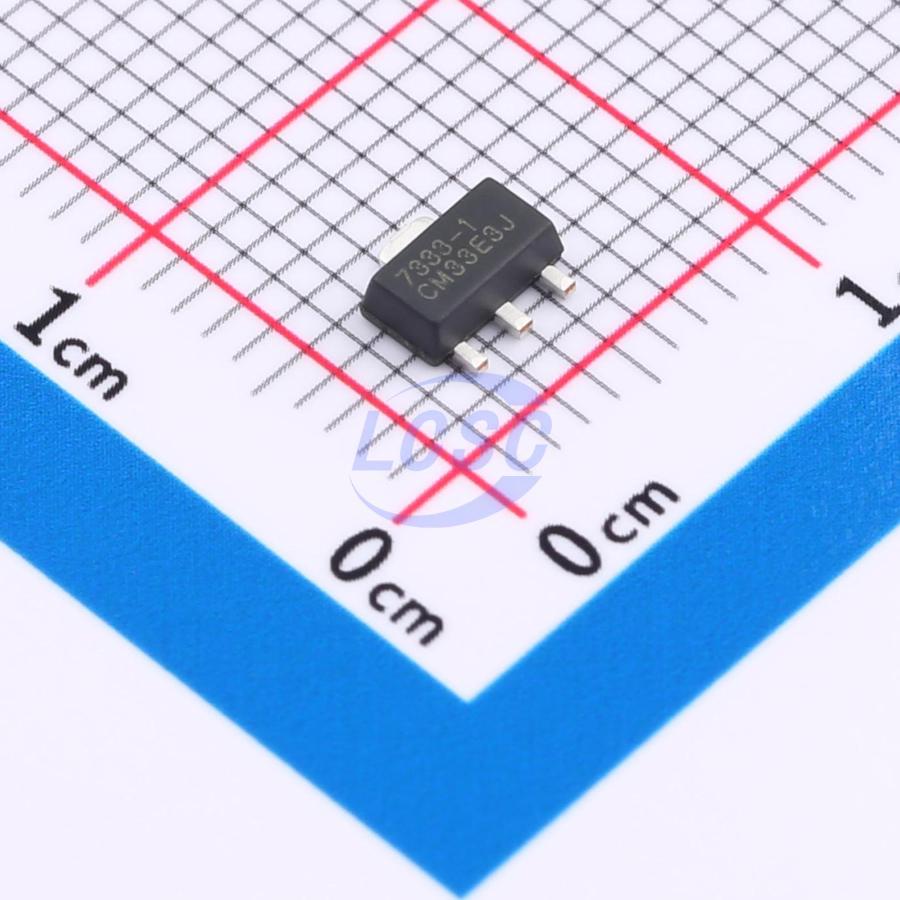

HT7333-1
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-89
SOT-89ROHS CompliantActive
250mA low-power consumption LDO
- Manufacturer
- TDSEMIC
- Manufacturer part #
- HT7333-1
- Store part #
- C22466407
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,080 in stock
#C22466407
Stock & price checked 17 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.17 | ₹91.70 |
| 100+ | ₹7.25 | ₹725.00 |
| 300+ | ₹6.30 | ₹1,890.00 |
| 1,000+ | ₹5.58 | ₹5,580.00 |
| 5,000+ | ₹5.01 | ₹25,050.00 |
| 10,000+ | ₹4.72 | ₹47,200.00 |
10 × ₹9.17
₹91.70
excl. GST
₹108.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT7333-1
₹91.70 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -35℃~+80℃@(Ta)
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Operating Voltage
- 24V
- Output Current
- 250mA
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.14 g
Overview
HT73XX-1 is a low dropout linear regulator utilizing CMOS technology. It delivers an output current of 250mA and supports a maximum input voltage of 24V. Several fixed output voltage options are available, ranging from 3.0V to 5.0V. CMOS technology ensures low dropout voltage and low quiescent current characteristics.
Applications
- Battery-powered devices
- Communication equipment
- Audio/video devices
Key features
- Low power consumption
- Low dropout
- Low temperature coefficient
- Maximum input voltage: 24V
- Typical quiescent current: 1.5μA
- Output current: 250mA
- Output voltage accuracy: ±2%
- Package types: SOT23-3, TO92, SOT89
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7533H-TD(55V)#C49023474TDSEMIC · SOT-89 | TDSEMIC | SOT-89 | 26,505 | ₹13.31 · 26,505 in stock | View |
 | HT7133H-TD(55V)#C49023492TDSEMIC · SOT-89 | TDSEMIC | SOT-89 | 38,330 | ₹9.71 · 38,330 in stock | View |
