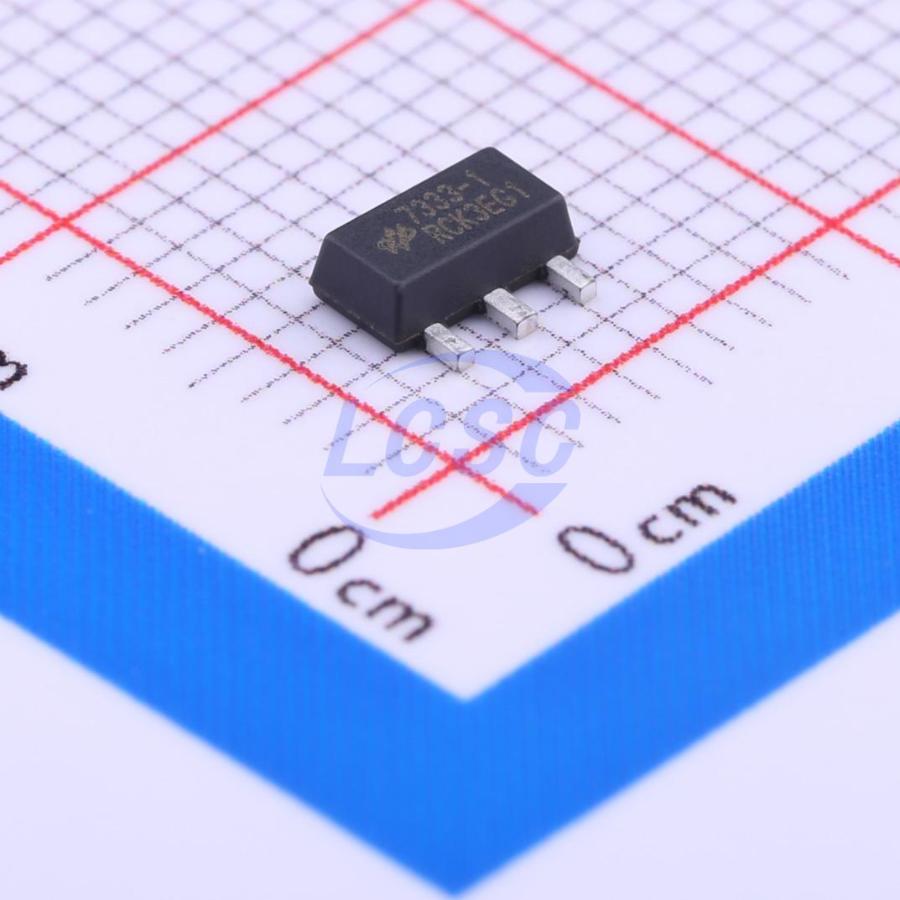

HT7333-1
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-89-3
SOT-89-3RoHSActive
30V, 250mA low-power LDO
- Manufacturer
- HOLTEK
- Manufacturer part #
- HT7333-1
- Store part #
- C77777
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17,410 in stock
#C77777
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.13 | ₹140.65 |
| 50+ | ₹22.48 | ₹1,124.00 |
| 150+ | ₹20.06 | ₹3,009.00 |
| 1,000+ | ₹14.65 | ₹14,650.00 |
| 2,000+ | ₹13.31 | ₹26,620.00 |
| 5,000+ | ₹12.50 | ₹62,500.00 |
5 × ₹28.13
₹140.65
excl. GST
₹165.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT7333-1
₹140.65 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 250mA
- Features
- Over Current Protection;Built-in soft-start
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.197 g
Overview
The HT73xx-1 series are CMOS-based low-power high-voltage LDO regulators featuring low dropout voltage and low quiescent current. This series supports input voltages up to 30V and provides several fixed output voltages in the range of 2.1V to 5.0V. The soft-start function effectively prevents output overshoot during power-up. Although primarily designed as fixed-voltage regulators, the series can be combined with external components to achieve adjustable voltage and current outputs.
Applications
- Battery-powered devices
- Communication equipment
- Audio/video devices
Key features
- Low power consumption
- Low dropout voltage
- Low temperature coefficient
- High input voltage (up to 30V)
- Output voltage accuracy: ±3%
- Overcurrent protection
- Package types: 3-pin SOT89, 8-pin SOP-EP
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7333-7#C114068HOLTEK · SOT-89-3 | HOLTEK | SOT-89-3 | 3,045 | ₹27.21 · 3,045 in stock | View |
 | HT7533H-TD(55V)#C49023474TDSEMIC · SOT-89 | TDSEMIC | SOT-89 | 26,950 | ₹11.07 · 26,950 in stock | View |
 | HT7133H-TD(55V)#C49023492TDSEMIC · SOT-89 | TDSEMIC | SOT-89 | 38,330 | ₹8.07 · 38,330 in stock | View |
 | MD73HA33PA1#C20623210Mingda Microelectronics · SOT-89-3L | Mingda Microelectronics | SOT-89-3L | 45 | ₹13.88 · 45 in stock | View |
 | MST5433BTS#C2761432MST · SOT-89-3 | MST | SOT-89-3 | 425 | ₹12.79 · 425 in stock | View |
