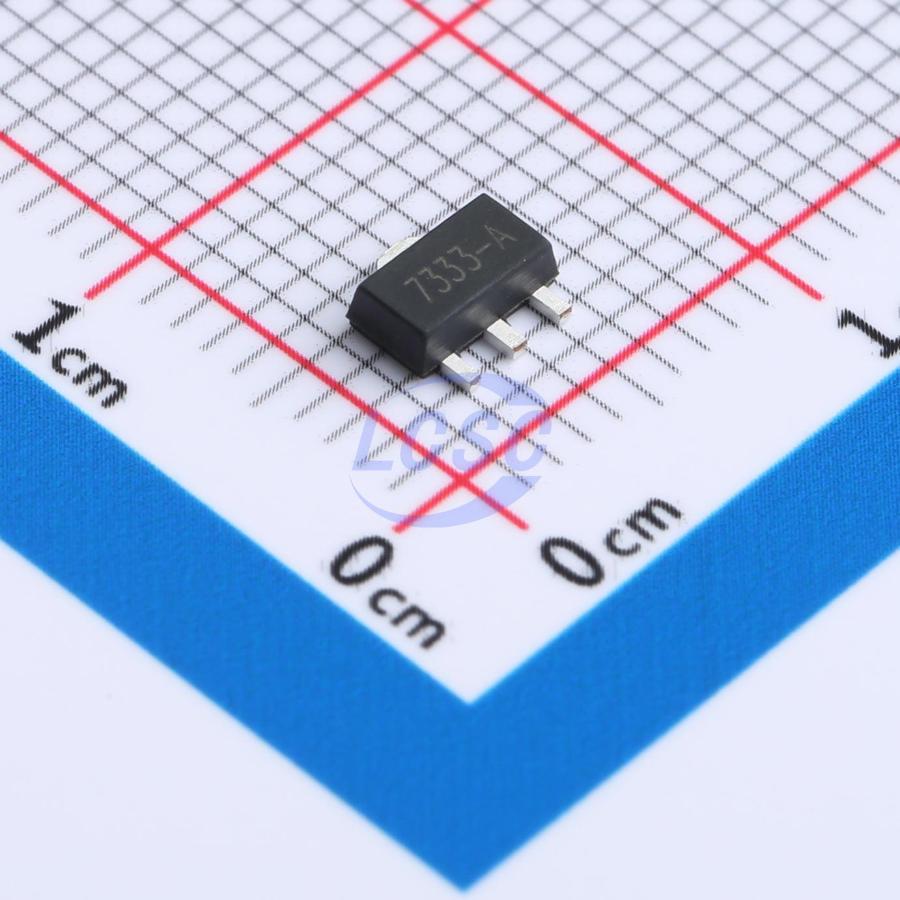

HT7333-A-MS
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-89
SOT-89RoHSActive
Low Dropout Linear Regulator
- Manufacturer
- MSKSEMI
- Manufacturer part #
- HT7333-A-MS
- Store part #
- C7434192
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,030 in stock
#C7434192
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.94 | ₹89.40 |
| 100+ | ₹7.08 | ₹708.00 |
| 300+ | ₹6.14 | ₹1,842.00 |
| 1,000+ | ₹5.44 | ₹5,440.00 |
| 5,000+ | ₹4.87 | ₹24,350.00 |
| 10,000+ | ₹4.59 | ₹45,900.00 |
10 × ₹8.94
₹89.40
excl. GST
₹105.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT7333-A-MS
₹89.40 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 12V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.148 g
Overview
HT73XX-A-MS is a low dropout linear regulator using CMOS technology. Maximum output current is 250mA, with a maximum allowable input voltage of 12V. Several fixed output voltages are available, ranging from 2.5V to 5.0V. CMOS technology ensures low dropout voltage and low quiescent current characteristics.
Applications
- Various power supply equipment
- Communication equipment
- Audio and video equipment
Key features
- Low power consumption
- Low dropout voltage
- Low temperature coefficient
- Operating voltage up to 12V
- Quiescent current 3μA
- Output voltage accuracy: ±3%
- Output current: 250mA
- Package types: SOT23, SOT89
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7333-1-MS#C7434186MSKSEMI · SOT-89 | MSKSEMI | SOT-89 | 31,870 | ₹8.14 · 31,870 in stock | View |
 | XC6201P332PR-MS#C22462573MSKSEMI · SOT-89-3 | MSKSEMI | SOT-89-3 | 405 | ₹17.21 · 405 in stock | View |
 | HT7333-2-MS#C30197517MSKSEMI · SOT-89 | MSKSEMI | SOT-89 | 745 | ₹24.65 · 745 in stock | View |
 | HT7333-3-MS#C30197514MSKSEMI · SOT-89-3 | MSKSEMI | SOT-89-3 | 560 | ₹24.65 · 560 in stock | View |
 | HT7833-MS#C22462603MSKSEMI · SOT-89-3 | MSKSEMI | SOT-89-3 | 620 | ₹12.09 · 620 in stock | View |
