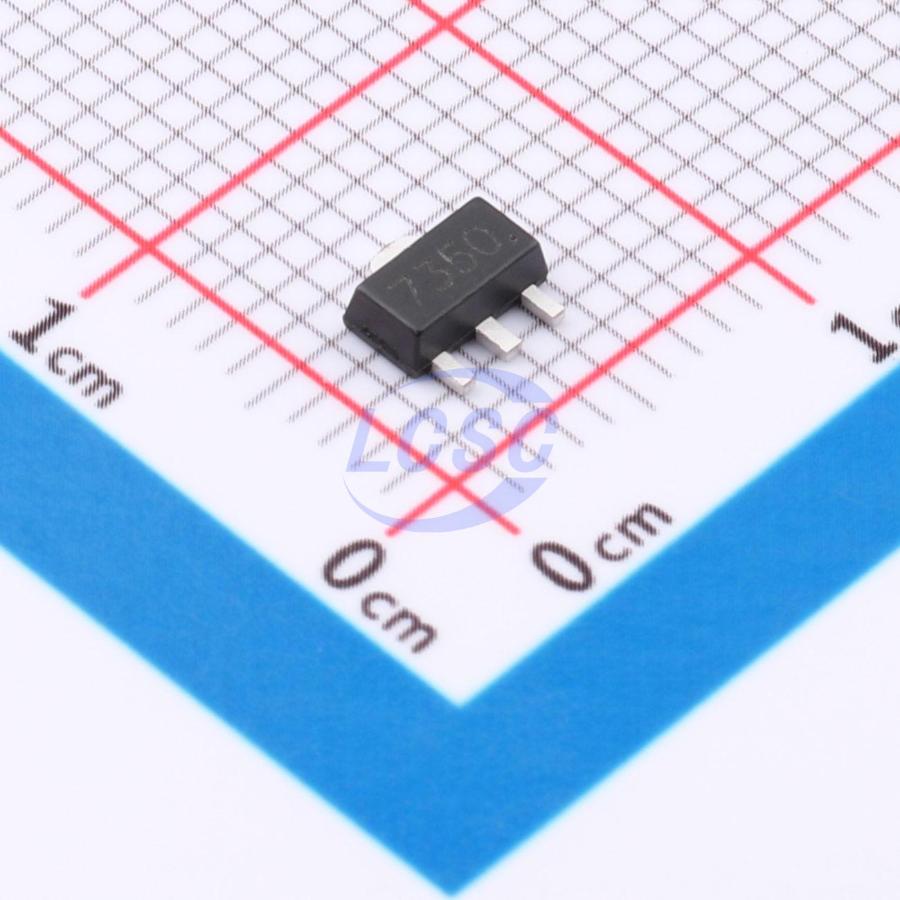

HT7350-A-L(TP)
5V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89-3RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- HT7350-A-L(TP)
- Store part #
- C53340888
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,640 in stock
#C53340888
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.07 | ₹101.40 |
| 200+ | ₹3.93 | ₹786.00 |
| 1,000+ | ₹3.29 | ₹3,290.00 |
| 2,000+ | ₹2.92 | ₹5,840.00 |
| 10,000+ | ₹2.59 | ₹25,900.00 |
| 20,000+ | ₹2.41 | ₹48,200.00 |
20 × ₹5.07
₹101.40
excl. GST
₹119.65 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT7350-A-L(TP)
₹101.40 for 20 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Operating Voltage
- 18V
- Features
- Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.133 g
Overview
This series consists of micropower low-dropout regulators available in multiple output voltages. These devices feature very low quiescent current, with output short-circuit protection and internal thermal shutdown circuitry providing thermal protection. Due to their low input-to-output voltage differential and low bias current specifications, these devices are ideal for battery-powered computers, consumer, and industrial equipment to extend battery life.
Applications
- Handheld instruments
- Battery-powered consumer products
- Test and measurement equipment
- Industrial power supplies
Key features
- Input voltage up to 18V
- Output current up to 300mA (max)
- No-load current 3μA (typ)
- Output accuracy ±2%
- Compact packages: SOT89-3 and SOT23
