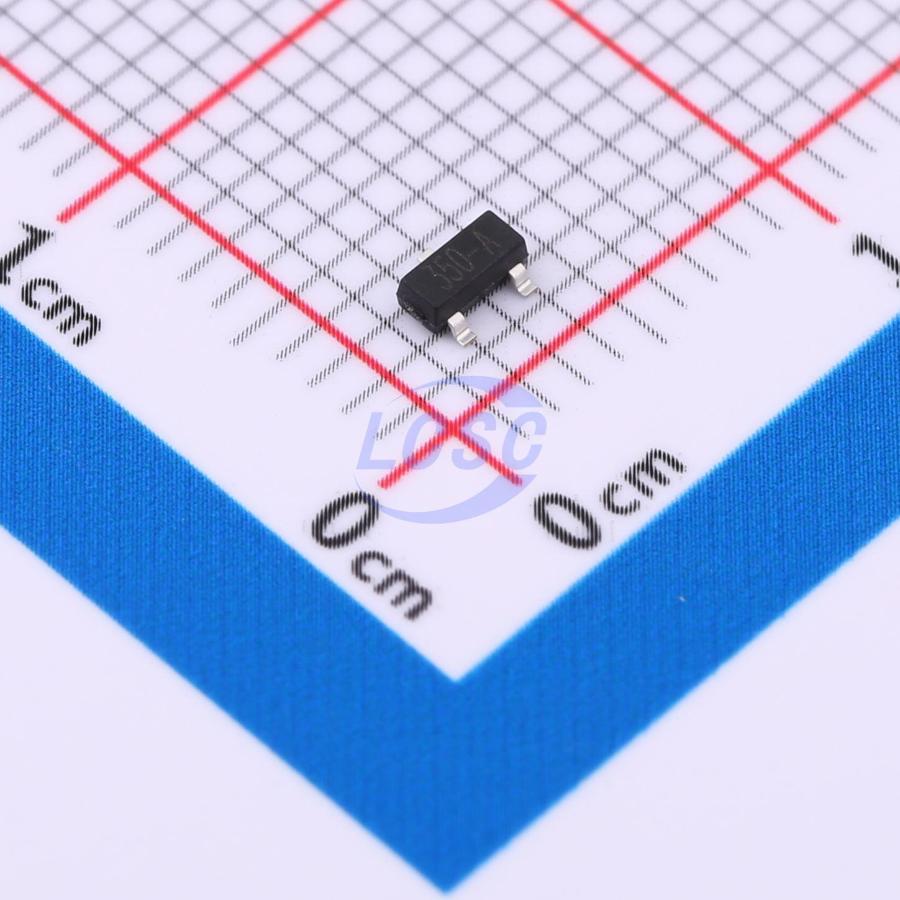

HT7350-A-MS
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23
SOT-23RoHSActive
Low Dropout Linear Regulator
- Manufacturer
- MSKSEMI
- Manufacturer part #
- HT7350-A-MS
- Store part #
- C7434429
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,760 in stock
#C7434429
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.93 | ₹89.30 |
| 100+ | ₹7.06 | ₹706.00 |
| 300+ | ₹6.13 | ₹1,839.00 |
| 3,000+ | ₹5.42 | ₹16,260.00 |
| 6,000+ | ₹4.87 | ₹29,220.00 |
| 9,000+ | ₹4.58 | ₹41,220.00 |
10 × ₹8.93
₹89.30
excl. GST
₹105.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT7350-A-MS
₹89.30 for 10 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 12V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
HT73XX-A-MS is a low dropout linear regulator using CMOS technology. Maximum output current is 250mA, with a maximum allowable input voltage of 12V. Several fixed output voltages are available, ranging from 2.5V to 5.0V. CMOS technology ensures low dropout voltage and low quiescent current characteristics.
Applications
- Various power supply equipment
- Communication equipment
- Audio and video equipment
Key features
- Low power consumption
- Low dropout voltage
- Low temperature coefficient
- Operating voltage up to 12V
- Quiescent current 3μA
- Output voltage accuracy: ±3%
- Output current: 250mA
- Package types: SOT23, SOT89
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7350-1-MS#C7434426MSKSEMI · SOT-23 | MSKSEMI | SOT-23 | 280 | ₹8.63 · 280 in stock | View |
