HTCSEMIDatasheet (PDF)

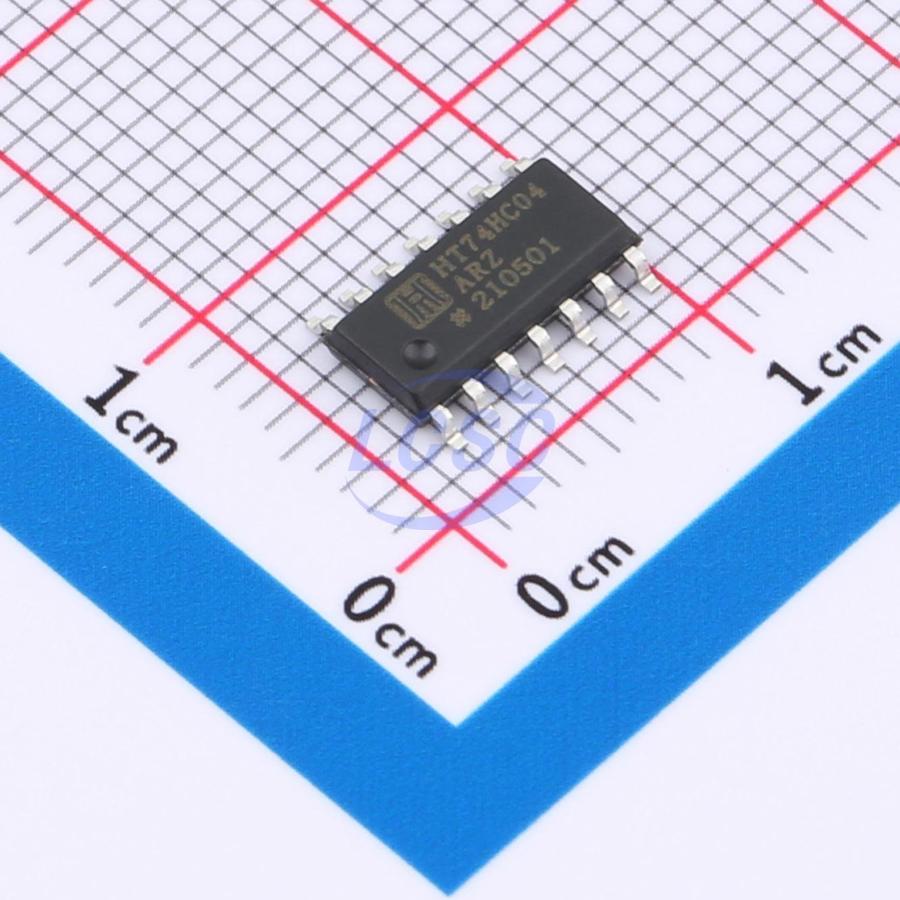

HT74HC04ARZ
StandardCMOS 2V~6V 9ns@6V,50pF 40uA 6 SOP-14 Gates and Inverters
SOP-14RoHSActive
Hex Inverter
- Manufacturer
- HTCSEMI
- Manufacturer part #
- HT74HC04ARZ
- Store part #
- C5241938
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,345 in stock
#C5241938
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.74 | ₹88.70 |
| 50+ | ₹14.12 | ₹706.00 |
| 150+ | ₹12.30 | ₹1,845.00 |
| 500+ | ₹10.94 | ₹5,470.00 |
| 2,500+ | ₹9.86 | ₹24,650.00 |
| 5,000+ | ₹9.30 | ₹46,500.00 |
5 × ₹17.74
₹88.70
excl. GST
₹104.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HT74HC04ARZ
₹88.70 for 5 + GST
Specifications
- output type
- Push-pull
- Input Type
- StandardCMOS
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;400mV
- Propagation Delay
- 9ns@6V,50pF
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Output Logic Level - High
- 1.9V;4.4V;5.9V;3.7V;5.2V
- Quiescent Current(Iq)
- 40uA
- Number of Channels
- 6
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.304 g
Overview
The HT74HC04 inverters utilize advanced silicon-gate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits. The HT74HC04 is a triple buffered inverter. It has high noise immunity and the ability to drive 10 LS-TTL loads. The 74HC logic family is functionally as well as pin-out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.
Key features
- Typical propagation delay: 8ns
- Fan out of 10 LS-TTL loads
- Quiescent power consumption: 10μW maximum at room temperature
- Low input current: 1μA maximum
