JSMSEMIDatasheet (PDF)

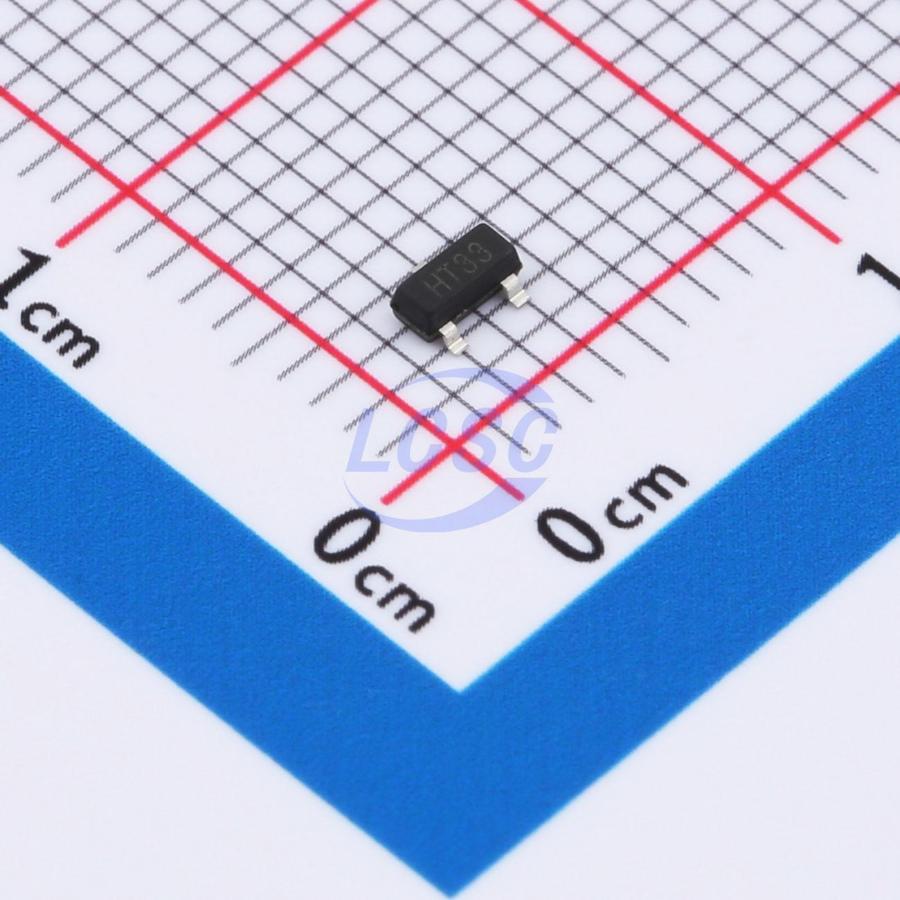

HT7533S-JSM
Linear Voltage Regulator IC Positive Fixed 1 Output 60mA 100mA SOT-23-3
SOT-23-3ROHS CompliantActive
LDO Low-Power High-Voltage Voltage Regulator
- Manufacturer
- JSMSEMI
- Manufacturer part #
- HT7533S-JSM
- Store part #
- C33960077
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,360 in stock
#C33960077
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.70 | ₹57.00 |
| 100+ | ₹4.59 | ₹459.00 |
| 300+ | ₹4.04 | ₹1,212.00 |
| 3,000+ | ₹3.63 | ₹10,890.00 |
| 6,000+ | ₹3.29 | ₹19,740.00 |
| 9,000+ | ₹3.12 | ₹28,080.00 |
10 × ₹5.70
₹57.00
excl. GST
₹67.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT7533S-JSM
₹57.00 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+70℃
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Output Current
- 60mA;100mA
- Operating Voltage
- 30V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
HT7533S is a low-power, high-voltage linear regulator fabricated using CMOS process technology, supporting a maximum input voltage of 30V and an output voltage range of 1.5V to 12.0V. It features high-accuracy output voltage, ultra-low quiescent current, and ultra-low dropout voltage.
Applications
- Battery and other power supply equipment
- Audio/video equipment
- Various communications equipment
- Security surveillance equipment
Key features
- Low quiescent current: 3μA
- Low dropout voltage: 0.1V typical
- Low temperature coefficient: 50ppm/°C typical
- Wide input voltage range: up to 30V
- High output voltage accuracy: ±3% tolerance
- Package types: TO-92, SOT89-3, SOT-23-3
