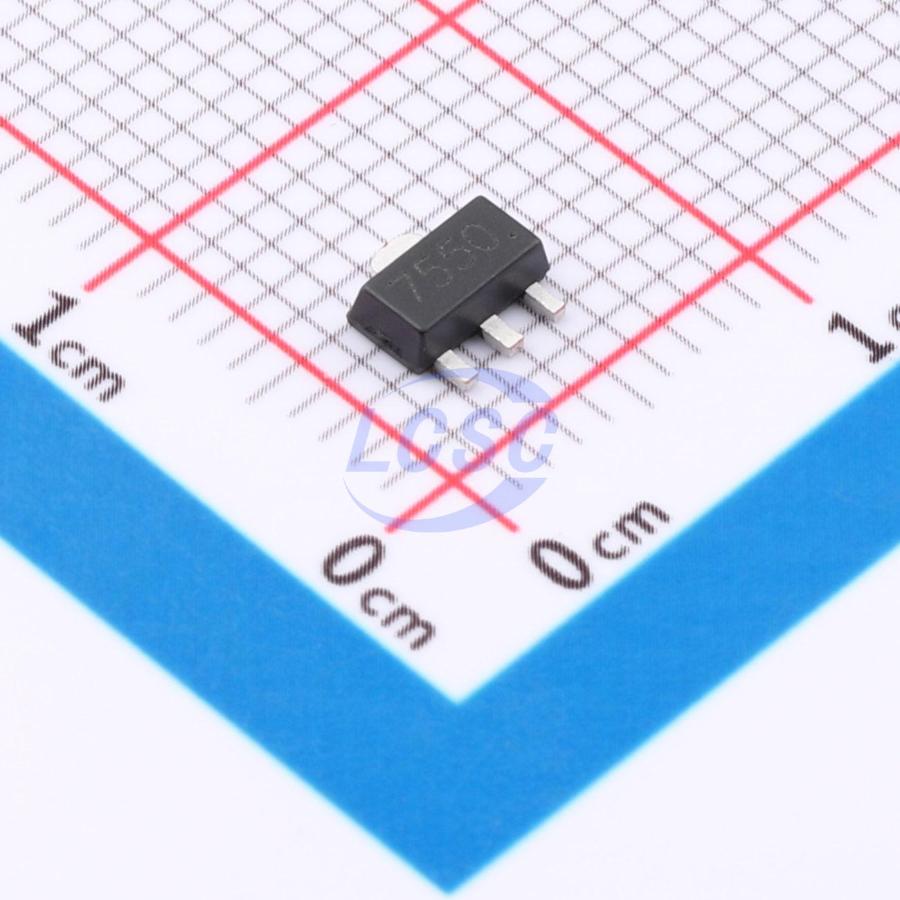

HT7550-1-36V
5V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89-3RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- HT7550-1-36V
- Store part #
- C53340891
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,340 in stock
#C53340891
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.16 | ₹103.20 |
| 200+ | ₹4.00 | ₹800.00 |
| 1,000+ | ₹3.36 | ₹3,360.00 |
| 2,000+ | ₹2.96 | ₹5,920.00 |
| 10,000+ | ₹2.63 | ₹26,300.00 |
| 20,000+ | ₹2.45 | ₹49,000.00 |
20 × ₹5.16
₹103.20
excl. GST
₹121.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT7550-1-36V
₹103.20 for 20 + GST
Specifications
- Output Voltage
- 5V
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Operating Voltage
- 35V
- Output Current
- 150mA
- Features
- Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.129 g
Overview
The HT75 series are micropower low-dropout regulators available in multiple output voltages. These devices feature very low quiescent current, thermal limiting protection under output short-circuit conditions, and an internal thermal shutdown circuit. Due to their low input-to-output voltage differential and low bias current specifications, these devices are ideal for battery-powered computing, consumer, and industrial equipment to extend battery life.
Applications
- Handheld instruments
- Battery-powered consumer products
- Test and measurement equipment
- Industrial power supplies
Key features
- Input voltage up to 36V
- Output current up to 150mA (typical)
- No-load current 3μA (typical)
- Output accuracy ±2%
- Compact packages: SOT89-3 and SOT23
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7550-3(TP)#C53340893TECH PUBLIC · SOT-89-3 | TECH PUBLIC | SOT-89-3 | 2,620 | ₹5.07 · 2,620 in stock | View |
 | HT7550H#C52817107TECH PUBLIC · SOT-89-3 | TECH PUBLIC | SOT-89-3 | 1,485 | ₹10.82 · 1,485 in stock | View |
 | TP375C50T3#C3021138TECH PUBLIC · SOT-89-3 | TECH PUBLIC | SOT-89-3 | 1,010 | ₹20.93 · 1,010 in stock | View |
