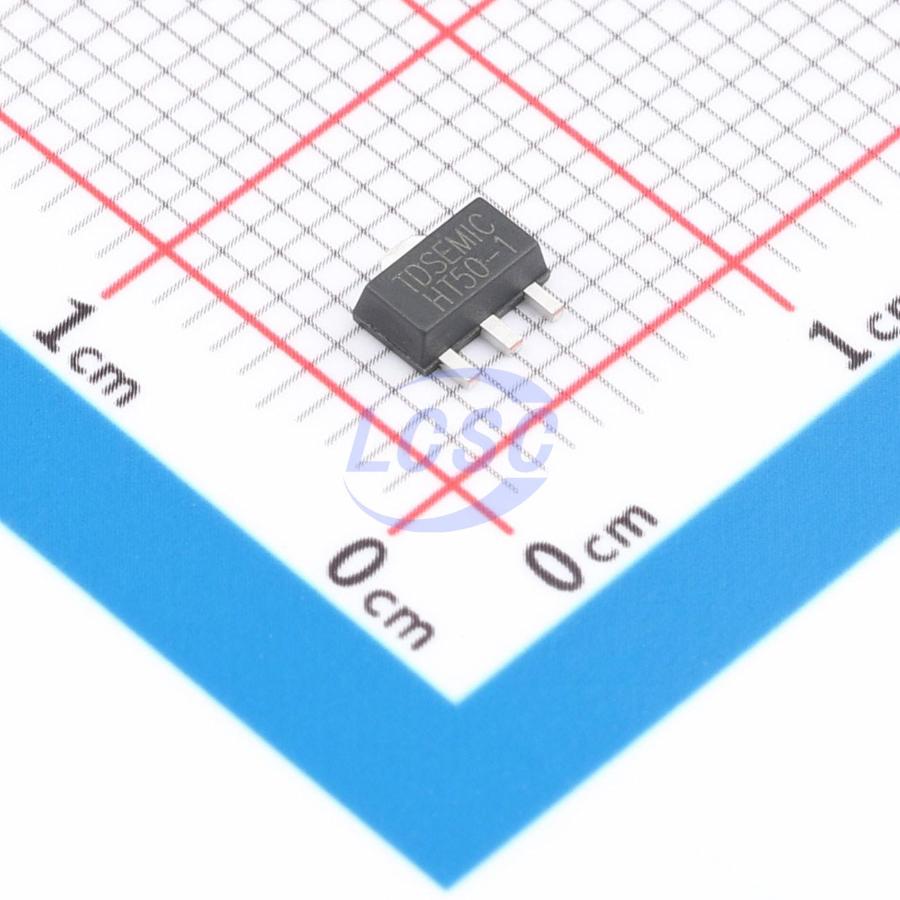

HT7550-1/H-TD(55V)
5V Positive Fixed SOT-89 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89RoHSActive
- Manufacturer
- TDSEMIC
- Manufacturer part #
- HT7550-1/H-TD(55V)
- Store part #
- C52195505
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,865 in stock
#C52195505
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.82 | ₹74.10 |
| 50+ | ₹11.74 | ₹587.00 |
| 150+ | ₹10.19 | ₹1,528.50 |
| 1,000+ | ₹9.02 | ₹9,020.00 |
| 2,000+ | ₹8.10 | ₹16,200.00 |
| 5,000+ | ₹7.63 | ₹38,150.00 |
5 × ₹14.82
₹74.10
excl. GST
₹87.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT7550-1/H-TD(55V)
₹74.10 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -45℃~+120℃
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Output Current
- 150mA
- Operating Voltage
- 55V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.147 g
Overview
The 75xx series is a low-dropout linear regulator utilizing CMOS technology, featuring a 150mA output current and a maximum input voltage of 55V. The series offers multiple fixed output voltage options ranging from 2.5V to 5.0V. With low dropout voltage and low quiescent current characteristics, it is well-suited for powering a wide range of audio, video, and communication equipment.
Applications
- Various power supply equipment
- Communication equipment
- Audio and video equipment
Key features
- Low power consumption, low dropout
- Low temperature coefficient
- Maximum input voltage: 55V
- Typical quiescent current: 2.5uA
- Output current: 150mA
- Output voltage accuracy: ±2%
- Package types: SOT23-3, SOT23-5, TO92, SOT89
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7550H-TD(55V)#C49023494TDSEMIC · SOT-89 | TDSEMIC | SOT-89 | 19,660 | ₹11.19 · 19,660 in stock | View |
 | HT7150-1/H-TD(55V)#C52195506TDSEMIC · SOT-89 | TDSEMIC | SOT-89 | 35,400 | ₹10.53 · 35,400 in stock | View |
 | HT7150H-TD(55V)#C49023490TDSEMIC · SOT-89 | TDSEMIC | SOT-89 | 21,100 | ₹9.86 · 21,100 in stock | View |
