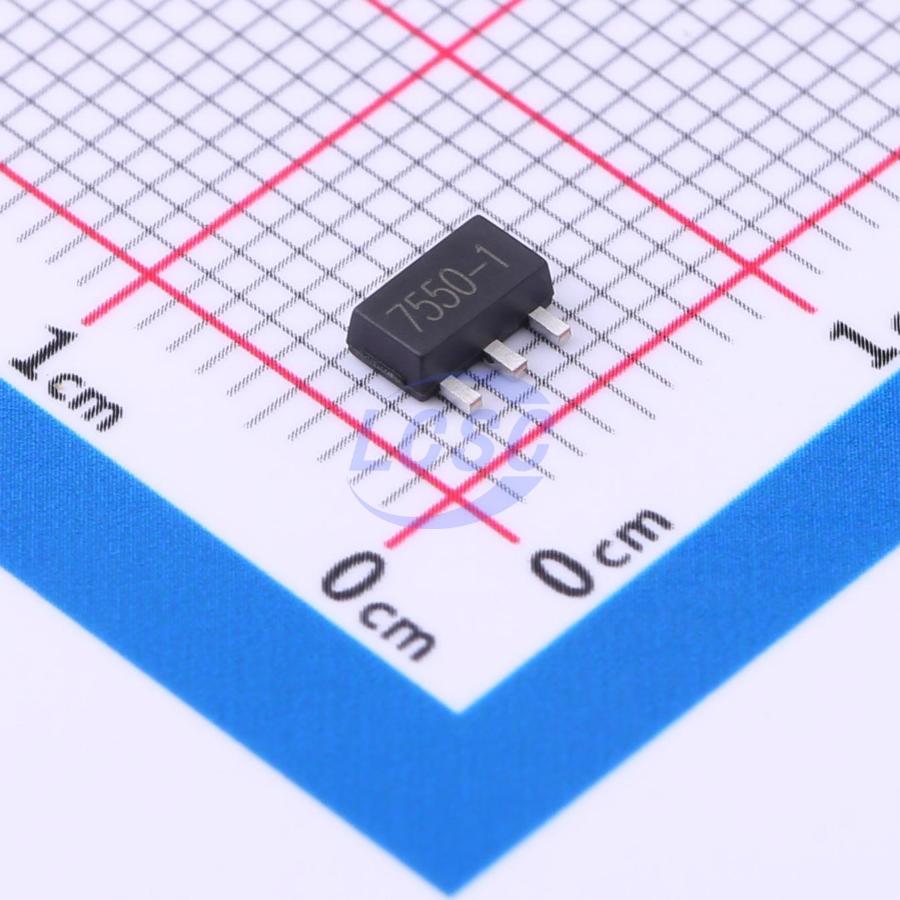

HT7550 30V
Linear Voltage Regulator IC Positive Fixed 1 Output 60mA 100mA SOT-89
SOT-89ROHS CompliantActive
LDO High-Voltage Regulator
- Manufacturer
- JSMSEMI
- Manufacturer part #
- HT7550 30V
- Store part #
- C5296737
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
39,810 in stock
#C5296737
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.27 | ₹92.70 |
| 100+ | ₹7.46 | ₹746.00 |
| 300+ | ₹6.55 | ₹1,965.00 |
| 1,000+ | ₹5.87 | ₹5,870.00 |
| 5,000+ | ₹5.33 | ₹26,650.00 |
| 10,000+ | ₹5.05 | ₹50,500.00 |
10 × ₹9.27
₹92.70
excl. GST
₹109.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT7550 30V
₹92.70 for 10 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+70℃@(Ta)
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Output Current
- 60mA;100mA
- Operating Voltage
- 30V
- Features
- Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.17 g
Overview
HT75XX-1 series are high-voltage LDO regulators fabricated using CMOS process, with a maximum input voltage of 30V and output voltage range of 1.5V~12.0V. Key features include high-accuracy output voltage, ultra-low supply current, and ultra-low dropout voltage.
Applications
- Battery and other power supply equipment
- Various communication devices
- Audio/video equipment
- Security surveillance equipment
Key features
- Low power consumption: ≤3μA
- Low dropout voltage: typical 0.1V
- Low temperature drift: typical 50ppm/°C
- High input voltage: up to 30V
- High output voltage accuracy: ±3% tolerance
- Package: TO-92, SOT89-3, SOT-23-3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AMS1117S-5.0#C917182JSMSEMI · SOT-89-3 | JSMSEMI | SOT-89-3 | 3,395 | ₹15.45 · 3,395 in stock | View |
 | 78L05#C5296726JSMSEMI · SOT-89-3L | JSMSEMI | SOT-89-3L | 1,68,420 | ₹4.80 · 1,68,420 in stock | View |
