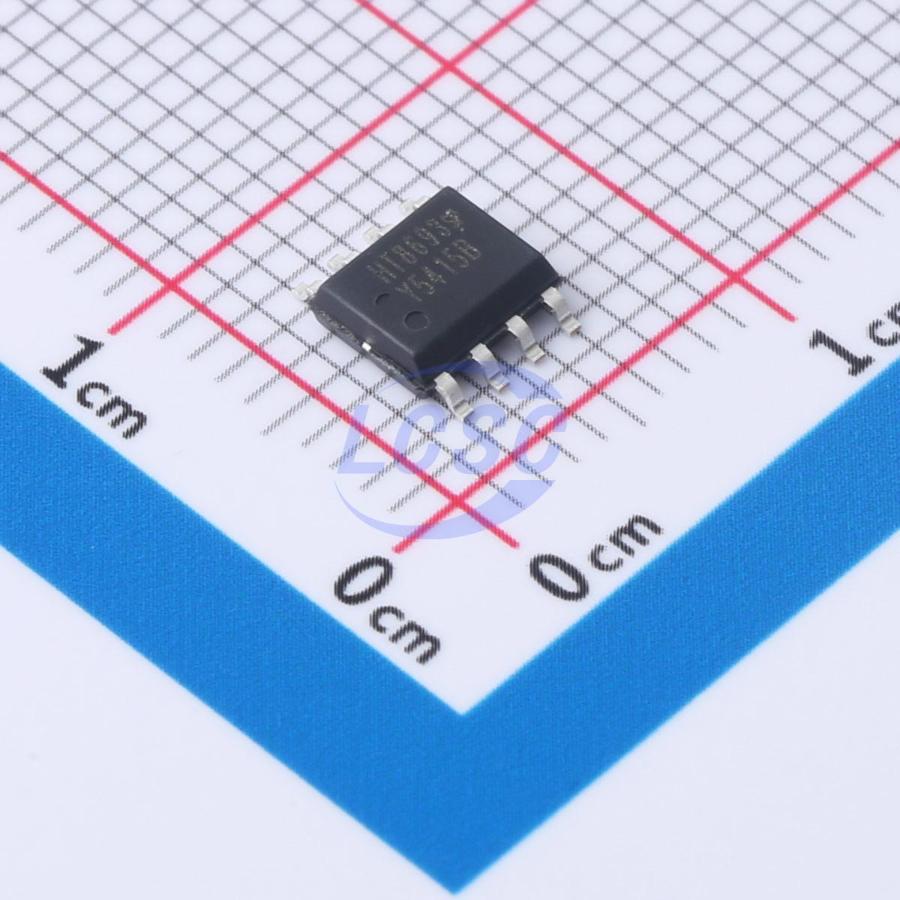

HT8693B5SPER
3V~9V 1-Channel SOP8L-PP Audio Amplifiers RoHS
10W anti-pop mono Class-D audio power amplifier and 9W mono Class-AB audio power amplifier
- Manufacturer
- Jiaxing Heroic Elec Tech
- Manufacturer part #
- HT8693B5SPER
- Store part #
- C6705235
- Package / case
- SOP8L-PP
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,665 in stock
#C6705235
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹51.25 | ₹256.25 |
| 50+ | ₹40.33 | ₹2,016.50 |
| 150+ | ₹35.64 | ₹5,346.00 |
| 500+ | ₹29.79 | ₹14,895.00 |
| 2,500+ | ₹27.19 | ₹67,975.00 |
| 5,000+ | ₹25.63 | ₹1,28,150.00 |
5 × ₹51.25
₹256.25
excl. GST
₹302.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HT8693B5SPER
₹256.25 for 5 + GST
Specifications
- Voltage - Supply
- 3V~9V
- Quiescent Current
- 10.5mA;31mA
- Features
- Filterless architecture;Built-in audio processing;Enable/shutdown function;ESD protection;Automatic mute/no-noise switch
- Total Harmonic Distortion + Noise (THD+N)
- 0.15%
- Operating Temperature
- -40℃~+85℃
- Signal-to-Noise Ratio
- 91dB;97dB
- Number of Inputs
- 1 Pair Differential Inputs
- Speaker Channels
- 1-Channel
- Efficiency
- 90%;94%;80%
- Output Power
- 10W×1@4Ω;9.2W×1@4Ω;5.3W×1@8Ω;5.2W×1@8Ω
- Class
- Class D;Class AB
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.152 g
Overview
HT8693 is an audio power amplifier featuring both Class-D and Class-AB operating modes. In Class-D mode, it delivers a continuous output power of 10W at VDD=8.5V, THD+N=10%, with a 4Ω load; in Class-AB mode, it delivers 9W under the same conditions. In Class-D mode, the HT8693 incorporates an Anti-Clipping Function (ACF) output control that detects and suppresses output clipping distortion (audio breakup) caused by excessively large input music or voice signal amplitudes. This significantly improves audio quality, creates a comfortable listening experience, and protects the speaker from overload damage. An ACF-Off mode is also configurable. The HT8693 supports seamless switching between Class-AB and Class-D modes, allowing users to switch to Class-AB mode at any time when encountering EMI interference from Class-D amplifier operation. In addition, the HT8693 features a built-in shutdown function that minimizes standby current, along with integrated output overcurrent protection, on-chip over-temperature protection, and supply undervoltage protection.
Applications
- Bluetooth speakers
- Portable speakers
- 2.1 channel mini speakers
- Amplifiers
- iPhone/iPod/iPod docking
- Trolley speakers
- Tablets, laptops
- Portable game consoles
- Small-size LCD TVs/monitors
- MP4 players, navigation devices
Key features
- Anti-Clipping Function (ACF)
- Filterless digital modulation, direct speaker drive
- Output power: 10W (Class D, VDD = 8.5V, RL = 4Ω, THD+N = 10%); 9W (Class AB, VDD = 8.5V, RL = 4Ω, THD+N = 10%)
- Dual operating modes: Class D and Class AB
- Overcurrent protection
- Overtemperature protection
