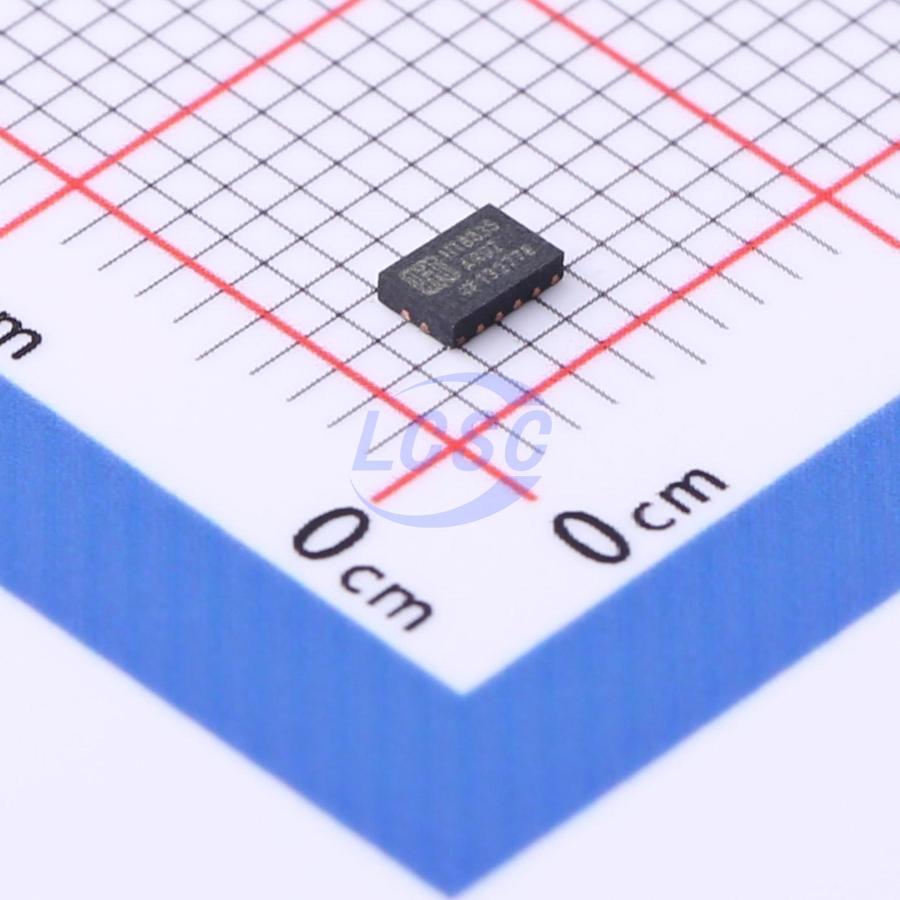

HT8835ARDZ
WSON-12-EP(2x3) Motor Drivers, Controllers
Dual Low-Voltage H-Bridge IC
- Manufacturer
- HTCSEMI
- Manufacturer part #
- HT8835ARDZ
- Store part #
- C2848981
- Package / case
- WSON-12-EP(2x3)
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,357 in stock
#C2848981
Stock & price checked 34 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹287.92 | ₹287.92 |
| 10+ | ₹245.34 | ₹2,453.40 |
| 30+ | ₹218.82 | ₹6,564.60 |
| 100+ | ₹191.45 | ₹19,145.00 |
| 500+ | ₹179.05 | ₹89,525.00 |
| 1,000+ | ₹173.84 | ₹1,73,840.00 |
1 × ₹287.92
₹287.92
excl. GST
₹339.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT8835ARDZ
₹287.92 for 1 + GST
Specifications
- Drive Type
- Bipolar Driver
- Number of H-bridges
- 2
- Features
- Built-in charge pump;Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout
- Technology
- Yes
- Operating Temperature
- -40℃~+85℃
- Output Current
- 1.5A
- Control Voltage
- 2V~7V
- RDS(on)
- 305mΩ
- Motor Drive Voltage(Vm)
- 0V~11V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.15 g
Overview
The HT8835 provides an integrated motor driver solution for cameras, consumer products, toys, and other low-voltage or battery-powered motion control applications. The device has two Hbridge drivers, and drives two DC motors or one stepper motor, as well as other devices like solenoids. The output driver block for each consists of N-channel power MOSFETs configured as an H-bridge to drive the motor winding. An internal charge pump generates gate drive voltages. The HT8835 supplies up to 1.5A of output current per H-bridge and operates on a motor power supply voltage from 0V to 11V, and a device power supply voltage of 2V to 7V. PHASE/ENABLE and IN/IN interfaces are compatible with industry-standard devices. Internal shutdown functions are provided for overcurrent protection, short circuit protection, under voltage lockout, and over temperature. The HT8835 is packaged in a 12-pin DFN package.
Applications
- Battery-Powered: Cameras
- DSLR Lenses
- Consumer Products
- Toys
- Robotics
- Medical Devices
Key features
- Dual H-Bridge Motor Driver Capable of Driving Two DC Motors or One Stepper Motor
- Low-MOSFET ON-Resistance: HS+LS 305 mΩ
- 1.5 A Maximum Drive Current Per H-Bridge
- Configure Bridges Parallel for 3 A Drive Current
- Separate Motor and Logic-Supply Pins
- 0V to 11V Motor-Operating Supply-Voltage
- 2V to 7V Logic Supply-Voltage
- Flexible PWM or PHASE/ENABLE Interface
- Low-Power Sleep Mode With 95nA Maximum Supply Current
- DFN 2mm x 3mm -12L Package
