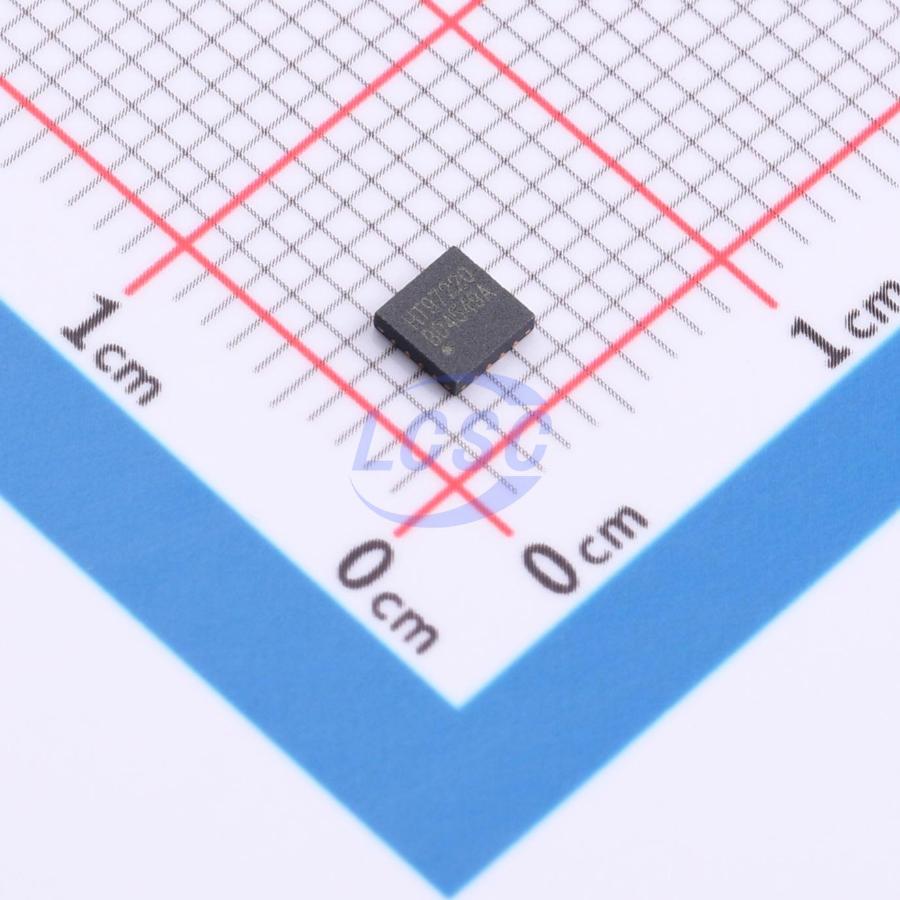

HT97220LSQER

HT97220(L) is a differential/single-ended input, direct-drive headphone amplifier/line driver. At 5V supply, the device delivers 125mW output power into a 32Ω load. Gain is adjustable via external resistors (an internal fixed 6dB gain version is available upon prior customization). The device achieves excellent THD+N performance across the audio bandwidth. Two startup time versions are available: the headphone application version has a startup time of 4.2ms, while the set-top box version (available upon prior customization) has a startup time of 130ms. An integrated charge pump generates a negative voltage; the output stage of the amplifier is powered by the positive supply and the charge pump output. This dual-supply configuration biases the output at zero potential, eliminating the need for the large, distortion-prone output coupling capacitors required in conventional designs. The device is free from click/pop noise during shutdown and startup. It is offered in a 3mm×3mm, 16-pin QFN-PP package, with an operating temperature range of -40℃ to +85℃.

Applications

• Headphones
• Multimedia audio interface
• Set-top box
• Blu-ray and DVD players
• LCD TV

Key features

• DC-blocking capacitor-free output — saves board space, superior bass fidelity
• Zero click/pop noise at shutdown and startup
• Ultra-low THD+N: as low as 0.001%
• Low noise performance, VN: 7 μV
• Differential or single-ended input support
• Wide supply voltage range: 2.5V ~ 5.2V
• Output power: 125mW (fIN = 1kHz, VDD = 5V, RL = 32Ω, THD+N = 1%)
• Lead-free QFN16L-PP 3mm×3mm package with minimal BOM
