HITENXDatasheet (PDF)

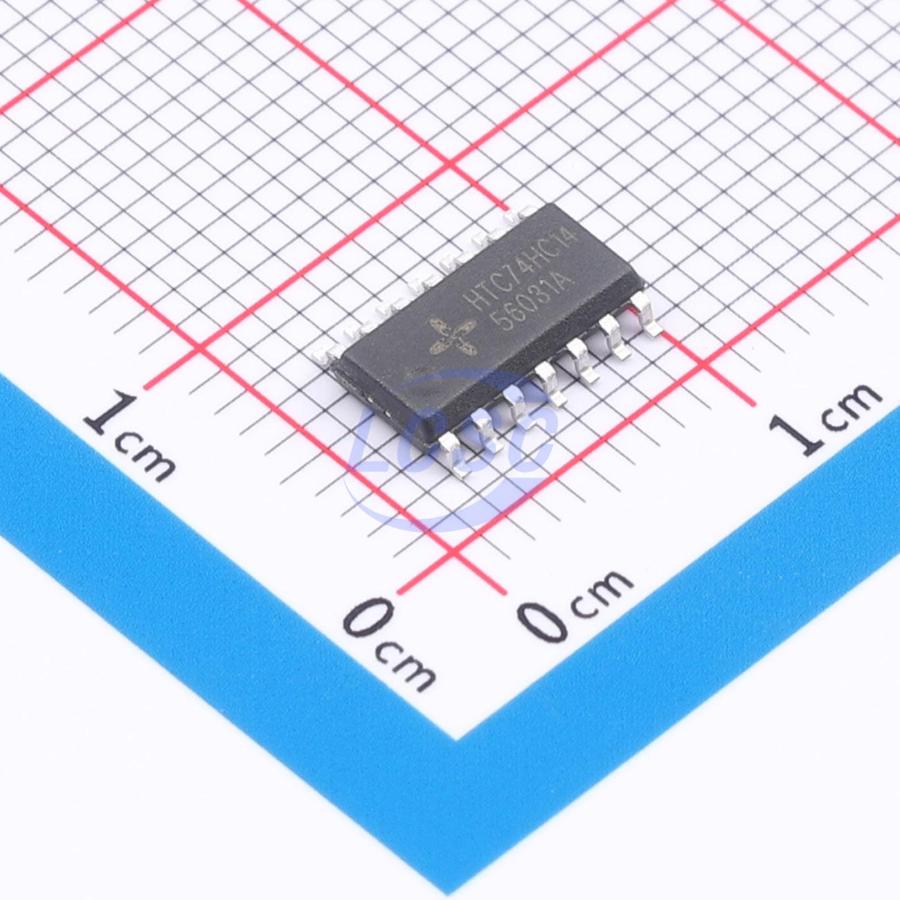

HTC74HC14S-R
Schmitt trigger 20uA -500mV~7V 6 25ns SOP-14 Gates and Inverters
SOP-14RoHSActive
- Manufacturer
- HITENX
- Manufacturer part #
- HTC74HC14S-R
- Store part #
- C54565482
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,870 in stock
#C54565482
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.02 | ₹90.20 |
| 100+ | ₹7.18 | ₹718.00 |
| 300+ | ₹6.26 | ₹1,878.00 |
| 1,000+ | ₹5.57 | ₹5,570.00 |
| 4,000+ | ₹5.01 | ₹20,040.00 |
| 8,000+ | ₹4.74 | ₹37,920.00 |
10 × ₹9.02
₹90.20
excl. GST
₹106.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
HTC74HC14S-R
₹90.20 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74HC
- Input Logic Level - Low
- 1.5V
- Input Logic Level - High
- 3.5V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 3.98V
- Quiescent Current(Iq)
- 20uA
- Voltage - Supply
- -500mV~7V
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 6
- Output Logic Level - Low
- 0V~330mV
- Propagation Delay
- 25ns
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 1 g
Overview
The HTC74HC/HCT14 is a hex inverter with Schmitt-trigger inputs. The device features reduced input threshold levels for TTL logic level interfacing. Inputs include clamping diodes, enabling connection to voltages exceeding VCC via current-limiting resistors. The Schmitt-trigger inputs convert slowly changing input signals into clean, bounce-free output signals.
Key features
- Input levels:
- HTC74HC14: CMOS level
- HTC74HCT14: TTL level
- Low power consumption
- Operating temperature range: -40°C ~ +125°C
- ESD protection:
- HBM: exceeds 3500V per ANSI/ESDA/JEDEC JS-001 2023
- CDM: exceeds 2000V per ANSI/ESDA/JEDEC JS-002 2022
- Latch-up performance ≤ 250mA
- Package options: DIP14/SOP14/TSSOP14
