HITENXDatasheet (PDF)

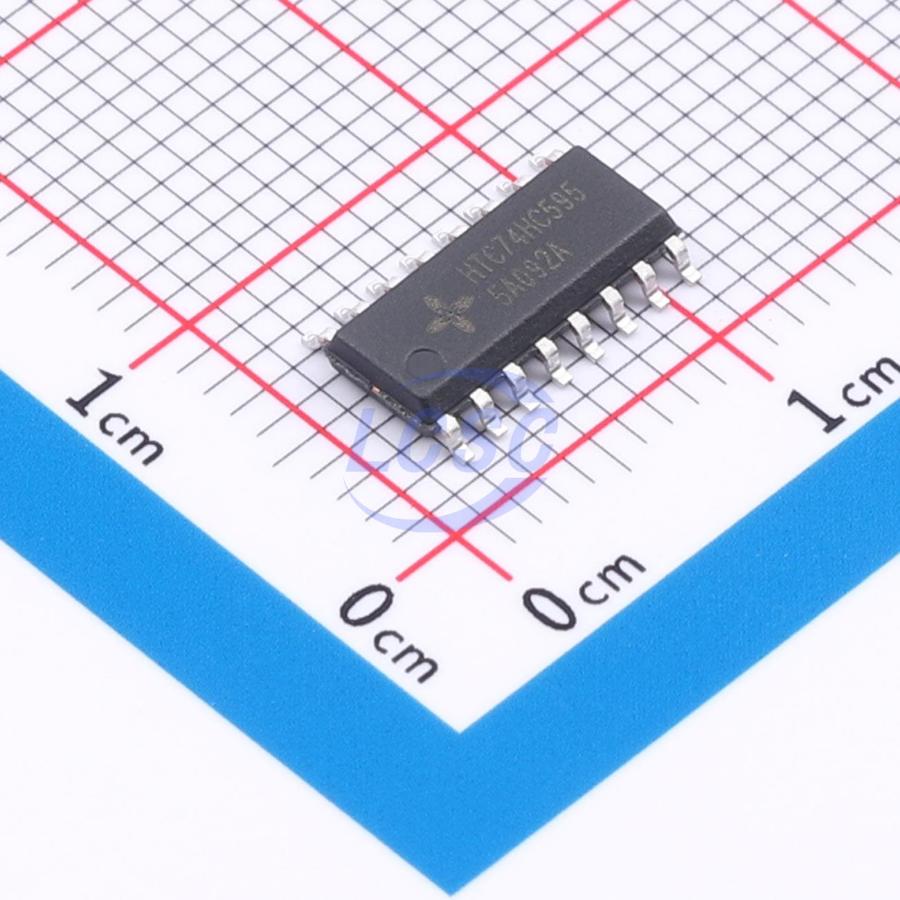

HTC74HC595S-R
2V~6V 1 35mA 14ns@6V,50pF Serial-to-Parallel or Serial SOP-16 Shift Registers
SOP-16RoHSActive
- Manufacturer
- HITENX
- Manufacturer part #
- HTC74HC595S-R
- Store part #
- C54565480
- Package / case
- SOP-16
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,000 in stock
#C54565480
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.77 | ₹87.70 |
| 100+ | ₹6.99 | ₹699.00 |
| 300+ | ₹6.09 | ₹1,827.00 |
| 1,000+ | ₹5.41 | ₹5,410.00 |
| 4,000+ | ₹4.88 | ₹19,520.00 |
| 8,000+ | ₹4.60 | ₹36,800.00 |
10 × ₹8.77
₹87.70
excl. GST
₹103.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
HTC74HC595S-R
₹87.70 for 10 + GST
Specifications
- Operating temperature
- -40℃~+125℃
- Pd - Power Dissipation
- 500mW
- Voltage - Supply
- 2V~6V
- Output Type
- Push-Pull
- Current - Output High(IOH)
- 7.8mA
- Series
- 74HC
- Current - Output Low(IOL)
- 7.8mA
- Number of Elements
- 1
- Output Current
- 35mA
- Propagation Delay
- 14ns@6V,50pF
- Function
- Serial-to-Parallel or Serial
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 1 g
Overview
The HTC74HC595 contains an 8-bit shift register with an asynchronous reset input and an 8-bit latch with outputs. Serial data input (SER) is shifted into the internal shift register on each low-to-high transition of the shift clock. The latch captures 8 bits of data from the shift register on the low-to-high transition of the latch clock. A serial output is also available from the shift register.
Key features
- Operating voltage range: 2 ~ 6V
- High noise immunity
- Output compatible with CMOS and TTL
- Operating temperature range: -40 ~ +125°C
- Package options: DIP-16, SOP-16, TSSOP-16, and QFN-16
- Latch-up performance ≤ 250 mA
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 2023 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS-002 2022 exceeds 2000 V
