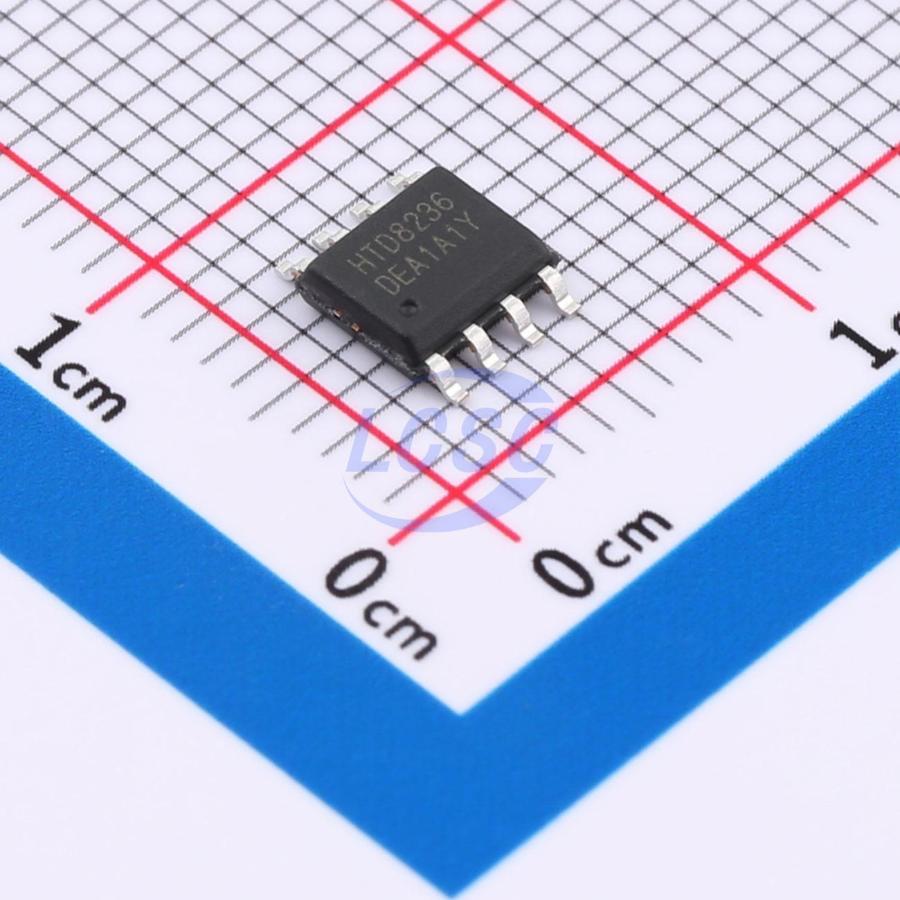

HTD8236ESD
ESOP-8 Motor Drivers, Controllers RoHS
HTD8236 DC Brushed Motor Driver: Single-channel H-bridge, Wide voltage supply from 5.5V to 36V, Low RDS(ON) resistance, 6A peak drive output
- Manufacturer
- Jiaxing Heroic Elec Tech
- Manufacturer part #
- HTD8236ESD
- Store part #
- C22391194
- Package / case
- ESOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,661 in stock
#C22391194
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹73.66 | ₹73.66 |
| 10+ | ₹58.68 | ₹586.80 |
| 30+ | ₹51.07 | ₹1,532.10 |
| 100+ | ₹43.69 | ₹4,369.00 |
| 500+ | ₹39.33 | ₹19,665.00 |
| 1,000+ | ₹36.95 | ₹36,950.00 |
1 × ₹73.66
₹73.66
excl. GST
₹86.92 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
HTD8236ESD
₹73.66 for 1 + GST
Specifications
- Number of H-bridges
- 1
- Features
- Interleaved conduction protection;Current sensing/regulation function;Active braking function
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 20uA
- Output Current
- 3A
- Peak Current
- 6A
- RDS(on)
- 200mΩ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.175 g
Overview
HTD8236 is a DC brushed motor driver capable of bidirectionally controlling a motor with a peak current of up to 6A. By utilizing current decay modes, motor speed can be controlled via PWM of the input signals, with a low-power sleep mode also available. HTD8236 integrates synchronous rectification to significantly reduce system power dissipation requirements. Internal protection features include overcurrent protection, short-circuit protection, undervoltage lockout, and overtemperature protection. The HTD8236N provides a fault detection output pin. HTD8236 is offered in an ESOP8 package with an exposed pad for improved thermal dissipation, and is a lead-free, RoHS-compliant product.
Applications
- Printers and office automation equipment
- Appliances
- Smart home
- Industrial control
Key features
- Single-channel H-bridge motor driver
- Wide supply voltage range, 5.5V - 36V
- Low RDS(ON), 200mΩ (HS + LS)
- 6A peak drive output, 4A continuous drive output
- PWM control interface
- Low-power sleep mode support
