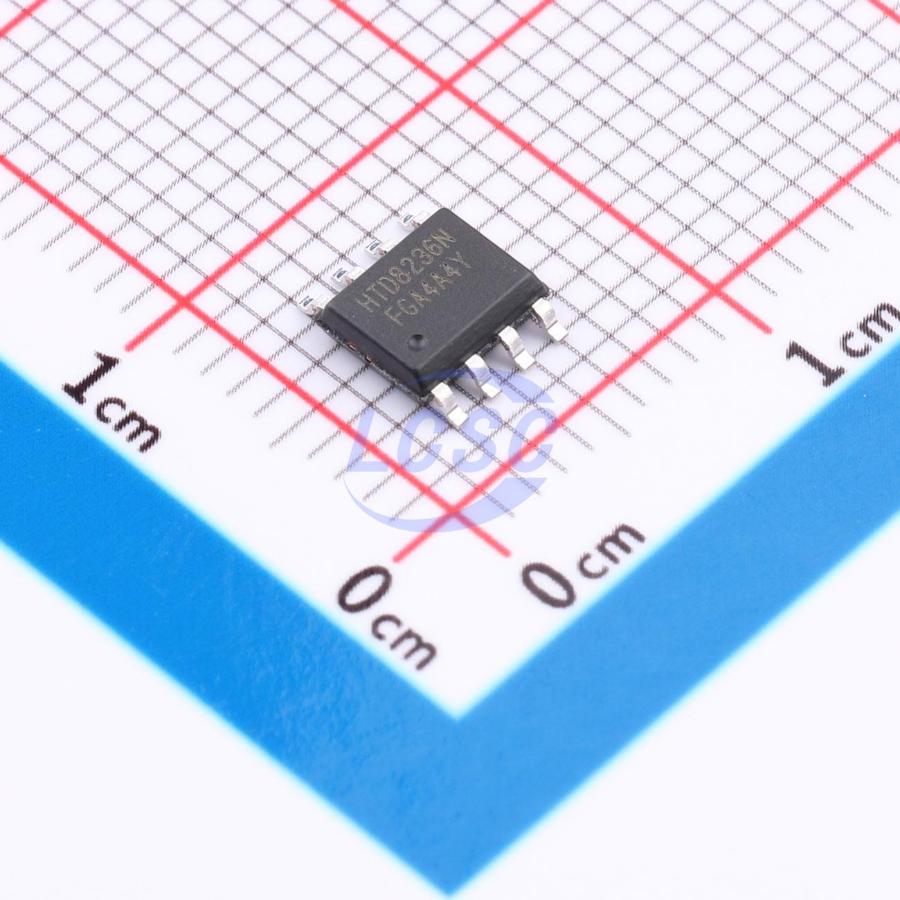

HTD8236NESD
5.5V~36V ESOP-8 Motor Drivers, Controllers
- Manufacturer
- Jiaxing Heroic Elec Tech
- Manufacturer part #
- HTD8236NESD
- Store part #
- C5445020
- Package / case
- ESOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,278 in stock
#C5445020
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹81.31 | ₹81.31 |
| 10+ | ₹65.91 | ₹659.10 |
| 30+ | ₹58.12 | ₹1,743.60 |
| 100+ | ₹50.53 | ₹5,053.00 |
| 500+ | ₹45.97 | ₹22,985.00 |
| 1,000+ | ₹43.59 | ₹43,590.00 |
1 × ₹81.31
₹81.31
excl. GST
₹95.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
HTD8236NESD
₹81.31 for 1 + GST
Specifications
- Number of H-bridges
- 1
- Features
- Interleaved conduction protection;Current sensing/regulation function;Active braking function
- Voltage - Supply
- 5.5V~36V
- Technology
- Yes
- Supply Current (Iq)
- 20uA
- Output Current
- 3A
- Peak Current
- 4.5A
- RDS(on)
- 200mΩ
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.125 g
Overview
HTD8236 is a DC brushed motor driver capable of bidirectional motor control with a peak current of up to 6A. It employs current decay mode to control motor speed via PWM of input signals and features a low-power sleep mode. The device integrates synchronous rectification to significantly reduce system power consumption. Internal protection features include overcurrent protection, short-circuit protection, undervoltage lockout, and overtemperature protection. The HTD8236N variant provides a fault detection output pin. The HTD8236 is available in an ESOP8 package with an exposed pad for improved thermal dissipation, is lead-free, and complies with environmental standards.
Applications
- Printers and office automation equipment
- Appliances
- Smart home
- Industrial control
Key features
- Single-channel H-bridge motor driver
- Wide supply voltage range: 5.5V ~ 36V
- Low RDS(on): 200mΩ (high-side + low-side)
- 6A peak drive output, 4A continuous drive output
- PWM control interface
- Low-power sleep mode support
