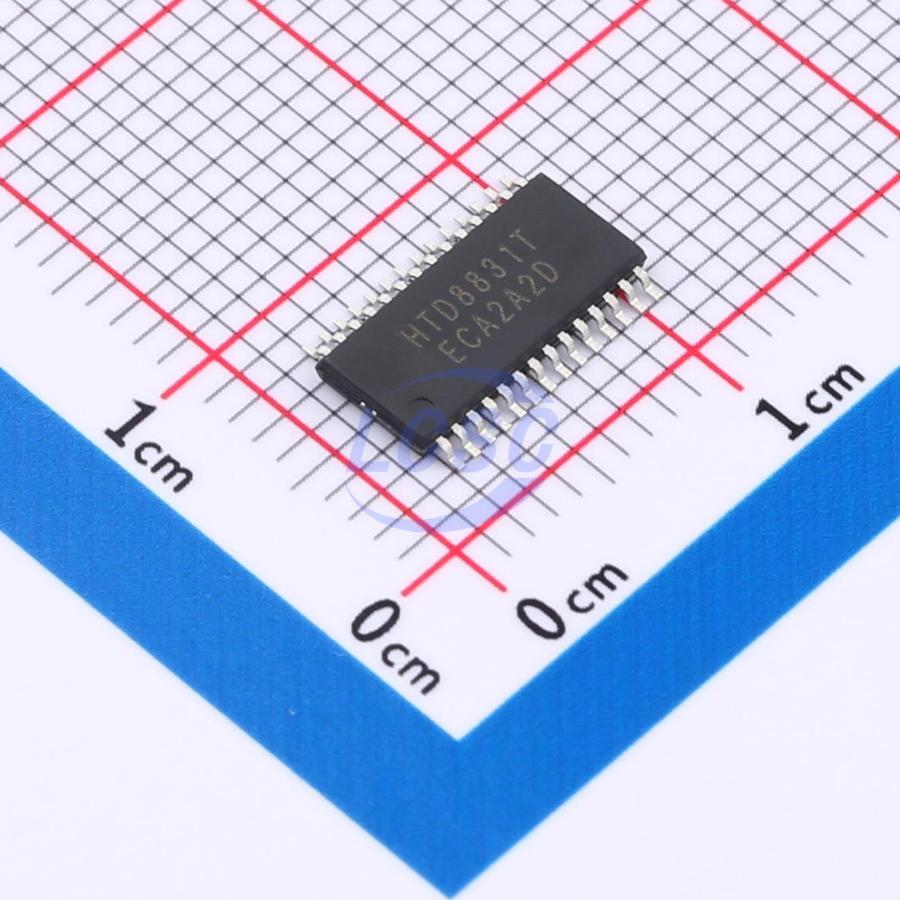

HTD8831TTPN
ETSSOP-28 Motor Drivers, Controllers RoHS
HTD8831T Dual-Channel H-Bridge Motor Driver: Integrated Motor Drive Solution
- Manufacturer
- Jiaxing Heroic Elec Tech
- Manufacturer part #
- HTD8831TTPN
- Store part #
- C22391202
- Package / case
- ETSSOP-28
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,867 in stock
#C22391202
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹67.58 | ₹67.58 |
| 10+ | ₹52.80 | ₹528.00 |
| 30+ | ₹46.50 | ₹1,395.00 |
| 100+ | ₹38.68 | ₹3,868.00 |
| 500+ | ₹34.98 | ₹17,490.00 |
| 1,000+ | ₹33.04 | ₹33,040.00 |
1 × ₹67.58
₹67.58
excl. GST
₹79.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HTD8831TTPN
₹67.58 for 1 + GST
Specifications
- Drive Type
- Bipolar Driver
- Number of H-bridges
- 2
- Features
- Motor step-out prevention function;Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Built-in charge pump;Dead-time / shoot-through protection
- Technology
- Yes
- Interface
- Parallel
- Operating Temperature
- -40℃~+85℃
- Step Resolution
- 1;2;4
- Output Current
- 1A
- Control Voltage
- 0V~5.25V
- RDS(on)
- 850mΩ
- Motor Drive Voltage(Vm)
- 8V~36V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.287 g
Overview
HTD8831T provides an integrated motor drive solution for printers, scanners, and other mechatronic applications. The HTD8831T features two H-bridge drivers with a maximum drive output of 36V ±1.5A, capable of driving two brushed DC motors or one bipolar stepper motor. The bipolar stepper motor can operate in full-step, 2-microstep, and 4-microstep modes, or achieve higher microstepping through software implementation. The power output stage of each H-bridge in the HTD8831T consists of N-type power MOSFETs, referred to as the H-bridge driver. Each bridge incorporates rectification and current limiting circuitry. The device uses an industry-standard parallel digital control interface with programmable decay modes. Internal shutdown functions include overcurrent protection, short-circuit protection, undervoltage lockout, and overtemperature protection, with a dedicated fault detection output pin. The HTD8831T is offered in an ETSSOP28 package with an exposed pad for enhanced thermal dissipation. It is a lead-free product compliant with environmental requirements.
Applications
- POS printers
- Security cameras
- Office automation equipment
- Gaming consoles
- Robots
Key features
- Dual-channel H-bridge motor driver
- Drives two brushed DC motors or one stepper motor
- Low RDS(ON) resistance, 850mΩ (HS + LS)
- 1.5A drive output
- Wide supply voltage range, 8V - 36V
- 2-bit current control with 4 current levels
- Industry-standard parallel digital control interface
- PWM winding current regulation and limiting
- Internal 3.3V reference voltage output
- Over-temperature shutdown
- Short-circuit protection
- Undervoltage lockout (UVLO) protection
