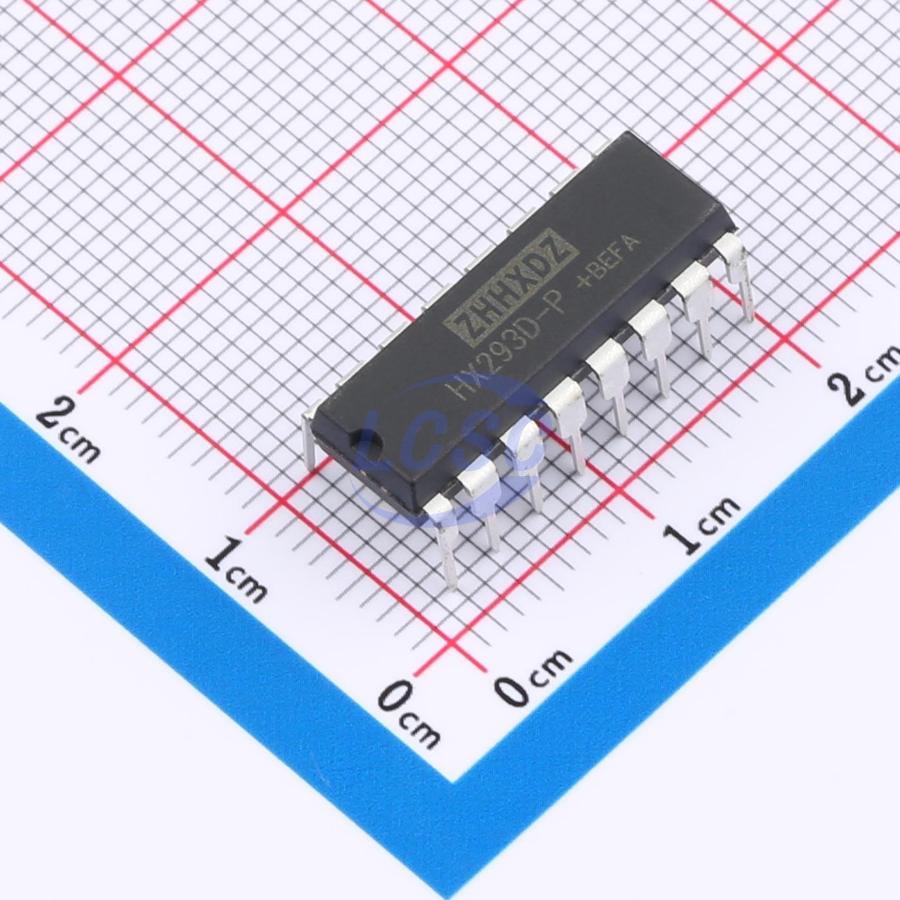

HX293D-P
4.5V~36V 600mA 600mA DIP-16 Gate Drivers
- Manufacturer
- ZHHXDZ
- Manufacturer part #
- HX293D-P
- Store part #
- C49339803
- Package / case
- DIP-16
- Category
- Gate Drivers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
995 in stock
#C49339803
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹52.31 | ₹261.55 |
| 50+ | ₹41.46 | ₹2,073.00 |
| 150+ | ₹36.69 | ₹5,503.50 |
| 500+ | ₹30.83 | ₹15,415.00 |
| 2,500+ | ₹28.22 | ₹70,550.00 |
| 5,000+ | ₹26.70 | ₹1,33,500.00 |
5 × ₹52.31
₹261.55
excl. GST
₹308.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 25 per tube
HX293D-P
₹261.55 for 5 + GST
Specifications
- Input Logic Level - Low
- 1.5V
- Quiescent Current
- 2mA
- Input Logic Level - High
- 2.3V
- Voltage - Supply
- 4.5V~36V
- Operating Temperature
- -40℃~+150℃
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 250ns
- Fall Time
- 250ns
- Features
- Enable shutdown
- Current - Output High(IOH)
- 600mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.6 g
Overview
This device is a monolithic integrated high-voltage, high-current quad channel driver designed to accept standard DTL or TTL logic levels. It is capable of driving inductive loads such as relays, solenoids, DC motors, and stepper motors, as well as switching power transistors. To facilitate use in both bridge configurations, each pair of channels is provided with an enable input. In addition, the logic circuit features a separate power supply input, allowing operation at lower voltages. Clamp diodes are also included internally to enhance performance. This device is suitable for switching operations at frequencies up to 5 kHz.
Key features
- 600mA output current capability per channel
- 1.2A peak output current per channel (non-repetitive)
- Enable function
- Thermal shutdown protection
- Logic "0" input voltage up to 1.5V (high noise immunity)
- Internal clamp diodes
