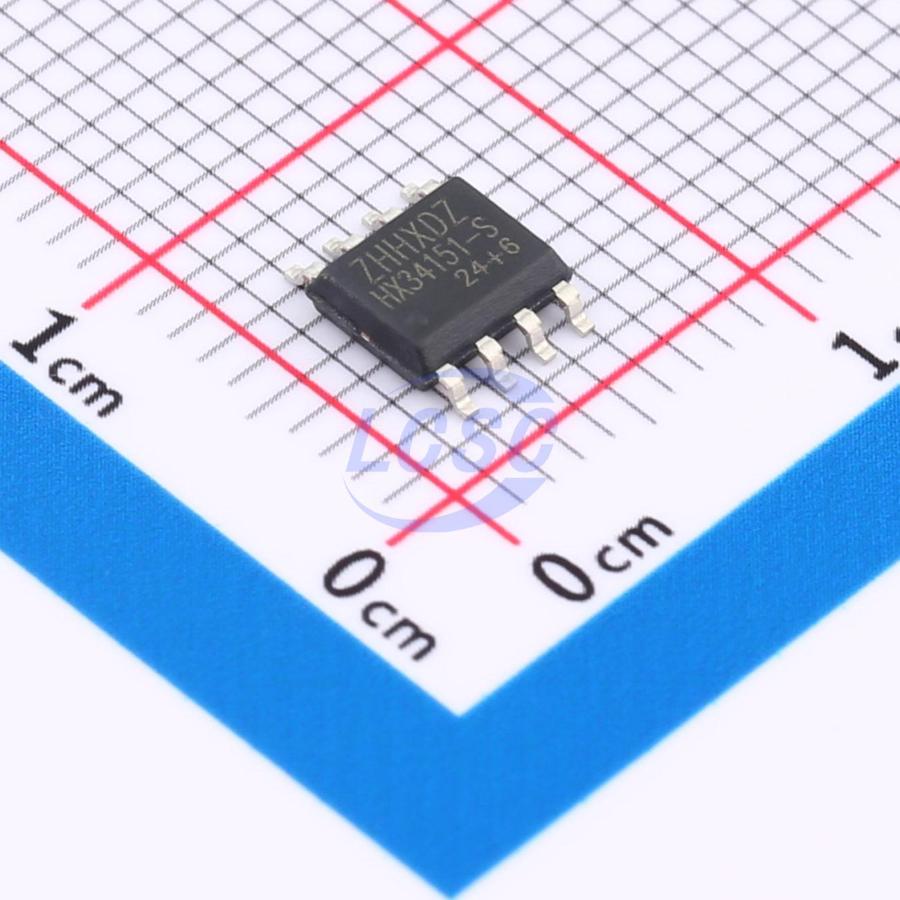

HX34151-S
4.5V~18V SOP-8 Gate Drivers RoHS
Dual 1.5A-Peak Low-Side MOSFET Drivers
- Manufacturer
- ZHHXDZ
- Manufacturer part #
- HX34151-S
- Store part #
- C41399169
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,359 in stock
#C41399169
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹78.39 | ₹78.39 |
| 10+ | ₹63.38 | ₹633.80 |
| 30+ | ₹55.78 | ₹1,673.40 |
| 100+ | ₹48.38 | ₹4,838.00 |
| 500+ | ₹43.95 | ₹21,975.00 |
| 1,000+ | ₹41.62 | ₹41,620.00 |
1 × ₹78.39
₹78.39
excl. GST
₹92.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HX34151-S
₹78.39 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2.4V
- Voltage - Supply
- 4.5V~18V
- Operating Temperature
- 0℃~+70℃
- Driven Configuration
- Low Side
- Rise Time
- 18ns
- Fall Time
- 15ns
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.298 g
Overview
The HX34152-S/HX34152-P series of dual low-side MOSFET drivers are manufactured on a BiCMOS/DMOS process, providing efficient power usage and high reliability. These drivers translate input logic levels from TTL or CMOS to output voltage levels that swing within 25 mV of the positive supply or ground. The HX34152-S/HX34152-P drivers are available in three configurations: dual inverting, dual non-inverting, and one inverting plus one non-inverting output. They are designed to replace the HX34152-S/HX34152-P, offering improved electrical performance and ruggedness.
Applications
- MOSFET Driver
- Piezoelectric Transducer Driver
- Coax Cable Driver
- Clock Line Driver
Key features
- 1.5A-Peak Output Current
- Latch-Up Protected to >500 mA Reverse Current
- 4.5V to 18V Operating Range
- Switches 1000 pF in 25 ns
- Low Quiescent Supply Current
- 4 mA at Logic 1 Input
- 400 μA at Logic 0 Input
- Matched Rise and Fall Times
- 7Ω Output Impedance
- <40 ns Typical Delay
- Logic-Input Protection to –5V
- Logic-Input Threshold Independent of Supply Voltage
- 6 pF Typical Equivalent Input Capacitance
- 25 mV Max. Output Offset from Supply or Ground
