HX3483-S

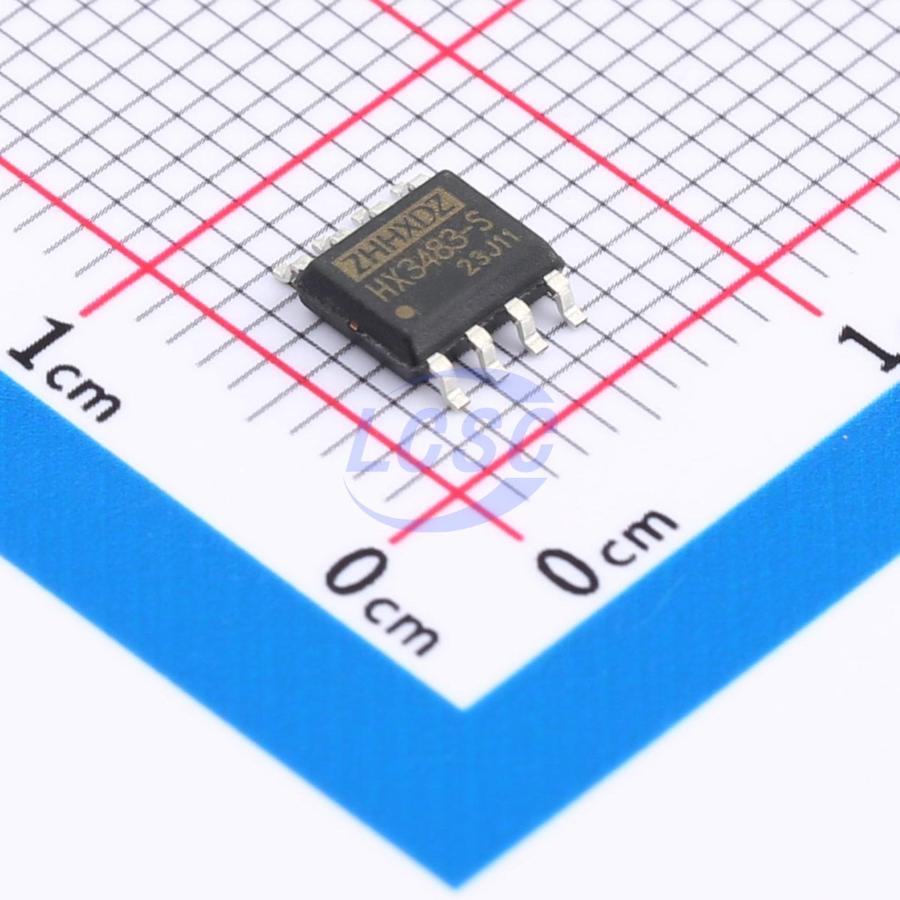

The HX3483- S is an RS485/RS- 422 transceiver circuit equipped with a 3.3V/ 5V voltage supply, half- duplex communication, and ± 15 kV ESD protection. This circuit encompasses a driver and a receiver. The HX3483- S showcases enhanced swing rate limits, which assist in minimizing output electromagnetic interference (EMI) and alleviating reflections caused by mismatched terminal connections, facilitating error- free data transfer rates of up to 500Mbps. The receiver input impedance of the HX3483- S chip is 1/8 unit load, enabling the achievement of up to 256 transceivers for half- duplex communication on the bus. All driver outputs provide ± 15 kV human mode ESD protection. The chip is packaged in SOP8 and is capable of operating within a temperature range from - 40 °C to +125 °C

Applications

• Industrial control
• Ammeter
• Industrial motor drive
• Isolated RS485 interface
• Automated heating, ventilation and air conditioning (HVAC) systems

Key features

• 3.3V/5V supply voltage
• Electrostatic protection (ESD): A/B ± 15 kV, in line with the human body mode (HBM) standard
• With 1/8 unit load, the bus allows up to 256 transceivers to be attached
• Supports error- free data transmission up to 500Mbps
• With Fail- safe function
• Adopt SOP8 packaging
