ZHHXDZDatasheet (PDF)

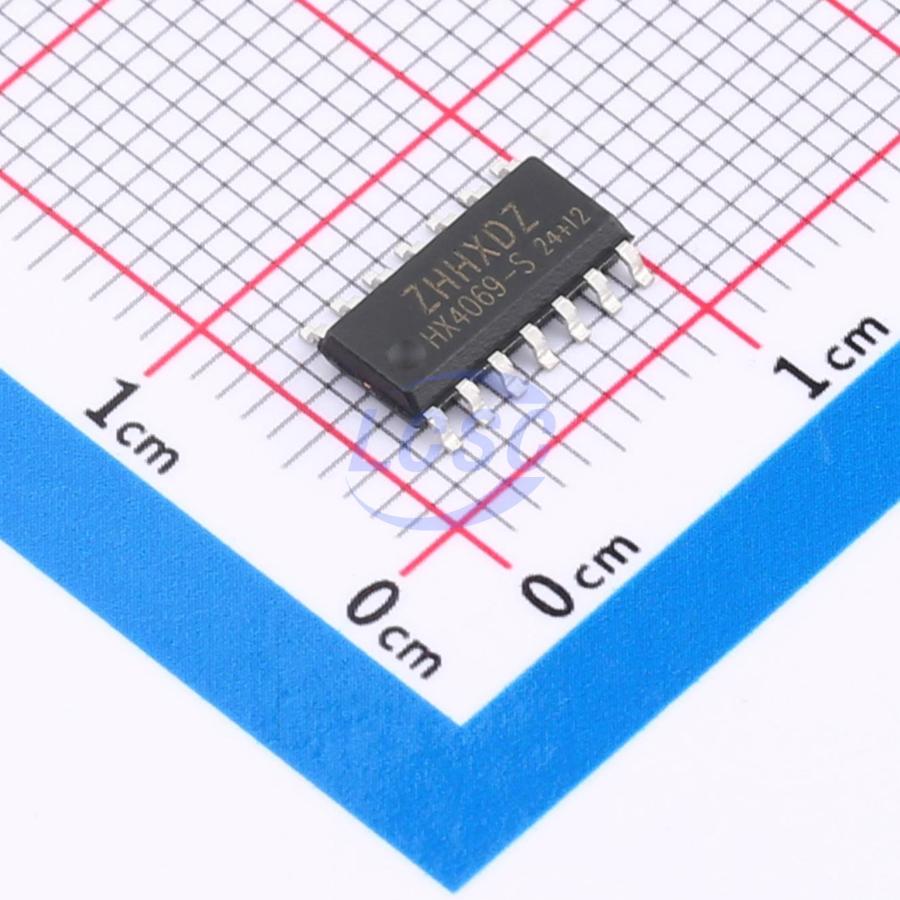

HX4069-S
3V~16V 1uA 6 SOP-14 Gates and Inverters RoHS
SOP-14ROHS CompliantActive
CMOS six-way inverter
- Manufacturer
- ZHHXDZ
- Manufacturer part #
- HX4069-S
- Store part #
- C42431686
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,230 in stock
#C42431686
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.60 | ₹58.00 |
| 50+ | ₹9.17 | ₹458.50 |
| 150+ | ₹7.96 | ₹1,194.00 |
| 500+ | ₹7.05 | ₹3,525.00 |
| 2,500+ | ₹6.32 | ₹15,800.00 |
| 5,000+ | ₹5.95 | ₹29,750.00 |
5 × ₹11.60
₹58.00
excl. GST
₹68.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HX4069-S
₹58.00 for 5 + GST
Specifications
- Voltage - Supply
- 3V~16V
- Output Logic Level - Low
- 0V~50mV
- Propagation Delay
- 35ns@5V,50pF;22ns@10V,50pF;32ns@15V,50pF
- Input Logic Level - Low
- 1V;2V;2.5V
- Input Logic Level - High
- 4V;8V;12.5V
- Operating Temperature
- -20℃~+85℃
- Output Logic Level - High
- 4.95V~5V;9.95V~10V;14.95V~15V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 1.2mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 2.2mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.252 g
Overview
HX4069 - S is composed of six CMOS inverter circuits, this device is mainly used as a general purpose inverter, that is, applied to circuits that do not require power TTL driver and logic level conversion function.
Applications
- Logical reversal oscillator
- High input impedance amplifier
Key features
- Standardized symmetrical output characteristics
- Power supply voltage: 3~16V
- Input voltage: 0~VDD
- Fast output response
- Low static current: IDD < 1μA
