ZHHXDZDatasheet (PDF)

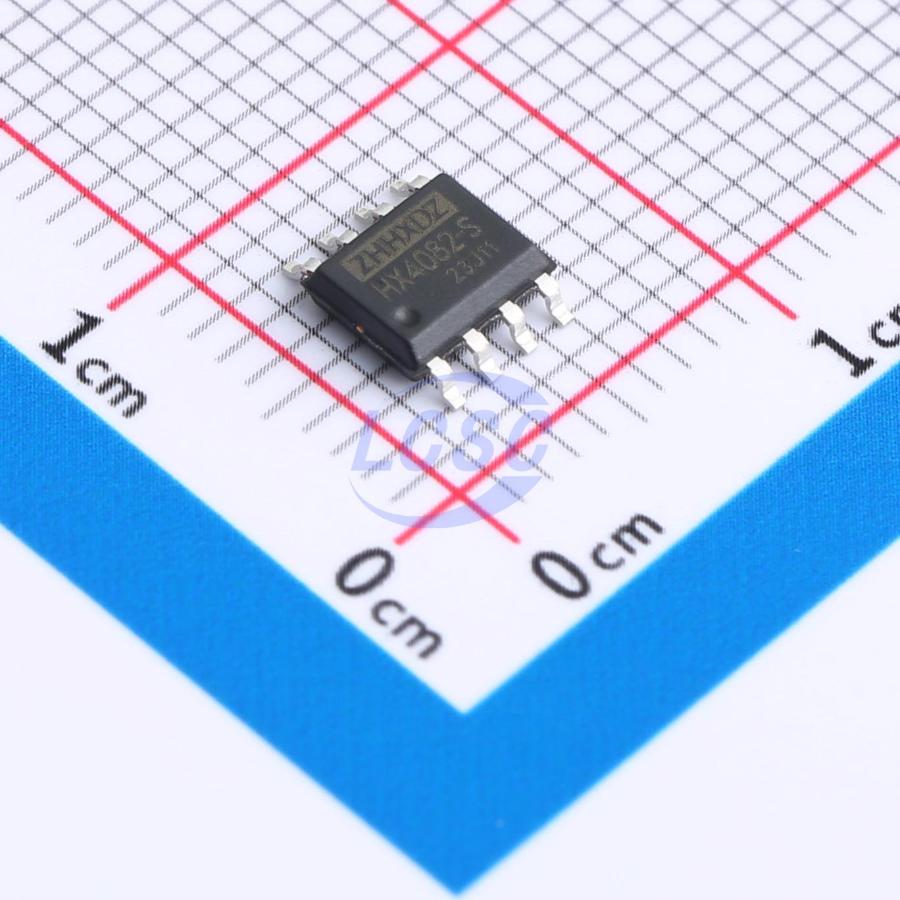

HX4082-S
6V Transceiver 10Mbps 256 SOP-8 Drivers, Receivers, Transceivers RoHS
SOP-8ROHS CompliantActive
RS485/RS-422 Transceivers
- Manufacturer
- ZHHXDZ
- Manufacturer part #
- HX4082-S
- Store part #
- C19186102
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,500 in stock
#C19186102
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.73 | ₹178.65 |
| 50+ | ₹31.21 | ₹1,560.50 |
| 150+ | ₹29.28 | ₹4,392.00 |
| 500+ | ₹26.91 | ₹13,455.00 |
| 2,500+ | ₹25.84 | ₹64,600.00 |
| 5,000+ | ₹25.19 | ₹1,25,950.00 |
5 × ₹35.73
₹178.65
excl. GST
₹210.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HX4082-S
₹178.65 for 5 + GST
Specifications
- Voltage - Supply
- 6V
- Type
- Transceiver
- Data Rate
- 10Mbps
- Number of Nodes
- 256
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown
- Number of Receivers
- 1
- Quiescent Supply Current
- 600uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.209 g
Overview
The HX4082-S is a high-speed RS485/RS-422 transceiver circuit that operates on a +5V power supply with half-duplex functionality. It features one driver and one receiver, achieving transmission speeds of up to 10Mbps. The circuit includes ±15KV ESD protection to safeguard the chip from electrostatic discharge. Both the driver and receiver have enable pins (DE and RE). When these pins are disabled, the output enters a high-resistance state. Additionally, the HX4082-S incorporates a fail-safe circuit that ensures correct output in open or short circuits at the receiver input. The receiver's input impedance is 1/8 unit load, allowing for a maximum of 256 transceivers on the same bus.
Applications
- Industrial control
- RS485/RS422 - interface
- Industrial motor drive
- Electricity meter
- Automated HVAC system
Key features
- Tri state output.
- Electrostatic Discharge (ESD): A/B ± 15KV, compliant with Human Body Mode (HBM) standards.
- The bus allows up to 256 transceivers to be connected.
- Powerful swing rate limitation helps achieve error free data transmission.
- Adopting SOP8 encapsulation.
