ZHHXDZ

HX4093-S

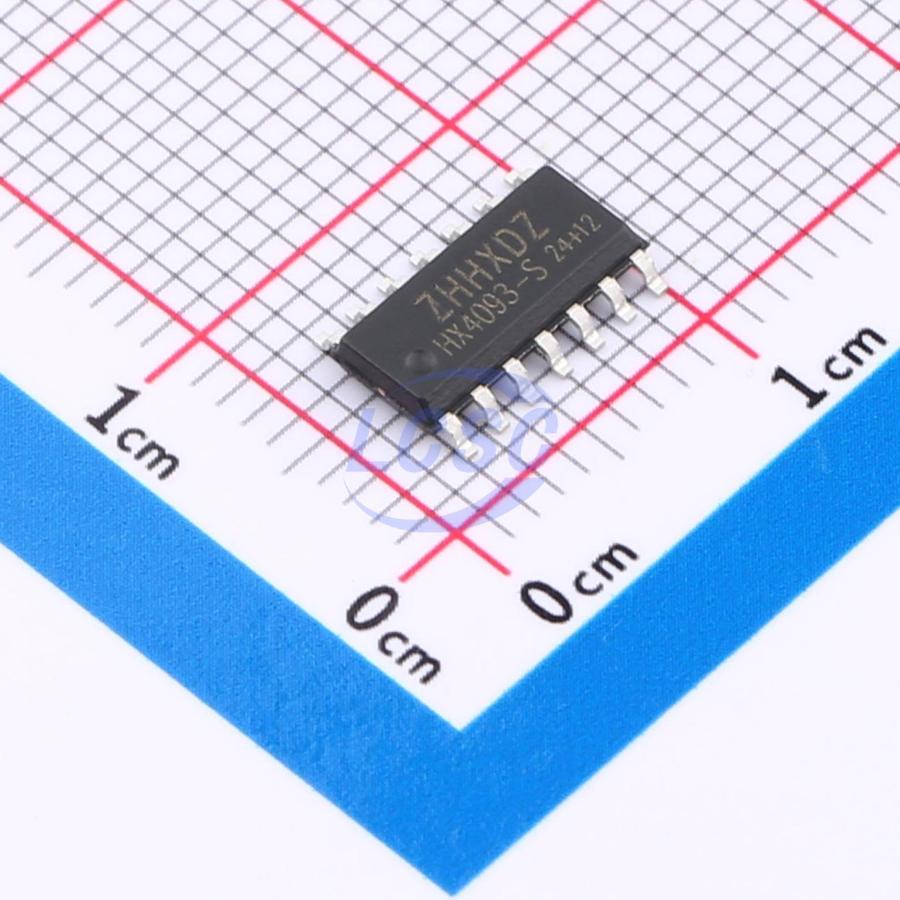

NAND Gate IC 4 Channel Schmitt Trigger SOP-14

SOP-14ROHS CompliantActive

Quad 2-Input Schmitt NAND Gates

Manufacturer: ZHHXDZ
Manufacturer part #: HX4093-S
Store part #: C42431690
Package / case: SOP-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,430 in stock

#C42431690

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
5+	₹10.72	₹53.60
50+	₹8.48	₹424.00
150+	₹7.36	₹1,104.00
500+	₹6.51	₹3,255.00
2,500+	₹5.83	₹14,575.00
5,000+	₹5.50	₹27,500.00

Quantity (min 5, multiples of 5)

5 × ₹10.72

₹53.60

excl. GST

₹63.25 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

HX4093-S

₹53.60 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input Type: Schmitt trigger
Voltage - Supply: 3V~15V
Output Logic Level - Low: 0V~50mV
Propagation Delay: 210ns@5V,50pF;90ns@10V,50pF;110ns@15V,50pF
Operating Temperature: -20℃~+85℃
Output Logic Level - High: 4.95V~5V;9.95V~10V;14.95V~15V
Quiescent Current(Iq): 100nA
Current - Output High(IOH): 20mA
Number of Channels: 4;2
Current - Output Low(IOL): 22mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.253 g

Overview

The HX4093- S is a circuit consisting of four 2- input and non- gates, with Schmidt flip- flops at each input end of each path. The output switches state with the input signal, and the difference between the positive threshold voltage (VP) and the negative threshold voltage (VN) is defined as the hysteresis voltage (VH). It operates at 3V to 15V and unused inputs must be connected to VDD, VSS or other inputs.
