ZHHXDZDatasheet (PDF)

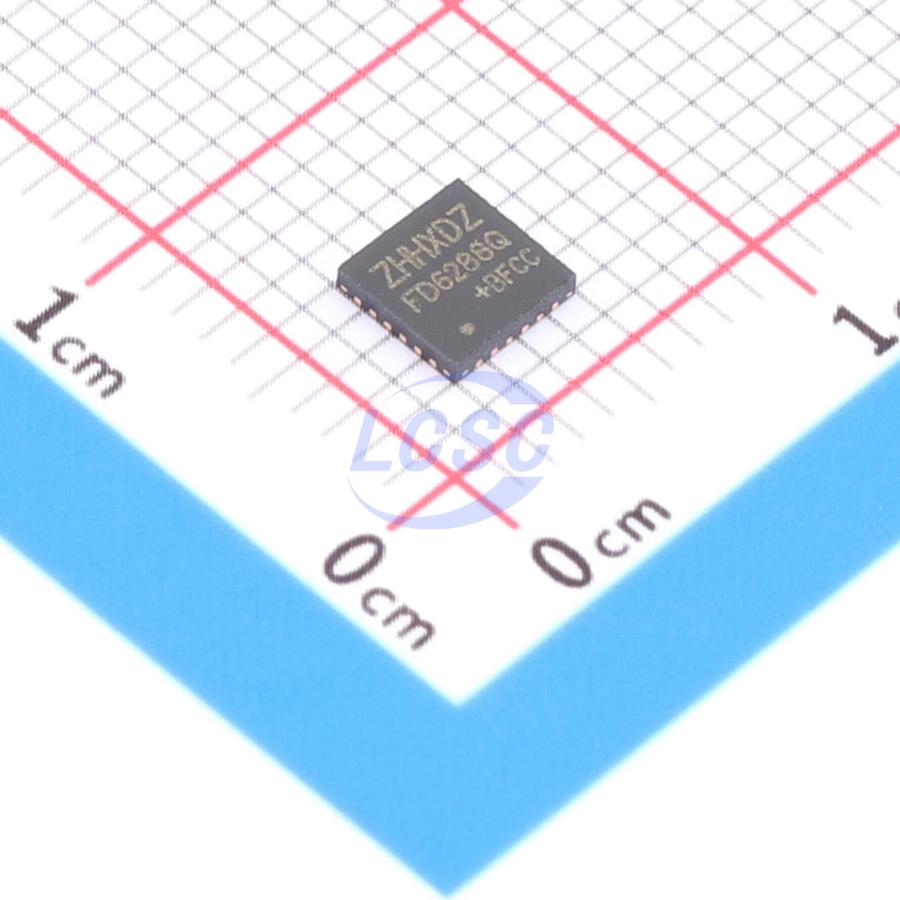

HX6288
5V~20V 2.4A 1.6A QFN-24(4x4) Gate Drivers
QFN-24(4x4)RoHSActive
- Manufacturer
- ZHHXDZ
- Manufacturer part #
- HX6288
- Store part #
- C54423134
- Package / case
- QFN-24(4x4)
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,860 in stock
#C54423134
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹51.65 | ₹258.25 |
| 50+ | ₹40.84 | ₹2,042.00 |
| 150+ | ₹36.20 | ₹5,430.00 |
| 500+ | ₹30.42 | ₹15,210.00 |
| 3,000+ | ₹27.84 | ₹83,520.00 |
| 6,000+ | ₹26.29 | ₹1,57,740.00 |
5 × ₹51.65
₹258.25
excl. GST
₹304.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HX6288
₹258.25 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 320ns
- High Level Delay Time
- 120ns
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 5V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Three Phase
- Current - Output Low(IOL)
- 2.4A
- Rise Time
- 30ns
- Fall Time
- 30ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 1.6A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.135 g
