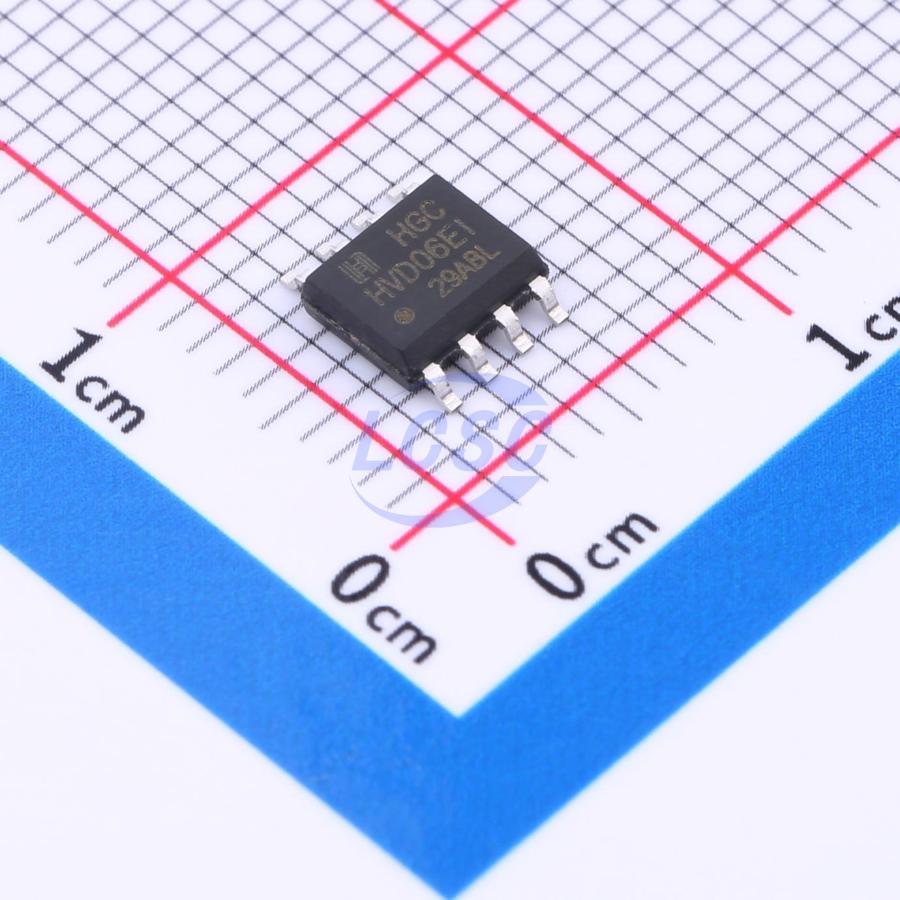

HX65HVD06EIDRG

HX65HVD05, HX75HVD05, HX65HVD06, HX75HVD06, HX65HVD07, and HX75HVD07 combine a three-state differential line driver with a differential line receiver. They are designed for balanced data transmission and are interoperable with devices compliant with ANSI TIA/EIA-485-A and ISO 8482E standards. The driver is designed to provide a higher differential output voltage than required by these standards to increase noise margin. The driver and receiver feature active-high and active-low enable inputs, respectively, which can be connected together externally for use as direction control. The driver differential output and receiver differential input are internally connected to form a differential I/O bus port, which is designed to present a minimum load to the bus when the driver is disabled or unpowered. These devices feature a wide positive and negative common-mode voltage range, making them suitable for multipoint line applications.

Applications

• Data transmission over long-distance, lossy lines, or electrically noisy environments
• Profibus line interface
• Industrial process control networks
• Point-of-sale (POS) networks
• Electric utility metering
• Building automation
• Digital motor control

Key features

• Minimum differential output voltage of 2.5V with 54Ω load
• Open, short, and idle bus fault-safe receiver
• 1/8 unit load option available (up to 256 nodes on bus)
• Bus pin ESD protection exceeding 16kV HBM
• Driver output slew rate control option
• Electrically compatible with ANSI TIA/EIA-485-A standard
• Low-current standby mode…typical 1μA
• Glitch-free power-up and power-down
• Hot-plug application protection
• Pin-compatible with industry-standard SN75176
• Packages: DIP-8, SOP-8
