ZHHXDZDatasheet (PDF)

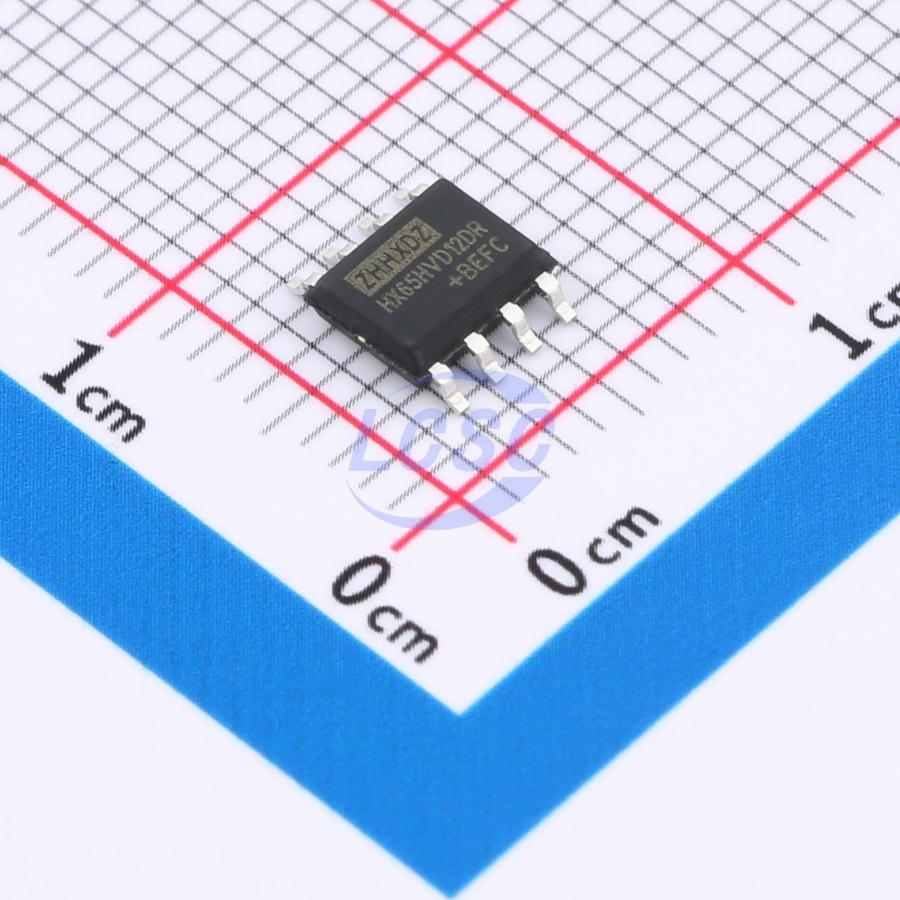

HX65HVD12DR
Transceiver 500Kbps 256 SOP-8 Drivers, Receivers, Transceivers
SOP-8RoHSActive
- Manufacturer
- ZHHXDZ
- Manufacturer part #
- HX65HVD12DR
- Store part #
- C49181127
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,500 in stock
#C49181127
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.14 | ₹120.70 |
| 50+ | ₹21.17 | ₹1,058.50 |
| 150+ | ₹19.90 | ₹2,985.00 |
| 500+ | ₹18.31 | ₹9,155.00 |
| 2,500+ | ₹17.60 | ₹44,000.00 |
| 5,000+ | ₹17.17 | ₹85,850.00 |
5 × ₹24.14
₹120.70
excl. GST
₹142.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HX65HVD12DR
₹120.70 for 5 + GST
Specifications
- Voltage - Supply
- 3.3V;5V
- Type
- Transceiver
- Data Rate
- 500Kbps
- Operating Temperature
- -40℃~+125℃
- Number of Nodes
- 256
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Overcurrent Protection;Thermal shutdown protection;Low-power mode
- Number of Receivers
- 1
- Quiescent Supply Current
- 600uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.177 g
Overview
Applications
- Industrial Control
- Electric Meters
- Industrial Motor Drives
- Automated HVAC Systems
- Isolated RS485 Interface
Key features
- 3.3V/5V supply voltage
- ESD protection: A/B ±15kV, compliant with HBM standard
- 1/8 unit load; bus supports up to 256 transceivers
- Error-free data transmission up to 500kbps
- Fail-safe feature
- SOP8 and PDIP8 packages
