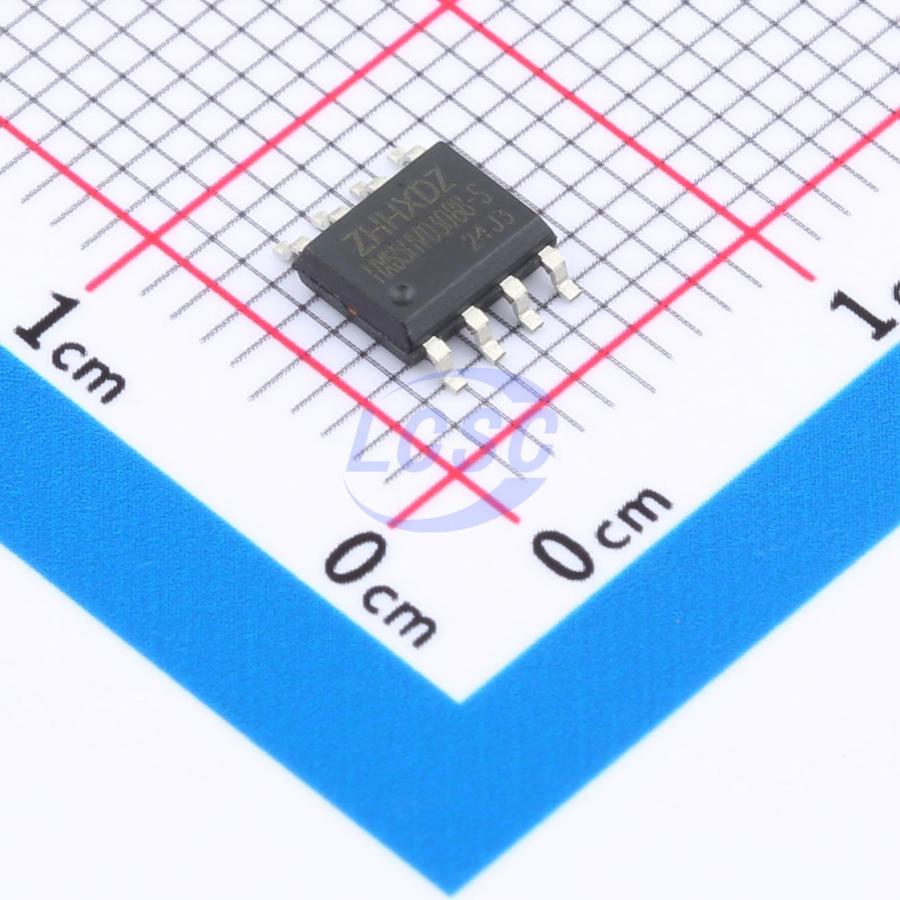

HX65HVD3088-S
1/1 Transceiver Half RS422, RS485 SOP-8
SOP-8ROHS CompliantActive
IC TRANSCEIVER HALF 1/1 SOP-8
- Manufacturer
- ZHHXDZ
- Manufacturer part #
- HX65HVD3088-S
- Store part #
- C20625119
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,840 in stock
#C20625119
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.02 | ₹100.10 |
| 50+ | ₹17.49 | ₹874.50 |
| 150+ | ₹16.39 | ₹2,458.50 |
| 500+ | ₹15.04 | ₹7,520.00 |
| 2,500+ | ₹14.43 | ₹36,075.00 |
| 5,000+ | ₹14.08 | ₹70,400.00 |
5 × ₹20.02
₹100.10
excl. GST
₹118.12 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HX65HVD3088-S
₹100.10 for 5 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- Transceiver
- Data Rate
- 10Mbps
- Number of Nodes
- 256
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown
- Number of Receivers
- 1
- Quiescent Supply Current
- 600uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.214 g
Overview
HX65HVD3088-S is a high-speed RS485/RS-422 transceiver circuit supporting +5V supply with half-duplex functionality. It integrates one driver and one receiver, capable of achieving data transfer rates up to 10Mbps. The circuit features ±15KV ESD protection to effectively prevent electrostatic discharge damage to the chip. Both the driver and receiver are equipped with enable pins (DE and RE); when the enable pins are deasserted, the driver and receiver outputs enter a high-impedance state. In addition, the device includes a failsafe circuit that ensures correct output when the receiver inputs are open or short-circuited. The receiver input impedance is 1/8 unit load, allowing up to 256 transceivers to be connected on the same bus.
Applications
- Industrial Control
- RS485/RS422 Interface
- Industrial Motor Drive
- Automated HVAC Systems
Key features
- Three-state outputs
- ESD protection: A/B ±15KV, HBM compliant
- Bus supports up to 256 transceivers
- Maximum data rate 10 Mbps
- SOP8 package
