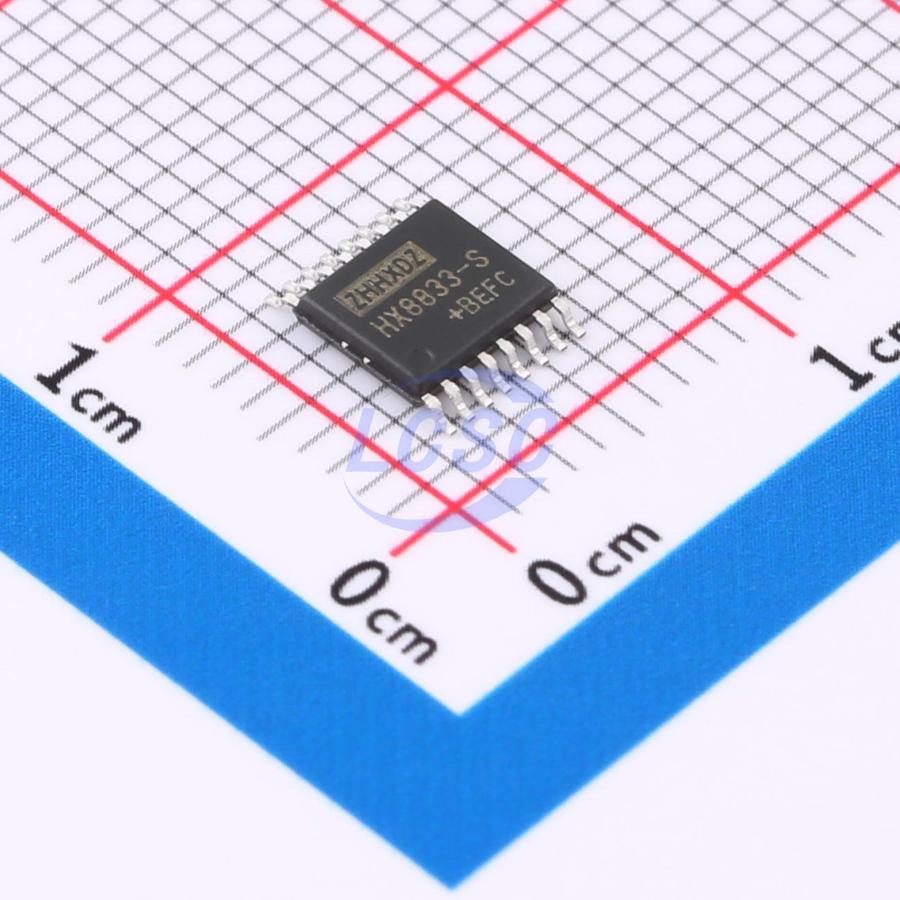

HX8833-S
TSSOP-16 Motor Drivers, Controllers
- Manufacturer
- ZHHXDZ
- Manufacturer part #
- HX8833-S
- Store part #
- C49339813
- Package / case
- TSSOP-16
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,920 in stock
#C49339813
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.28 | ₹151.40 |
| 50+ | ₹26.58 | ₹1,329.00 |
| 150+ | ₹24.99 | ₹3,748.50 |
| 500+ | ₹23.02 | ₹11,510.00 |
| 3,000+ | ₹22.13 | ₹66,390.00 |
| 6,000+ | ₹21.60 | ₹1,29,600.00 |
5 × ₹30.28
₹151.40
excl. GST
₹178.65 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HX8833-S
₹151.40 for 5 + GST
Specifications
- Drive Type
- Bipolar Driver
- Number of H-bridges
- 2
- Features
- Overcurrent Protection;Over temperature protection;Under-voltage lockout;Dead-time / shoot-through protection
- Technology
- Yes
- Operating Temperature
- -40℃~+125℃
- Output Current
- 800mA
- RDS(on)
- 800mΩ
- Motor Drive Voltage(Vm)
- 2.7V~14V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.155 g
Overview
HX8833-S is a dual-bridge motor driver for toys, printers, and mechatronic equipment. It uses an H-bridge configuration built with N-channel power MOSFETs to drive two brushed DC motors, one bipolar stepper motor, solenoids, or inductive loads, with integrated current regulation. Safety features include overcurrent, short-circuit, and overtemperature protection via internal shutdown and a fault output pin. A low-power sleep mode improves energy efficiency. The device is available in a 16-pin TSSOP package with Power PAD technology.
Applications
- Battery-powered toys
- POS printers
- Video security cameras
- Office automation equipment
- Gaming consoles
Key features
- Dual H-bridge current-control motor driver for two DC motors or one stepper motor
- Low MOSFET on-resistance: HS + LS = 800 mΩ
- Output current (at VM = 5V, 25°C) — 0.8A RMS, 1.2A peak per H-bridge in PWP package option
- Parallel output capability — 1.6A RMS, 2.4A peak (PWP package)
- Wide supply voltage range: 2.7V to 15V
- PWM winding current regulation and current limiting
- Thermally enhanced SMT package
