InfineonDatasheet (PDF)

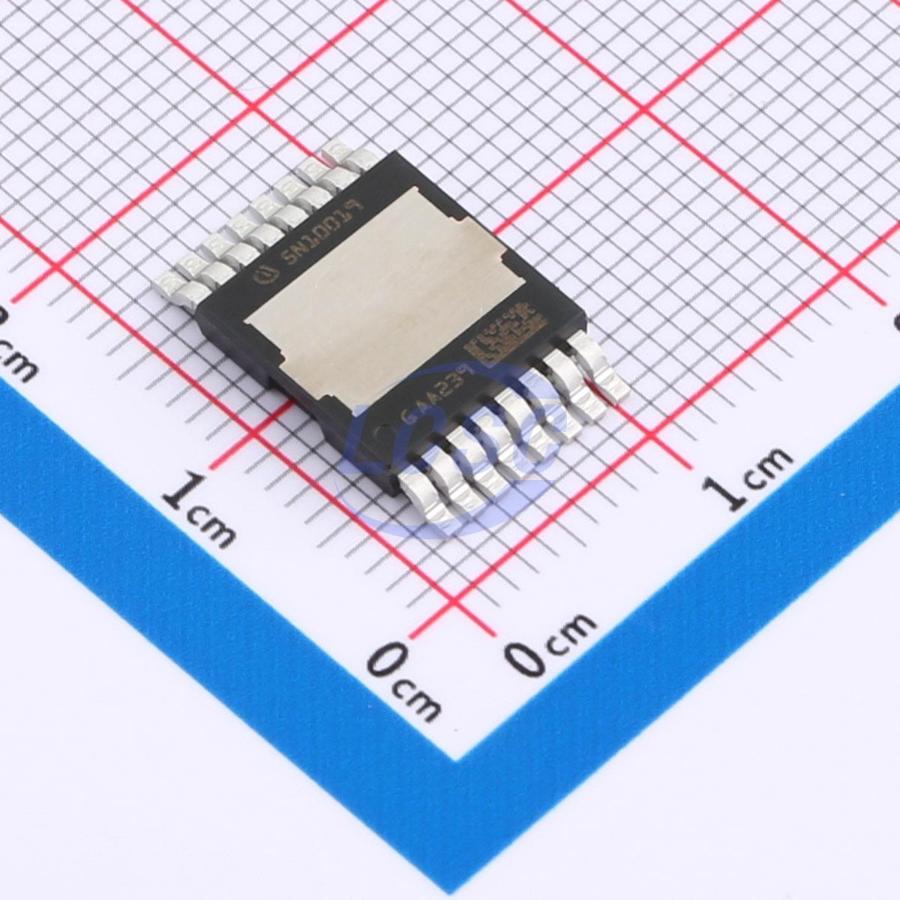

IAUS260N10S5N019TATMA1
100V 260A 300W 1.9mΩ@10V 1 N-channel N-Channel HDSOP-16 Single FETs, MOSFETs RoHS
HDSOP-16ROHS3 CompliantActive
MOSFET N-CH 100V 260A HDSOP-16
- Manufacturer
- Infineon
- Manufacturer part #
- IAUS260N10S5N019TATMA1
- Store part #
- C3278526
- Package / case
- HDSOP-16
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19 in stock
#C3278526
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹681.89 | ₹681.89 |
| 10+ | ₹581.27 | ₹5,812.70 |
| 30+ | ₹519.78 | ₹15,593.40 |
| 100+ | ₹468.50 | ₹46,850.00 |
1 × ₹681.89
₹681.89
excl. GST
₹804.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
IAUS260N10S5N019TATMA1
₹681.89 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 1.801nF
- Current - Continuous Drain(Id)
- 260A
- Ciss-Input Capacitance
- 11.83nF
- Pd - Power Dissipation
- 300W
- Reverse Transfer Capacitance (Crss)
- 92pF
- RDS(on)
- 1.9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 166nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.8V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.68 g
Overview
Key features
- OptiMOS power MOSFET for automotive applications
- N-channel - Enhancement mode - Normal level
- Extended qualification beyond AEC-Q101
- Enhanced electrical testing
- Robust design
- MSL1 up to 260°C peak reflow temperature
- 175°C operating temperature
- Green product (RoHS compliant)
- 100% avalanche tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPTC019N10NM5ATMA1#C3278522Infineon · HDSOP-16 | Infineon | HDSOP-16 | 22 | ₹583.88 · 22 in stock | View |
 | IPTC015N10NM5ATMA1#C3278524Infineon · HDSOP-16 | Infineon | HDSOP-16 | 1 | ₹795.76 · 1 in stock | View |
 | IPTC020N13NM6ATMA1#C22408422Infineon · HDSOP-16 | Infineon | HDSOP-16 | 10 | ₹1,460.08 · 10 in stock | View |
 | IAUS300N10S5N015TATMA1#C3288751Infineon · HDSOP-16 | Infineon | HDSOP-16 | 4 | ₹829.92 · 4 in stock | View |
 | IPTC017N12NM6ATMA1#C17701797Infineon · HDSOP-16 | Infineon | HDSOP-16 | 4 | ₹1,224.57 · 4 in stock | View |
