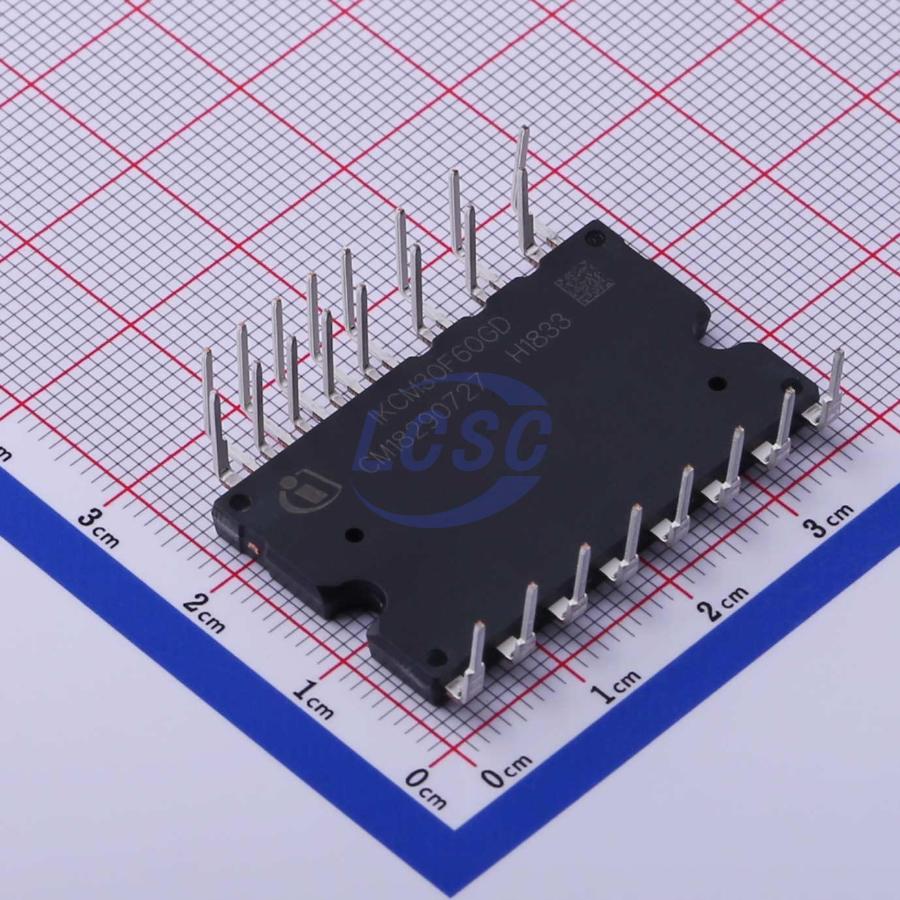

IKCM30F60GD
14.5V~18.5V 20kHz Through Hole Motor Drivers, Controllers RoHS
Control Integrated Power System
- Manufacturer
- Infineon
- Manufacturer part #
- IKCM30F60GD
- Store part #
- C476130
- Package / case
- Through Hole
- Category
- Motor Drivers, Controllers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,928 in stock
#C476130
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,735.05 | ₹1,735.05 |
| 10+ | ₹1,587.03 | ₹15,870.30 |
| 28+ | ₹1,435.98 | ₹40,207.44 |
| 98+ | ₹1,304.05 | ₹1,27,796.90 |
1 × ₹1,735.05
₹1,735.05
excl. GST
₹2,047.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 14 per tube
IKCM30F60GD
₹1,735.05 for 1 + GST
Specifications
- Features
- Overcurrent Protection;Thermal Protection;Undervoltage lockout with hysteresis;Short-Circuit Protection
- Voltage - Supply
- 14.5V~18.5V
- Type
- IGBT
- Pd - Power Dissipation
- 79.1W
- Operating Temperature
- -40℃~+150℃
- High-side Bias Voltage(Vbs)
- 13.5V~18.5V
- Configuration
- Three-phase bridge
- Supply Current (Iq)
- 300uA;370uA
- Voltage - Isolation
- 2000Vrms
- Frequency - Switching
- 20kHz
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 14 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 11.657 g
Overview
The CIPOS™ module family offers the chance for integrating various power and control components to increase reliability, optimize PCB size and system costs. It is designed to control three phase AC motors and permanent magnet motors in variable speed drives for applications like an air conditioning, a refrigerator and a washing machine. The package concept is specially adapted to power applications, which need good thermal conduction and electrical isolation, but also EMI-save control and overload protection. TRENCHSTOP™ IGBTs and anti parallel diodes are combined with an optimized SOI gate driver for excellent electrical performance.
Applications
- Home appliances
- Low power motor drives
Key features
- Fully isolated Dual In-Line molded module
- TRENCHSTOP™ IGBTs
- Rugged SOI gate driver technology with stability against transient and negative voltage
- Allowable negative VS potential up to -11V for signal transmission at VBS=15V
- Integrated bootstrap functionality
- Over current shutdown
- Temperature monitor
- Under-voltage lockout at all channels
- Low side emitter pins accessible for all phase current monitoring (open emitter)
- Cross-conduction prevention
- All of 6 switches turn off during protection
- Lead-free terminal plating; RoHS compliant
- Very low thermal resistance due to DCB
