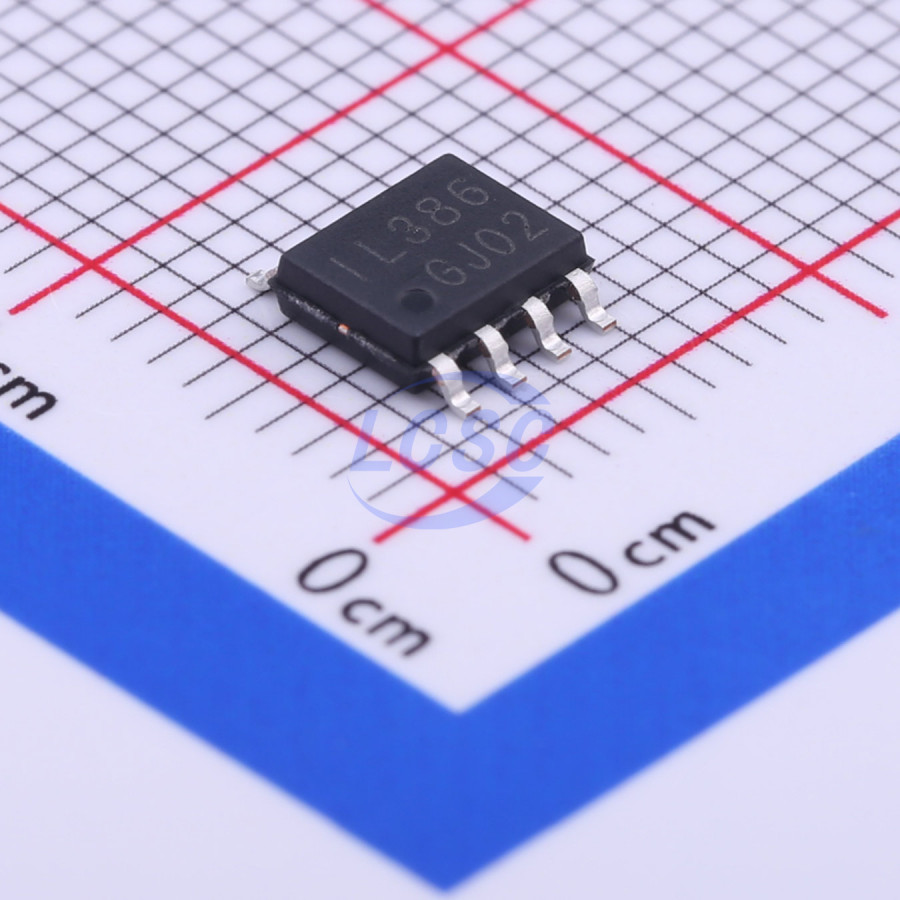

IL386DT
8mA 4V~12V 1-Channel 325mWx1@8Ω SO-8 Audio Amplifiers
Low Voltage Audio Power AMP
- Manufacturer
- IKSEMICON
- Manufacturer part #
- IL386DT
- Store part #
- C412485
- Package / case
- SO-8
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,242 in stock
#C412485
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹22.97 | ₹22.97 |
| 10+ | ₹20.32 | ₹203.20 |
| 30+ | ₹19.20 | ₹576.00 |
| 100+ | ₹17.78 | ₹1,778.00 |
| 500+ | ₹17.16 | ₹8,580.00 |
| 1,000+ | ₹16.78 | ₹16,780.00 |
1 × ₹22.97
₹22.97
excl. GST
₹27.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IL386DT
₹22.97 for 1 + GST
Specifications
- Quiescent Current
- 8mA
- Voltage - Supply
- 4V~12V
- Operating Temperature
- 0℃~+70℃
- Speaker Channels
- 1-Channel
- Output Power
- 325mWx1@8Ω
- Power Supply Rejection Ratio (PSRR)
- 45dB
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.202 g
Overview
The IL386 is a power amplifier designed for use in low voltage consumer applications. The gain is internally set to 20 to keep external part count low, but the addition of an external resistor and capacitor between pins 1 and 8 will increase the gain to any value up to 200. The inputs are ground referenced while the output is automatically biased to one half the supply voltage. The quiescent power drain is only 24 mW when operating from a 6 volt supply, making the IL386 ideal for battery operation.
Key features
- Battery Operation
- Minimum External Parts
- Wide Supply Voltage Range: 4 V - 12 V
- Low Quiescent Current Drain: 4 mA
- Voltage Gains from 20 to 200
- Ground Referenced Input
- Self-Centering Output Quiescent Voltage
- Low Distortion
- Eight Pin Dual-In-Line Package
