ILA82C251DT-BF

The ILA82C251 is the interface between the CAN protocol controller and the physical bus. The device provides differential transmit capability to the bus and differential receive capability to the CAN controller. The IC is intended for automotive electronic applications. The INA82C251 provides differential transmit capability to the bus and differential receive capability to the CAN controller. Data transfer rate is up to 1 Mbit/s. Output stage has good load capacity. It guarantees 2V peak-to-peak output voltage for 60Ω load. ILA82C251D has thermal and short circuit protection, high immunity to EMI and is fully compatible with the “ISO 11898-24 V” standard. The IC provides three operation modes: high-speed, reduced RFI mode, standby mode. The design of ILA82C251D permits possibility of adjustment of rise and fall slope of output stages (transistors).

Applications

• automotive electronic applications

Key features

• Fully compatible with the “ISO 11898-24 V” standard
• Thermally protected
• Short-circuit proof
• Three mode operation
• An unpowered node does not disturb the bus lines
• At least 110 nodes can be connected
• High speed of data transfer (up to 1 Mbit/s)
• High immunity against electromagnetic interference
• Permissible value of electrostatic potential is 2000V

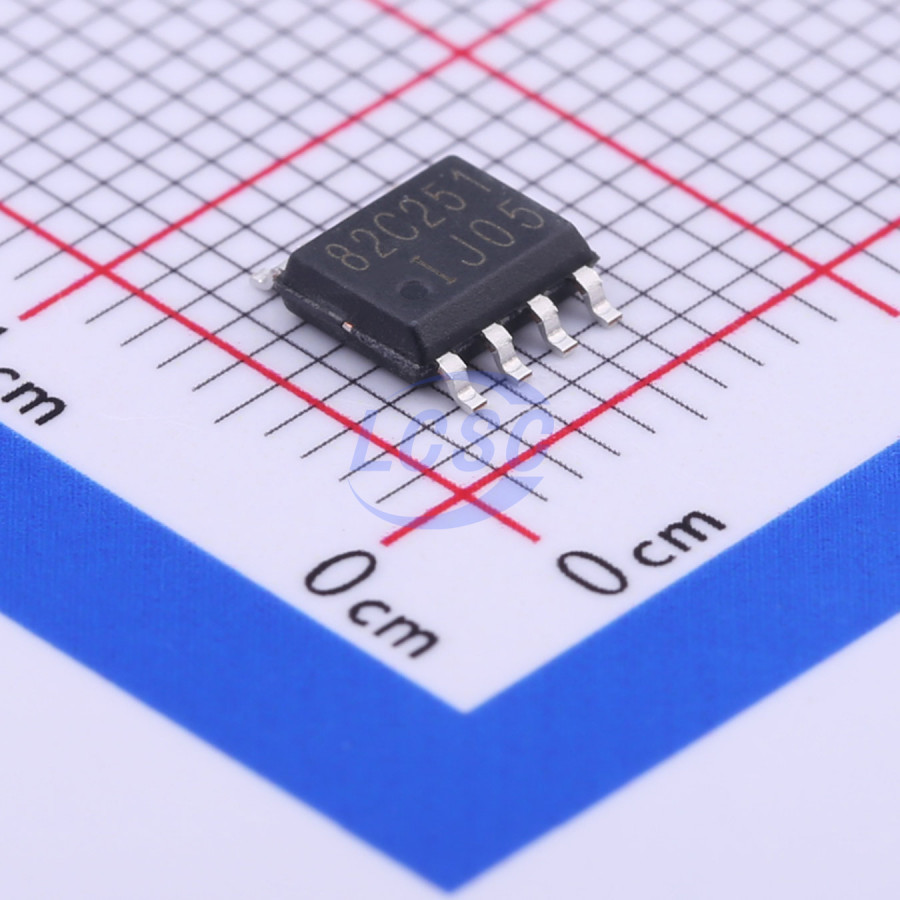

• The IC is realized in SOP - 8 package (MS-012AA)
