IKSEMICONDatasheet (PDF)

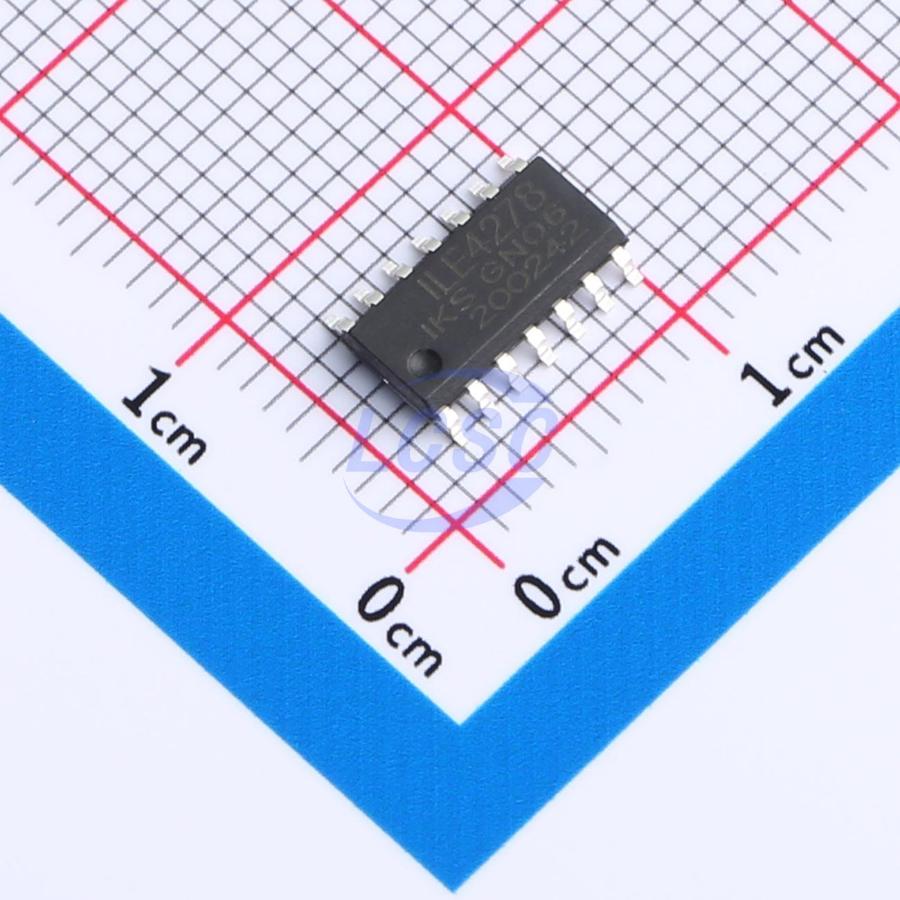

ILE4278DT
5V Positive Fixed PDSOP-14 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
PDSOP-14RoHSActive
5V Low-Drop Fixed Voltage Regulator
- Manufacturer
- IKSEMICON
- Manufacturer part #
- ILE4278DT
- Store part #
- C19725825
- Package / case
- PDSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,500 in stock
#C19725825
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹181.76 | ₹181.76 |
| 10+ | ₹152.49 | ₹1,524.90 |
| 30+ | ₹136.24 | ₹4,087.20 |
| 100+ | ₹117.99 | ₹11,799.00 |
| 500+ | ₹109.86 | ₹54,930.00 |
| 1,000+ | ₹106.24 | ₹1,06,240.00 |
1 × ₹181.76
₹181.76
excl. GST
₹214.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ILE4278DT
₹181.76 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 200uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 45V
- Output Type
- Fixed
- Features
- Reset function;Watchdog timer;Thermal shutdown;Reverse polarity voltage protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.348 g
Overview
The ILE4278 is designed to create 5V constant voltage and can provide the load current up to 200mA. The drop voltage of the IC is not more than 0.5V at 150mA load current. The IC is designed to supply microprocessor systems under the severe conditions of automotive applications and therefore equipped with additional protection functions against over load and over temperature. Furthermore, the ILE4278 can also be used in other applications where a stabilized voltage is required.
Key features
- The input voltage range from 5.7V to 45V
- The accuracy of the output voltage ±2% in the range of output currents from 1mA to 150mA and the input voltages from 6 to 28V
- The accuracy of the output voltage ±4% in the range of output currents from 1mA to 50mA and the input voltages from 28V to 45V
- Low current consumption
- Low drop voltage
- Reset function
- Watchdog microcontroller function
- Separated reset and watchdog outputs
- Adjustable watchdog function activation threshold
- Adjustable reset threshold
- Built-in thermal protection
- Reverse polarity protection
- Compatible with automotive electronic circuits
- AEC-Q100 Qualified
- ESD protection: HBM ±8,000V/ MM ±400V/ CDM ±2,000V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLE4278G#C539729Infineon · DSO-14 | Infineon | DSO-14 | On request | Price on request | Quote |
| TLE4262GMXUMA1-IR#C3743632Infineon · DSO-14 | Infineon | DSO-14 | On request | Price on request | Quote | |
| TLE4699GM#C539772Infineon · DSO-14 | Infineon | DSO-14 | On request | Price on request | Quote | |
| TLE7279-2GV50#C3747949Infineon · DSO-14 | Infineon | DSO-14 | On request | Price on request | Quote | |
| TLE7278-2G#C3749317Infineon · DSO-14 | Infineon | DSO-14 | On request | Price on request | Quote | |
